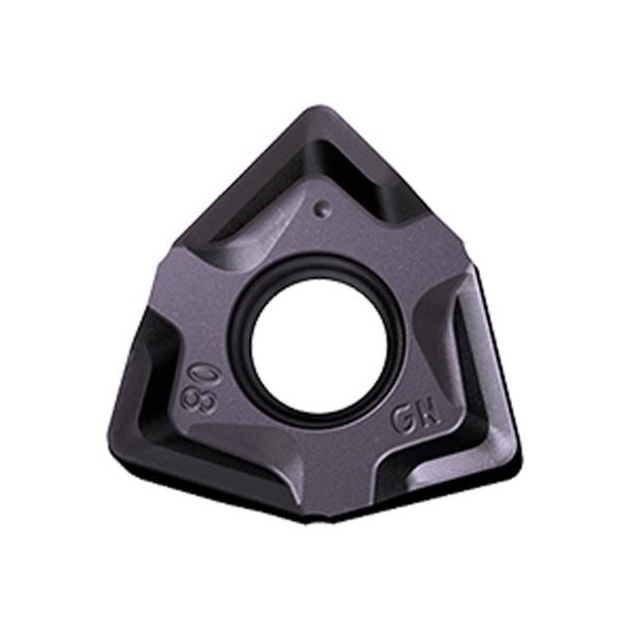

YG1-12001044 – WNEX040312R-GN-YG612/WNEX040312R-GN – Indexable Milling Insert

Original price was: $33.72.Current price is: $23.10.

WNEX040312R-GN-YG612/WNEX040312R-GN — YG-1 Indexable Milling Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-12001044 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	12001044
Description	WNEX040312R-GN-YG612/WNEX040312R-GN
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	WNEX
ANSI Code	WNEX040312R-GN
ISO Code	WNEX040312R-GN
ANSI	ISO
Shape	Trigon
# of Cutting Edges	6
Depth of Cut	7
Clearance Angle	0°
IC Tolerance (± inch)	0.001
IC Tolerance (± mm)	0.025
Height Tolerance (± inch)	0.0031
Height Tolerance (± mm)	0.08
Thickness Tolerance (± inch)	0.001
Thickness Tolerance (± mm)	0.025
Insert Type	With Screw hole, chipbreaker on both sides
Insert IC (inch)	0.276
Insert IC (mm)	7.01
Thickness (in)	0.142
Thickness (mm)	3.607
Corner Radius (in)	0.047
Corner Radius (mm)	1.1938
Edge Length (in)	0.051
Edge Length (mm)	1.295
Cutting Edge Lgth (in)	0.157
Cutting Edge Lgth (mm)	3.9878
Insert Diam (in)	0.276
Insert Diam (mm)	7.01
Chipbreaker Geometry	GN
Chipbreaker Application	General Application
Cutting Edge Angle	90°
Edge Condition	Round
Feed Direction	Right hand Insert
Wiper Edge Length	0.051
Grade	YG612
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	MILLING INSERT
Application	Steel, Stainless Steel, Super Alloy
System of Measurement	Inch
Application code	P,M,S

Specialized Multi-Nano Coated Grade with high wear resistance and chipping resistance. Special Multi-Nano coating prevent crack and providing predictible tool life. Special universal Grade can acheive stable tool life in any workpiece.
