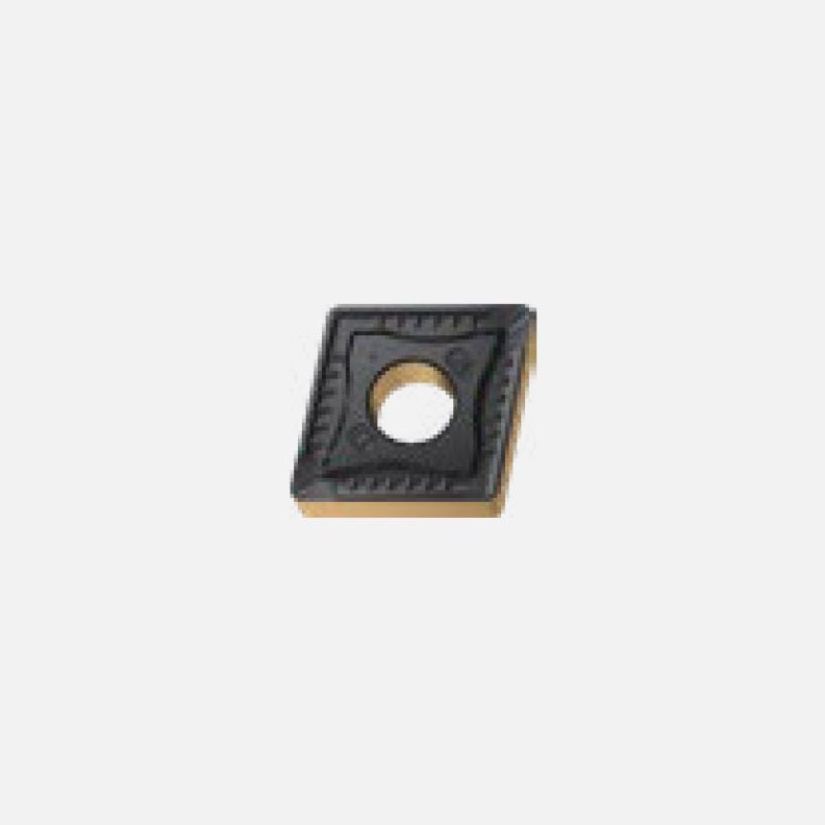

YG1-22002727 – CNMG120404-MF-YG3115/CNMG431-MF – Indexable Turning Insert

Original price was: $21.71.Current price is: $14.90.

CNMG120404-MF-YG3115/CNMG431-MF — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22002727 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22002727
Description	CNMG120404-MF-YG3115/CNMG431-MF
Size/Dimension	CNMG120404-MF-YG3115/CNMG431-MF
Material	Carbide
Series	CNMG, CNMG43
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	CNMG
ANSI Code	CNMG431-MF
ISO Code	CNMG120404-MF
ANSI	ANSI
Shape	Rhombic 80°
# of Cutting Edges	4
Depth of Cut	1.5
Clearance Angle	0°
IC Tolerance (± inch)	0.003
IC Tolerance (± mm)	0.076
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.5
Insert IC (mm)	12.7
Thickness (in)	0.1875
Thickness (mm)	4.762
Corner Radius (in)	0.0156
Corner Radius (mm)	0.397
Edge Length (in)	0.472
Edge Length (mm)	11.989
Chipbreaker Geometry	MF
Chipbreaker Application	Stainless Steel Finishing
Wiper Edge Clearance	0°
Grade	YG3115
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING NEGATIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

First choice grade for high cutting speed in Steels. Suitable for mass production due to stable and predictable tool life. Minimizing built up edge due to new post surface treatment in mild steels, low carbon steel and low carbon alloy steel. Best choice for both continuous as well as interrupted cuts.
