Sale!

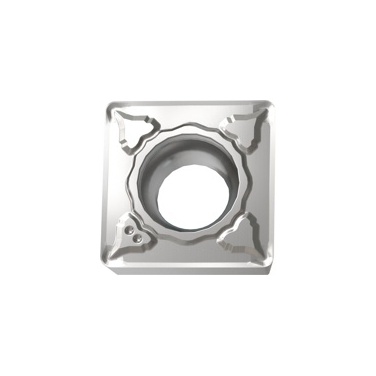

YG1-22002927 – SCMT09T312-PM-YG3115/SCMT32.53-PM – Indexable Turning Insert

Original price was: $23.65.Current price is: $16.20.

SCMT09T312-PM-YG3115/SCMT32.53-PM — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22002927 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22002927
Description	SCMT09T312-PM-YG3115/SCMT32.53-PM
Size/Dimension	SCMT09T312-PM-YG3115/SCMT32.53-PM
Material	Carbide
Series	SCMT, SCMT32.5
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	SCMT
ANSI Code	SCMT32.53-PM
ISO Code	SCMT09T312-PM
ANSI	ANSI
Shape	Square
# of Cutting Edges	4
Clearance Angle	7°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With Screw hole, chipbreaker on one side only
Insert IC (inch)	0.375
Insert IC (mm)	9.525
Thickness (in)	0.125
Thickness (mm)	3.175
Corner Radius (in)	0.0469
Corner Radius (mm)	1.191
Chipbreaker Geometry	PM
Chipbreaker Application	Steel Medium (First Choice)
Wiper Edge Clearance	7°
Grade	YG3115
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING POSITIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

First choice grade for high cutting speed in Steels. Suitable for mass production due to stable and predictable tool life. Minimizing built up edge due to new post surface treatment in mild steels, low carbon steel and low carbon alloy steel. • Best choice for both continuous as well as interrupted cuts.

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.

Brand

YG1
