Sale!

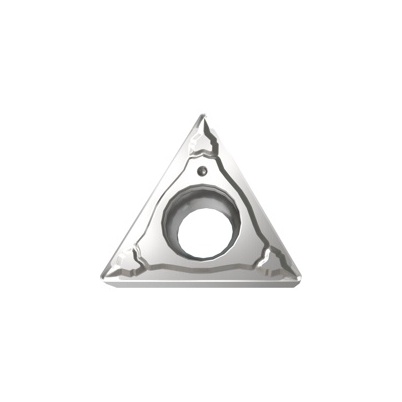

YG1-22002932 – TCMT110208-PM-YG3115/TCMT21.52-PM – Indexable Turning Insert

Original price was: $18.03.Current price is: $12.35.

TCMT110208-PM-YG3115/TCMT21.52-PM — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22002932 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22002932
Description	TCMT110208-PM-YG3115/TCMT21.52-PM
Size/Dimension	TCMT110208-PM-YG3115/TCMT21.52-PM
Material	Carbide
Series	TCMT, TCMT21.5
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	TCMT
ANSI Code	TCMT21.52-PM
ISO Code	TCMT110208-PM
ANSI	ANSI
Shape	Triangular
# of Cutting Edges	3
Clearance Angle	7°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With Screw hole, chipbreaker on one side only
Insert IC (inch)	0.25
Insert IC (mm)	6.35
Thickness (in)	0.0625
Thickness (mm)	1.587
Corner Radius (in)	0.0312
Corner Radius (mm)	0.794
Edge Length (in)	0.406
Edge Length (mm)	10.3124
Chipbreaker Geometry	PM
Chipbreaker Application	Steel Medium (First Choice)
Wiper Edge Clearance	7°
Grade	YG3115
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING POSITIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

First choice grade for high cutting speed in Steels. Suitable for mass production due to stable and predictable tool life. Minimizing built up edge due to new post surface treatment in mild steels, low carbon steel and low carbon alloy steel. • Best choice for both continuous as well as interrupted cuts.

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.

Brand

YG1

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
