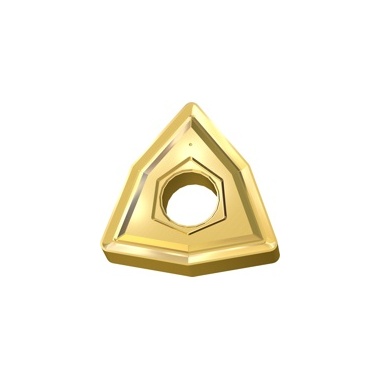

YG1-22003186 – WNMG080408-UC-YG3125/WNMG432-UC – Indexable Turning Insert

Original price was: $22.98.Current price is: $15.75.

WNMG080408-UC-YG3125/WNMG432-UC — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22003186 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22003186
Description	WNMG080408-UC-YG3125/WNMG432-UC
Size/Dimension	WNMG080408-UC-YG3125/WNMG432-UC
Material	Carbide
Series	WNMG, WNMG43
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	WNMG
ANSI Code	WNMG432-UC
ISO Code	WNMG080408-UC
ANSI	ANSI
Shape	Trigon
# of Cutting Edges	6
Depth of Cut	1.5
Clearance Angle	0°
IC Tolerance (± inch)	0.003
IC Tolerance (± mm)	0.076
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.5
Insert IC (mm)	12.7
Thickness (in)	0.1874
Thickness (mm)	4.76
Corner Radius (in)	0.0315
Corner Radius (mm)	0.8
Edge Length (in)	0.3071
Edge Length (mm)	7.8
Chipbreaker Geometry	UC
Chipbreaker Application	Medium Roughing and first choice for cast
Wiper Edge Clearance	0°
Feed rate	.008-.016
Grade	YG3125
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING NEGATIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

Recommended first grade for steel. New substrates with a unique combination of good toughness and plastic deformation resistance. General Machining on steel.
