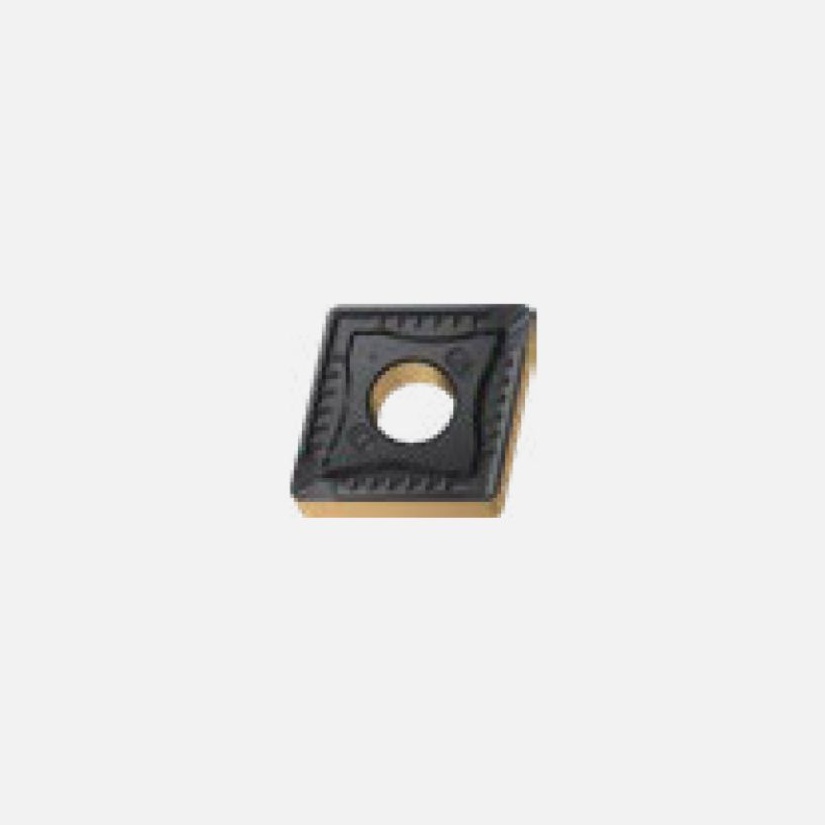

YG1-22003360 – CNMG090412-UL-YG3125/CNMG333-UL – Indexable Turning Insert

Original price was: $16.34.Current price is: $11.20.

CNMG090412-UL-YG3125/CNMG333-UL — YG-1 Indexable Turning Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-22003360 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	22003360
Description	CNMG090412-UL-YG3125/CNMG333-UL
Size/Dimension	CNMG090412-UL-YG3125/CNMG333-UL
Material	Carbide
Series	CNMG, CNMG33
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	CNMG
ANSI Code	CNMG333-UL
ISO Code	CNMG090412-UL
ANSI	ANSI
Shape	Rhombic 80°
# of Cutting Edges	4
Depth of Cut	2.5
Clearance Angle	0°
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.005
Height Tolerance (± mm)	0.127
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With clamping hole, chipbreaker on both sides
Insert IC (inch)	0.375
Insert IC (mm)	9.525
Thickness (in)	0.1874
Thickness (mm)	4.76
Corner Radius (in)	0.0472
Corner Radius (mm)	1.2
Edge Length (in)	0.3169
Edge Length (mm)	8.05
Chipbreaker Geometry	UL
Chipbreaker Application	Semi Finishing and sticky material
Wiper Edge Clearance	0°
Grade	YG3125
Material	Carbide
Coating Process	CVD
Coating	TiCN-Al2O3
Type	TURNING NEGATIVE INSERT
Application	Steel
System of Measurement	Inch
Application code	P

Recommended first grade for steel. New substrates with a unique combination of good toughness and plastic deformation resistance. General Machining on steel.
