YG-1 YG Indexable — SYMX-10T308 X-Drill Holder

YG1-37001295 – Ygsy5-1.312S1.50-10I

Original price was: $773.95.Current price is: $712.90.

Indexable Cutter Bodies and Accessories

EDP No.	37001295
Description	YGSY5-1.312S1.50-10I
Size
Available Qty.	Call for availability

Specifications

SERIES	SYMX10T308
DC Inch	1.312
DC Metric	33.325
LU Inch	6.56
LU Metric	166.624
DESIGNATION	YGSY5-1.312S1.25-10I
LF Inch	7.426
LF Metric	188.62
OAL inch	10.676
OAL Metric	271.17
DCON	1.25
DCSFMS	1.625
LS	3.25
Material	Steel
System of Measurement	Inch

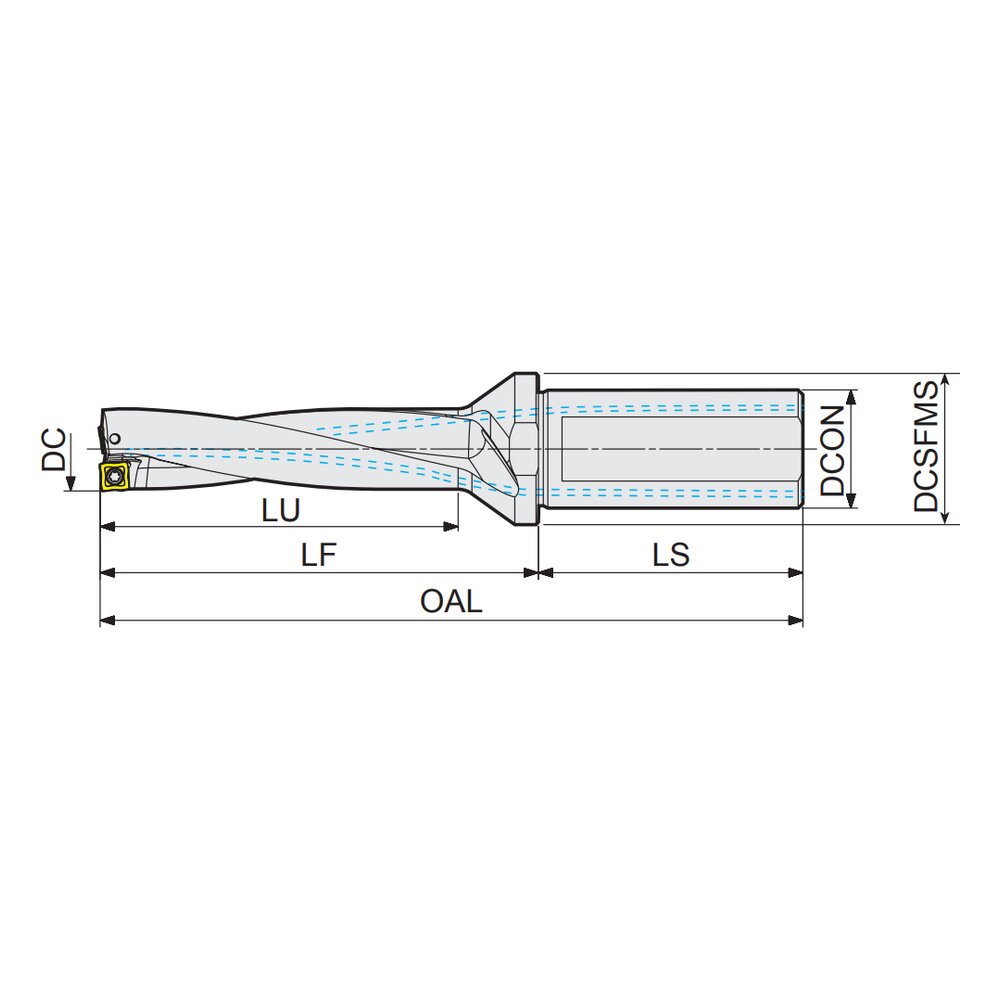

Image: Diagrams	SYMX-10T308 X-Drill Holder.png

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.

Brand

YG1
