Sale!

YG1-93526 – 1/16 x 1/4 x 5/32 x 2-3/8 – 2 Flute 30 Deg Helix Taper Neck Ball Nose X-Power Carbide

Original price was: $102.43.Current price is: $76.85.

X-Power

UPC: N/A SKU: YG1-93526 Categories: General Purpose Carbide End Mill, Milling, X-Power, YG-1

EDP No.	93526
Description	2 FLUTE 30 DEG HELIX TAPER NECK BALL NOSE X-POWER CARBIDE
Size	1/16 x 1/4 x 5/32 x 2-3/8
Available Qty.	Call for availability

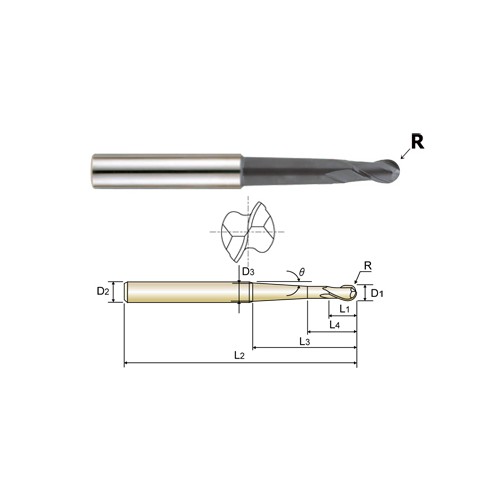

Specifications

Series	EM963
Number of Flutes	2
Diameter inch	0.0625
Diameter metric	1.587
Shank Dia. Inch	0.25
Shank Dia. Metric	6.35
LOC inch	0.1562
LOC metric	3.969
LBS inch	0.875
LBS metric	22.225
OAL inch	2.375
OAL metric	60.325
Ball Nose Radius inch	0.0312
Ball Nose Radius metric	0.794
Neck Diameter inch	0.096
Neck Diameter metric	2.438
Under Neck Parallel inch	0.2344
Under Neck Parallel metric	5.953
Neck Taper Angle	1° 30'
Shank Style	Plain
Helix Angle	30°
Coating	ALTiN
Material	Carbide
Cut Type	Center Cut
Type	Carbide, 2 Flute Ball Nose with Taper Neck
Application	P
Cutting Direction	Right
System of Measurement	Inch

Alternate EDP’s or Related Accessories

EDP No.	Description	Size	Remark
GM963004	X-POWER PRO 2 FLUTE BALL NOSE WITH TAPER NECK END MILL	1/16 x 1/4 x 5/32(7/8) x 2-3/8(1.5Â°)	X-Power (Pro)
