Sale!

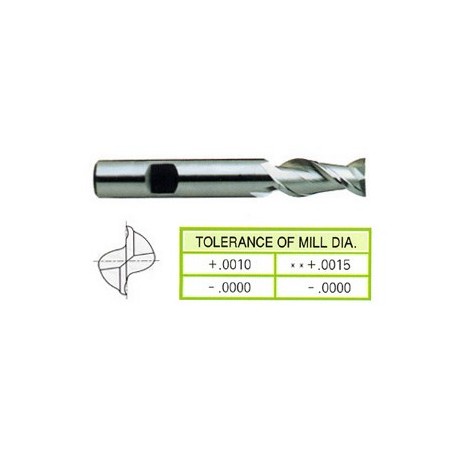

YG1-99089HF – 1 x 1 x 3 x 5-1/2 – 2 Flute Medium Length Hi-Helix Tialn-Futura Coated Hss

Original price was: $210.05.Current price is: $157.55.

HSS End Mill

UPC: N/A SKU: YG1-99089HF Categories: HSS & Cobalt End Mill, HSS End Mill, Milling, YG-1

EDP No.	99089HF
Description	2 FLUTE MEDIUM LENGTH HI-HELIX TIALN-FUTURA COATED HSS
Size	1 x 1 x 3 x 5-1/2
Available Qty.	Call for availability

Specifications

Series	E1070
Long Description	1 x 3 x 5 1/2 OAL HSS 42° Helix 2 Flute TiAlN Square End End Mill
Number of Flutes	2
Diameter (inch)	1
Diameter (mm)	25.4
Shank Dia. (inch)	1
Shank Dia. (mm)	25.4
Length of Cut (inch)	3
Length of Cut (mm)	76.2
Overall Length (inch)	5.5
Overall Length (mm)	139.7
Shank Style	Flat
Helix Angle	42°
Coating	TiALN-Futura
Material	HSS
Cut Type	Center Cut
Corner Type	Square End
Type	2 FL SE HSS, 42° Helix Medium Length TIALN Futura Coated
Application	P,N
Cutting Direction	Right
System of Measurement	Inch
End Type	Single End
Extended reach	No
Tool Performance	High Performance

High Helix 2 Flute, designed specifically for aluminum and non-ferrous materials. Special rake angle and fine finish on primary clearnce angles and flute faces insuring free cutting action with material sticking, fine finish, and longer tool life. Made of M2 HSS, good for cutting aluminum.

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.

Brand

YG1

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
