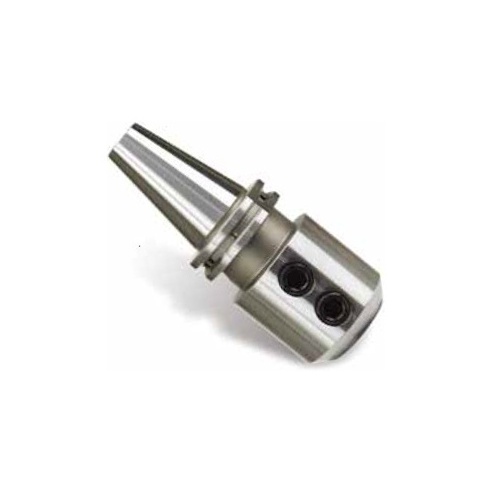

YG1-AL014BX – CAT50AD/B-EMH1-4.00 – Ygbasix Endmill Holder

Original price was: $149.52.Current price is: $118.05.

YGBasiX Holder

UPC: N/A SKU: YG1-AL014BX Categories: Holders, Rotary Tool Holder & Accessories, Rotary YGBasiX Tool Holders, YG-1

EDP No.	AL014BX
Description	YGBasiX EndMILL HOLDER
Size	CAT50AD/B-EMH1-4.00
Available Qty.	Call for availability

Specifications

Taper No.	CAT50
Model No.	CAT50 AD/B-EMH 1.0-4.00
Bore Diameter (Inch)	1
Bore Diameter (Metric)	25.4
Body diamter work piece (Inch)	2
Body diamter work piece (Metric)	50.8
Gage Length (Inch)	4
Gage Length (Metric)	101.6
Functional Length	4.4
Posting of screw from face	0.831
Screw	UNF3/4-16 1/2L
# of Set Screw	1
Taper Accuracy	AT3
G Value	6.3
RPM	15000
Coolant System	AD/B
Length	Standard
Connection	ASME B5.50-2009-CAT
NOTES:	High Balanced End Mill Holders are avilable on request. Set Screws for endmill Holders.

Alternate EDP’s or Related Accessories

EDP No.	Description	Size	Remark
AL002B	END MILL HOLDER	CAT50 AD/B-EMH1/4-2.50
