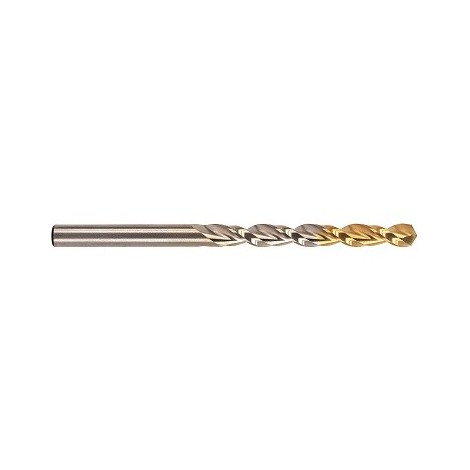

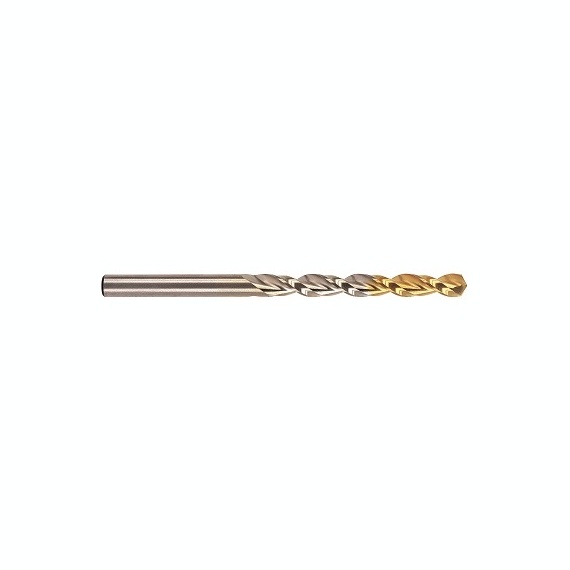

YG1-DLGP506135 – 13.5 x 108 x 160 – Hss(M35) Jobber, Worm Pattern Type Straight Shank Gold-P Drill For Deep Holes

Original price was: $42.01.Current price is: $28.75.

Gold-P Drill

UPC: N/A SKU: YG1-DLGP506135 Categories: Drilling, Gold-P Drill, HSS & Cobalt Drill, YG-1

EDP No.	DLGP506135
Description	HSS(M35) JOBBER, WORM PATTERN TYPE STRAIGHT SHANK GOLD-P DRILL FOR DEEP HOLES
Size	13.5 x 108 x 160
Available Qty.	Call for availability

Specifications

Series	DLGP506
Long Description	13.50 x 160.00 OAL 135 Point Jobber TiN Non Coolant General Purpose HSS Co5 Gold P
Number of Flutes	2
Diameter (inch)	0.5315
Diameter (mm)	13.5
Shank Dia. (inch)	0.5315
Shank Dia. (mm)	13.5
Flute Length (inch)	4.252
Flute Length (mm)	108
Overall Length (inch)	6.2992
Overall Length (mm)	160
Point Length (inch)	0.1101
Point Length (mm)	2.796
Point Angle	135
Helix Angle	30
Length/ Diameter	Jobber
Coolant Through	No
Blank Standard	DIN 338
Coating	TiN
Material	HSS Co5
Hole Tolerance	h8
Type	HSSCo5 JOBBER, WORM PATTERN TYPE SS GOLD-P DRILL FOR DEEP HOLES
Application	Steels
Cutting Direction	Right
System of Measurement	MM
Pack Quanities	10
Point Type	Split Point
Flute	Spiral Flute
Flute Geometry	Parabolic
Direction	Right Hand

For drilling in steels, cast iron, stainless steel, aluminum, and other non-ferrous materilas. HSS,HSSCo5 and HSSCo8. Bright shank with TiN coating on working part. Right-hand helix, straight shank. Standard and Parabolic Flute.
