Sale!

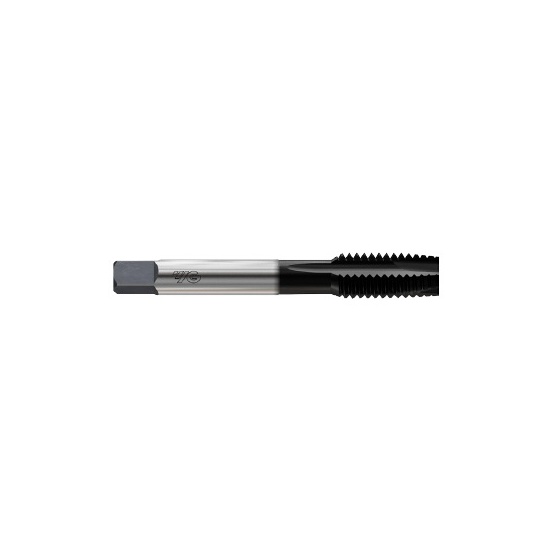

YG1-L1202 – 5 – 40, H2 – 2 Flute Spiral Pointed Plug Hardslick Coated Tap For Multi Purpose

Original price was: $17.34.Current price is: $11.90.

Blue Ring Tap

UPC: N/A SKU: YG1-L1202 Categories: General Purpose Tap, Tapping, YG Tap General, YG-1

EDP No.	L1202
Description	2 FLUTE SPIRAL POINTED PLUG HARDSLICK COATED TAP FOR MULTI PURPOSE
Size	5 – 40, H2
Available Qty.	Call for availability

Specifications

Serial #	695
Series	L1
Long Description	#5-40 1.940 OAL HSSE 2 Flute Hardslick H2 Plug SPPT GP taps Tap
Tap Type	SPPT
Size & Pitch	#5-40
# of Flutes	2
Diameter inch	0.125
Diameter metric	3.175
Pitch	40
Thread Series	UNC
Pitch Limit	H2
Chamfer Type	Plug
Chamfer Length	4P-5P
Finish	Hardslick
Material	HSSE
Blank Standard	302A
OAL inch	1.94
OAL metric	49.28
Thd. Lgth. Inch	0.374
Thd. Lgth. Metric	9.5
Sqr. Lgth. Inch	0.19
Sqr. Lgth. Metric	4.83
Shk. Dia. Inch	0.141
Shk. Dia. Metric	3.58
Sqr. Size inch	0.11
Sqr. Size metric	2.79
Neck Dia inch	0.09
Neck Dia metric	2.29
System of Measurement	Inch
Shank Type	Square
Drill Size inch	0.1023
Drill Size metric	2.598
Connection inch	0.141 x 0.11
Connection metric	3.58 x 2.79
Length/ Diameter	3.0 x D
Useable Length inch	0.626
Useable Length metric	15.9
Coolant Thru 0 With and X without	Non Coolant
Trade Name	YG Tap GP
Application	P,M,K,N

Spiral Point for through holes to push the chip through. Offered in Bright Finish, Steam Oxide, TiN, and TiCN coatings. Use Hardslick on gummy materials.
