YG1-P25404 – 4, 1-29/32~2-9/16 x 1-1/2 x 2-11/16 – Flanged Straight Shank / Flute Short Length Holder

Original price was: $619.01.Current price is: $407.25.

Spade Drill

UPC: N/A SKU: YG1-P25404 Categories: Drilling, Spade Drill, Spade Drill, YG-1

EDP No.	P25404
Description	FLANGED STRAIGHT SHANK / FLUTE SHORT LENGTH HOLDER
Size	4, 1-29/32~2-9/16 x 1-1/2 x 2-11/16
Available Qty.	Call for availability

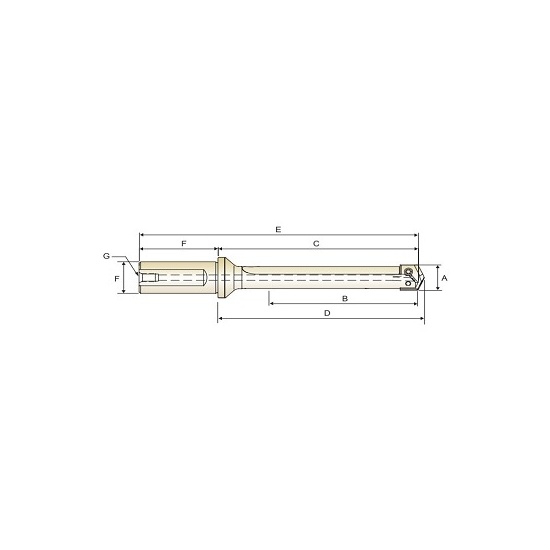

Specifications

Series	P25
Shank Type	Flanged
Spade Drill Series	4
Number of Flutes	2
Flute Type	Straight
Min. Insert Diameter (inch)	1.9062
Min Insert Diameter (mm)	48.419
Max. Insert Diameter (inch)	2.5625
Max Insert Diameter (mm)	65.087
Max Drill Depth (inch)	5.125
Max Drill Depth (mm)	130.175
Flute Length (inch)	7.0625
Flute Length (mm)	179.387
Reference Length (inch)	7.25
Reference Length (mm)	184.15
Overall Length (inch)	9.75
Overall Length (mm)	247.65
Shank Dia. (inch)	1.5
Shank Dia. (mm)	38.1
Shank Length (inch)	2.6875
Shank Length (mm)	68.263
Pipe Tap	0.25
Coolant Through	Yes
Coating	Oxide
Material	Steel
Type	Flanged Straight Shank Spade Drill Holder
Cutting Direction	Right
System of Measurement	Inch
