Sale!

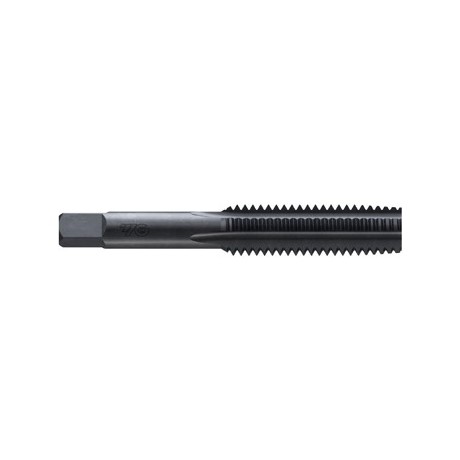

YG1-T6316486 – 3/8-16 UNC H3 – 4 Flute Hss Taper Style Steam Oxide Hand Tap

Original price was: $11.46.Current price is: $7.85.

Blue Ring Tap

UPC: N/A SKU: YG1-T6316486 Categories: General Purpose Tap, Tapping, YG Tap General, YG-1

EDP No.	T6316486
Description	4 FLUTE HSS TAPER STYLE STEAM OXIDE HAND TAP
Size	3/8-16 UNC H3
Available Qty.	Call for availability

Specifications

Serial #	325
Series	T6316
Long Description	3/8-16 2.9400 OAL HSS 4 Flute Oxide H3 Taper Hand Tap
Tap Type	Hand
Size & Pitch	3/8-16
# of Flutes	4
Diameter (inch)	0.375
Diameter (metric)	9.525
Pitch	16
Thread Series	UNC
Pitch Limit	H3
Chamfer Type	Taper
Chamfer Length	7P-9P
Finish	Oxide
Material	HSS
Blank Standard	302
Overall Length (inch)	2.94
OAL (metric)	74.676
Thd. Lgth. (inch)	1.25
Thd. Lgth. (metric)	31.75
Sqr. Lgth. (inch)	0.44
Sqr. Lgth. (metric)	11.176
Shk. Dia. (inch)	0.381
Shk. Dia. (metric)	9.7
Sqr. Size (inch)	0.286
Sqr. Size (metric)	7.26
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.3182
Drill Size (mm)	8.081
Connection (in)	0.381 x 0.286
Connection (mm)	9.7 x 7.26
Length/ Diameter	2xD
Useable Length (in)	1.25
Useable Length (mm)	31.75
Ring Color	No
Trade Name	YG-1Hand Taps
Application	P,M,K,N

Straight Flute taps for short chipping materials and hand tapping operations.
