Sale!

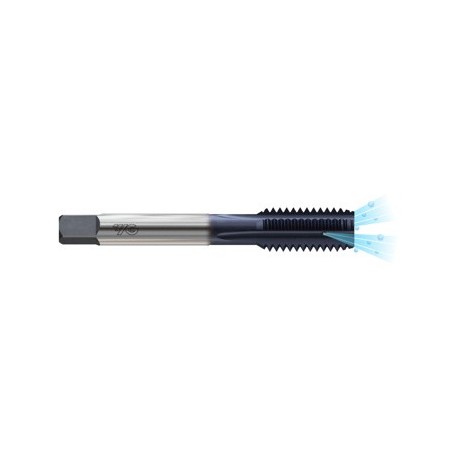

YG1-TR315R – M6 x 1 D5 – Hss-Pm Straight Flute Radial Coolant Hole Tialn Coated Tap

Original price was: $67.72.Current price is: $50.80.

YG Tap TiNi

UPC: N/A SKU: YG1-TR315R Categories: High Performance & HSS PM Tap, Tapping, YG Tap Cast Iron, YG-1

EDP No.	TR315R
Description	HSS-PM STRAIGHT FLUTE RADIAL COOLANT HOLE TIALN COATED TAP
Size	M6 x 1 D5
Available Qty.	Call for availability

Specifications

Serial #	126
Series	TR-R
Long Description	M6x1," 2.500 OAL HSS-PM 4 Flute TiALN D5 Modified Bottoming Straight Flute YG Cast Iron
Tap Type	Straight Flute
Size & Pitch	M6x1.0
# of Flutes	4
Diameter (inch)	0.2362
Diameter (metric)	6
Pitch	1
Thread Series	M
Pitch Limit	D5
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	TiALN
Material	HSS-PM
Blank Standard	302A
Overall Length (inch)	2.500
OAL (metric)	63.5
Thd. Lgth. (inch)	0.591
Thd. Lgth. (metric)	15.01
Sqr. Lgth. (inch)	0.31
Sqr. Lgth. (metric)	7.87
Shk. Dia. (inch)	0.255
Shk. Dia. (metric)	6.48
Sqr. Size (inch)	0.191
Sqr. Size (metric)	4.85
Neck Dia (inch)	0.181
Neck Dia (metric)	4.6
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.2004
Drill Size (mm)	5.091
Connection (in)	0.255 x 0.191
Connection (mm)	6.48 x 4.85
Length/ Diameter	2.0xD
Useable Length (in)	1
Useable Length (mm)	25.4
Coolant Thru 0 With and X without	Yes
Trade Name	YG Tap Cast
Application	Cast Iron, Aluminium
Application Code	K,N
