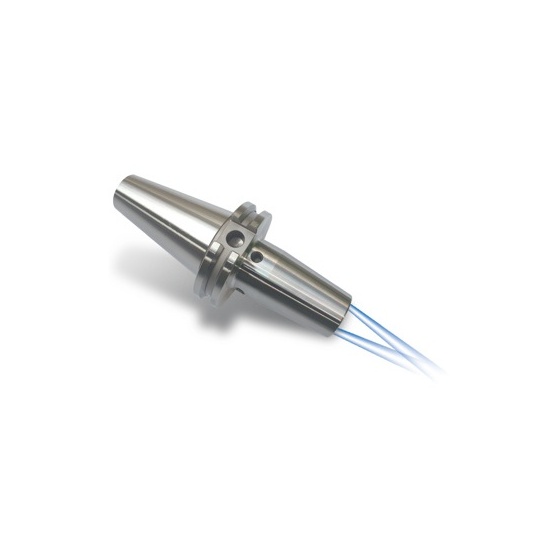

YG1-VB026J – CCT40AD/B-SFH1/4C-6.30 – Dual Contact Shrink Fit Holder Coolant Channel Type

Original price was: $510.75.Current price is: $403.25.

Rotary Tool Holders

UPC: N/A SKU: YG1-VB026J Categories: Holders, Rotary Tool Holder & Accessories, Rotary Tool Holders, YG-1

EDP No.	VB026J
Description	DUAL CONTACT SHRINK FIT HOLDER COOLANT CHANNEL TYPE
Size	CCT40AD/B-SFH1/4C-6.30
Available Qty.	Call for availability

Specifications

Inch/Metric	INCH
Taper#	CCT40
Model#	CCT40AD/B-SFH1/4C-6.30
Connection work side (Inch)	0.250
Connect work side (Metric)	6.35
Body diameter 1 )Inch)	0.8268
Body Diameter 1 (Metric)	21
Body Diameter 2 (Inch)	1.063
Body Diameter 2 (Metric)	27
Gage Length	6.30
LPR metric	160
Functional Length	4 15/17 ~ 5 8/29
LF Metric	124~134
OAL Inch	8.9862
OAL Metric	228.25
Body Length (Inch)	5.5492
Body Length (Metric)	140.95
Body Length 1 (Inch)	1.5008
Body Length 1 (Metric)	38.12
Clamping Length (Inch)	1.0236
Clamping Length (Metric)	26
Connection Bore Depth (Inch)	1.4173
Connection Bore Depth (Metric)	36
Thread diameter size	M5x0.8mm
Body Half taper angle	4.5
Radial Location (Inch)	0.4213
Radial Location (Metric)	10.7
Connection retention knob thread size	UNC5/8-11
Measurement	Inch
Taper Accuracy	AT3
Balance	2.5
RPM	25000
Run Out (at 3D)	<0.00012"
Coolant system	AD/B+C
Spindle Taper Type	CCT (CAT Dual Contact)
Type	DUAL CONTACT SHRINK FIT HOLDER/Long Projection/ (COOLANT CHANNEL TYPE)
NOTES	Taper-Face contact, extra long reach, with coolant ports directing the coolant to the tool/Designed for rough milling, milling, finish milling, drilling, reaming, chamfering, and threadmilling
