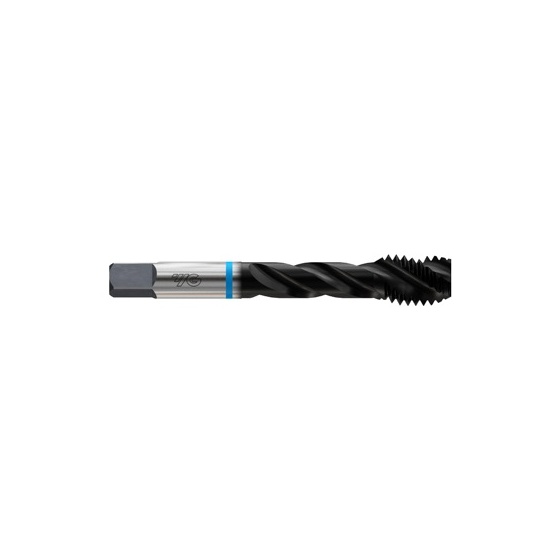

YG1-BI343 – 10 – 32, H3 – 3 Fluted Spiral Fluted Modified Bottoming Super Hss Hardslick Coated For Steel & Stainless Steels Upto 35Hrc

Original price was: $39.59.Current price is: $29.70.

YG Tap TiNi

UPC: N/A SKU: YG1-BI343 Categories: Blue Ring Tap, High Performance & HSS PM Tap, Tapping, YG-1

EDP No.	BI343
Description	3 FLUTED SPIRAL FLUTED MODIFIED BOTTOMING SUPER HSS HARDSLICK COATED FOR STEEL & STAINLESS STEELS UPTO 35HRc
Size	10 – 32, H3
Available Qty.	Call for availability

Specifications

Serial #	83
Series	BI
Long Description	#10-32 2.3740" OAL HSS-PM 3 Flute HardSlick H3 Modified Bottoming Spiral Flute Blue Ring Tap
Tap Type	SPFL
Size & Pitch	#10-32
# of Flutes	3
Diameter (inch)	0.19
Diameter (metric)	4.826
Pitch	32
Thread Series	UNF
Pitch Limit	H3
Chamfer Type	Modified Bottoming
Chamfer Length	2P-3P
Finish	HardSlick
Material	HSS-PM
Blank Standard	302A
Helix Angle	40
Overall Length (inch)	2.374
OAL (metric)	60.3
Thd. Lgth. (inch)	0.276
Thd. Lgth. (metric)	7.01
Sqr. Lgth. (inch)	0.25
Sqr. Lgth. (metric)	6.35
Shk. Dia. (inch)	0.194
Shk. Dia. (metric)	4.93
Sqr. Size (inch)	0.152
Sqr. Size (metric)	3.86
Neck Dia (inch)	0.146
Neck Dia (metric)	3.71
Neck Length (inch)	0.906
Neck Length (metric)	23.0124
System of Measurement	Inch
Shank Type	Square
Drill Size (inch)	0.1616
Drill Size (mm)	4.104
Connection (in)	0.194 x 0.152
Connection (mm)	4.93 x 3.86
Length/ Diameter	2.5 X D
Useable Length (in)	0.906
Useable Length (mm)	23.01
Ring Color	Blue Ring
Trade Name	YG Tap
YG-1 2024 Image	Blue Ring_SPFL_ANSI_Hardslick.jpg
