Sale!

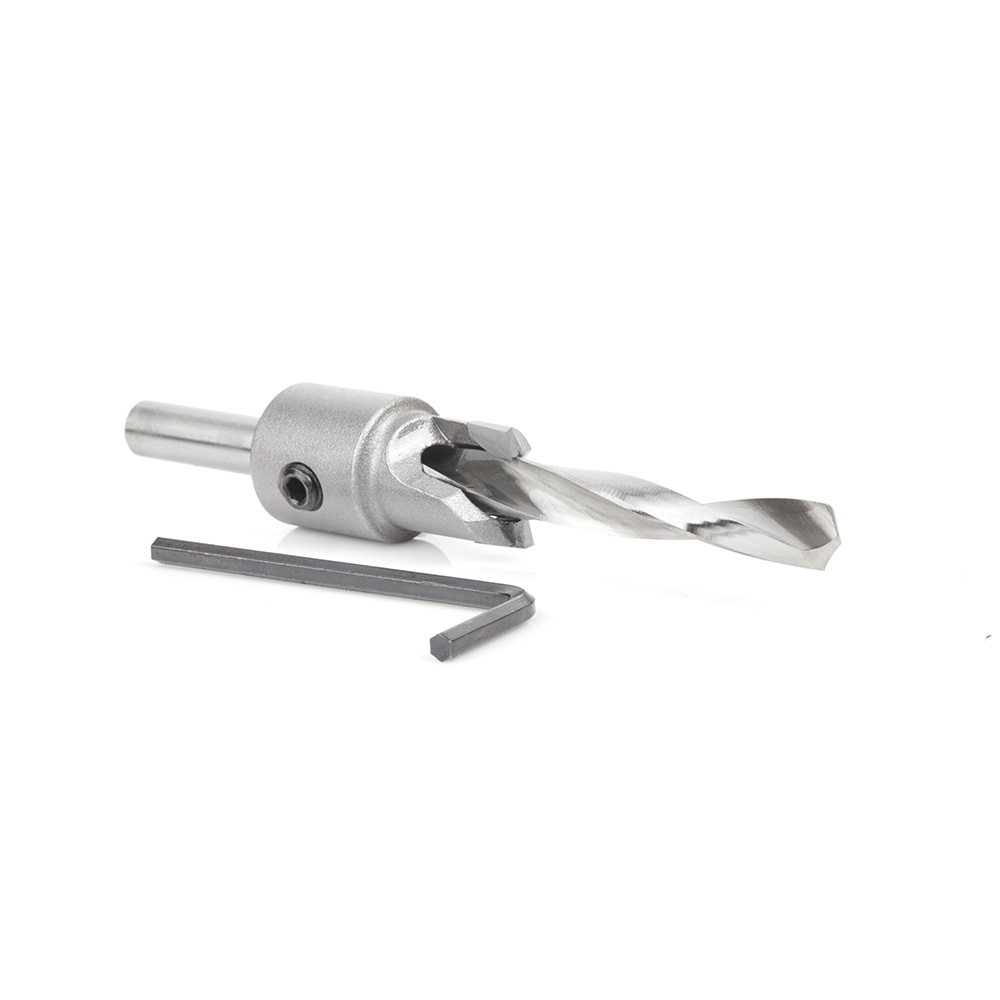

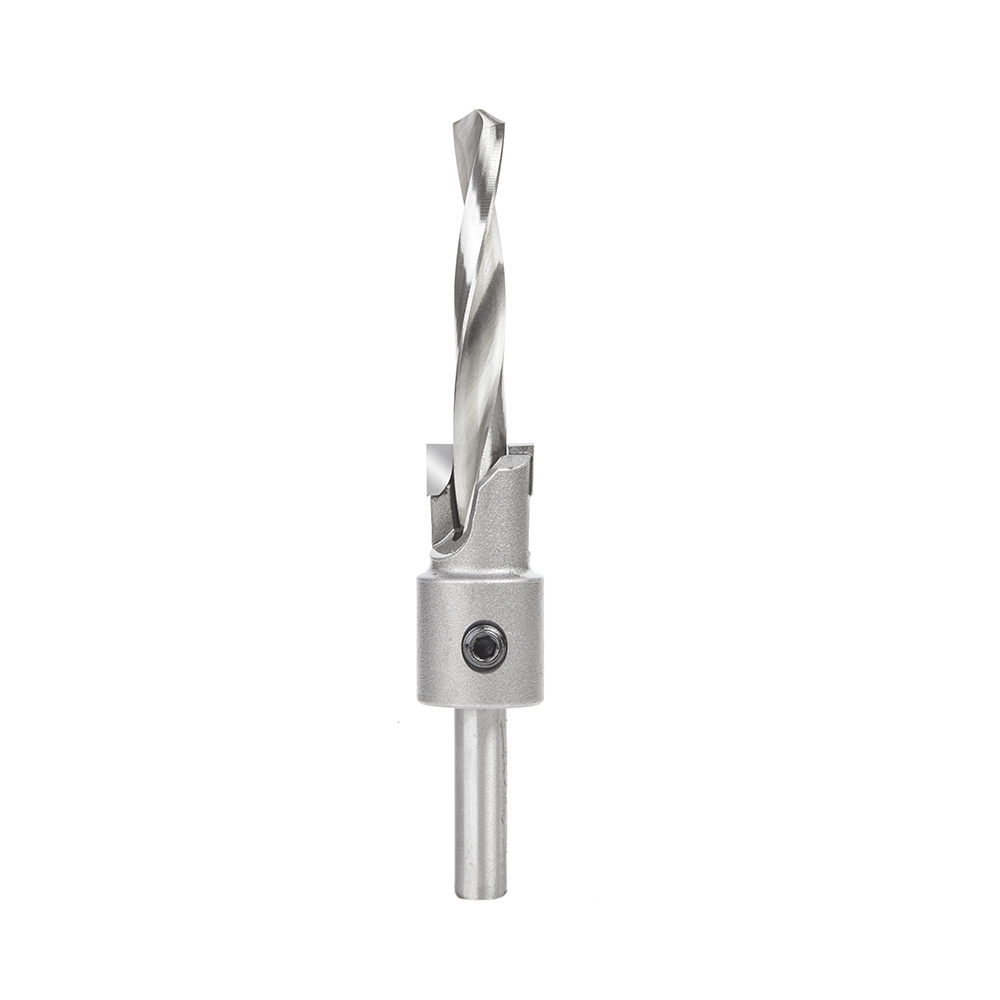

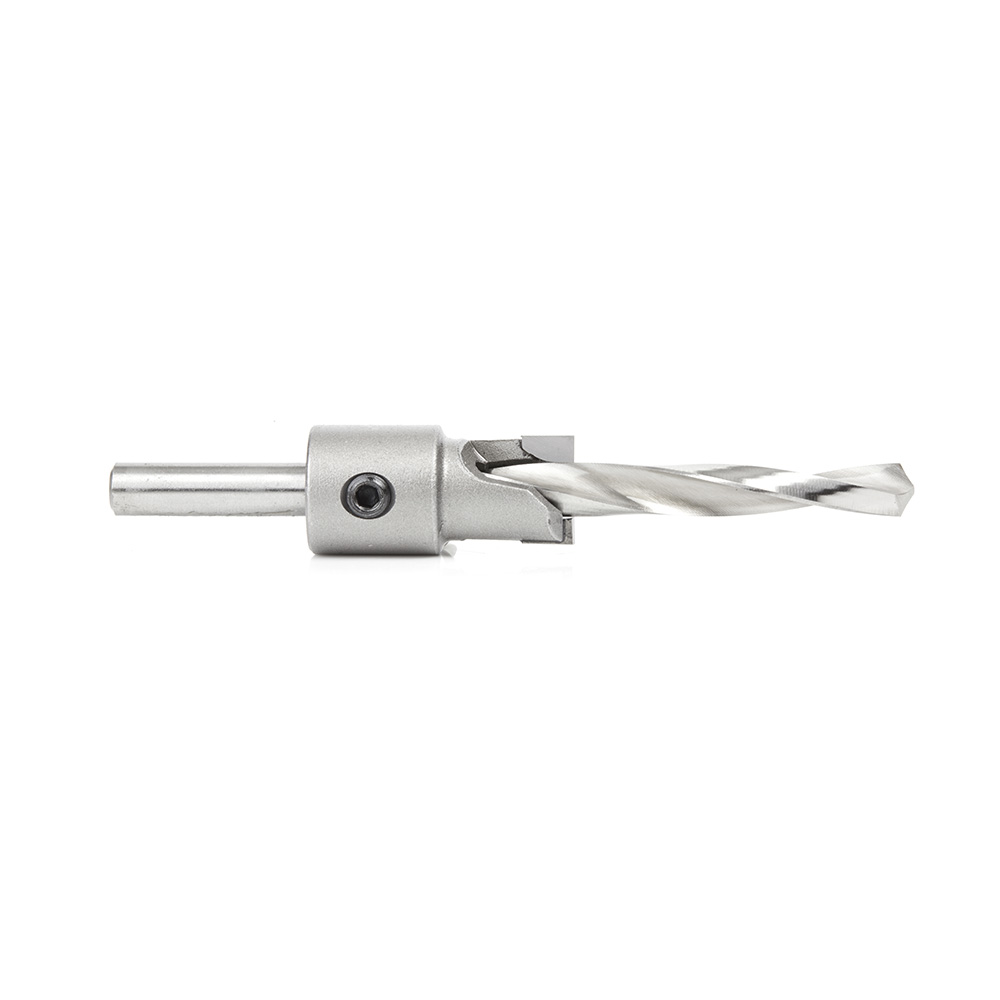

55140 Carbide Tipped Shankless Counterbore with Slow Spiral Drill, #20 Screw 5/8 Dia x 5/16 Drill Dia x 5/16 Drill Shank

Amana 55140 Carbide Tipped Shankless Counterbore with Slow Spiral Drill, #20 Screw 5/8 Dia x 5/16 Drill Dia x 5/16 Drill Shank

Name: Amana 55140 Carbide Tipped Shankless Counterbore with Slow Spiral Drill, #20 Screw 5/8 Dia x 5/16 Drill Dia x 5/16 Drill Shank
SKU: Amana 55140
Availability: InStock

Original price was: $76.85.Current price is: $57.64.

5/16″ CT COUNTERBORE-SHANKLESS

UPC: 738685140550 SKU: Amana 55140 Categories: Amana Tool, Boring & Drilling Bits, Countersink Bits, Shankless Carbide Tipped Countersink Bits

Item Description

Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Replacement Parts

Tool No.	Drill Bit
55140	630-704

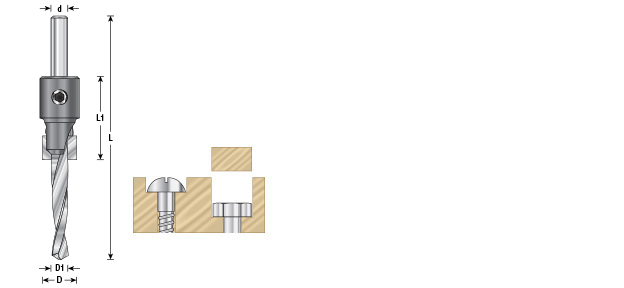

Specifications

(D) Diameter	5/8
(d) Shank	5/16
Overall Length (L)	4-5/8
Wood Screw Size	#20
# Wings	2
D1	5/16
Replacement Drill	630-704
L1	1-1/2

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(d) Shank	Overall Length (L)	L1	Replacement Drill	Tool No.
#20#20#20#20	3/4 (19.05mm)	5/16 (7.94mm)	5/16 (7.94mm)	4-5/8	1-1/2	630-704	55141
#24#24#24#24	3/4 (19.05mm)	3/8 (9.53mm)	3/8 (9.53mm)	4-15/16	1-1/2	630-706	55142
#24#24#24#24	1 (25.40mm)	3/8 (9.53mm)	3/8 (9.53mm)	4-15/16	2 (50.80mm)	630-706	55143
–	1-1/8	1/2 (12.70mm)	1/2 (12.70mm)	5-15/16	2 (50.80mm)	630-708	55145

Weight	0.2 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
