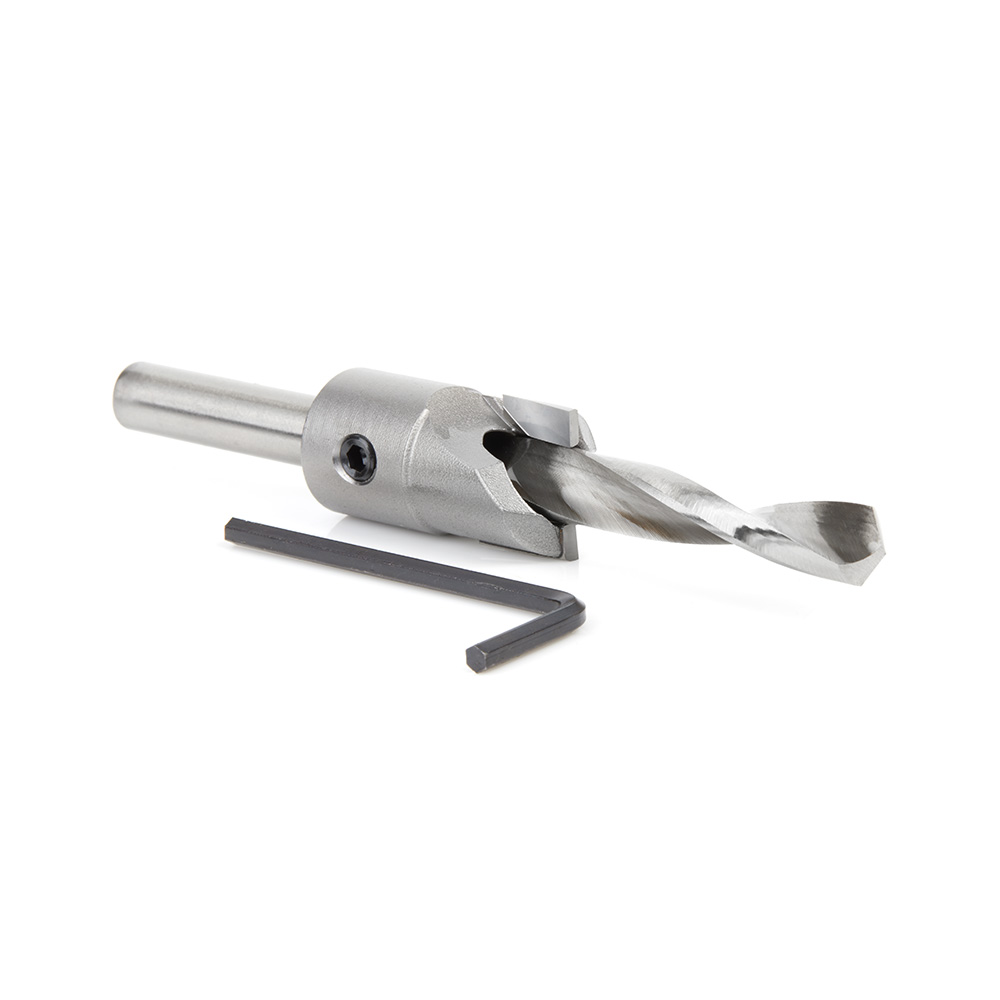

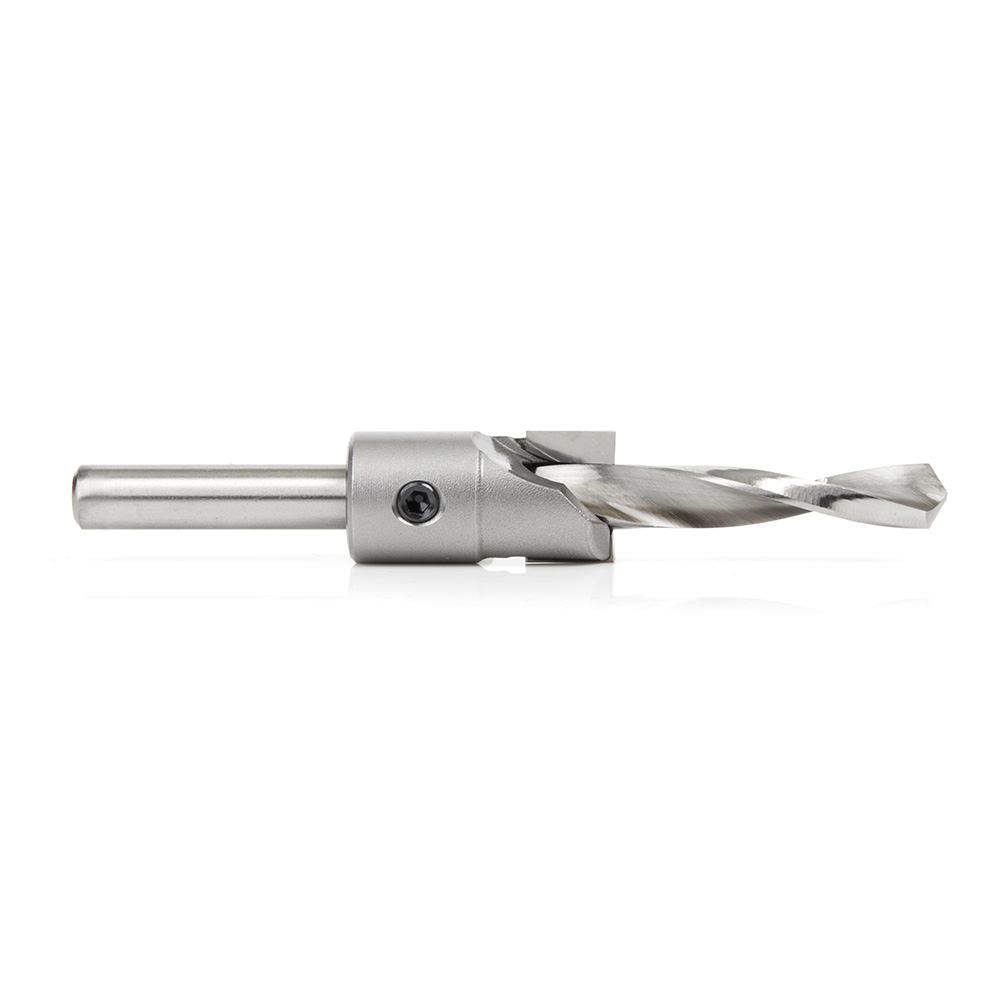

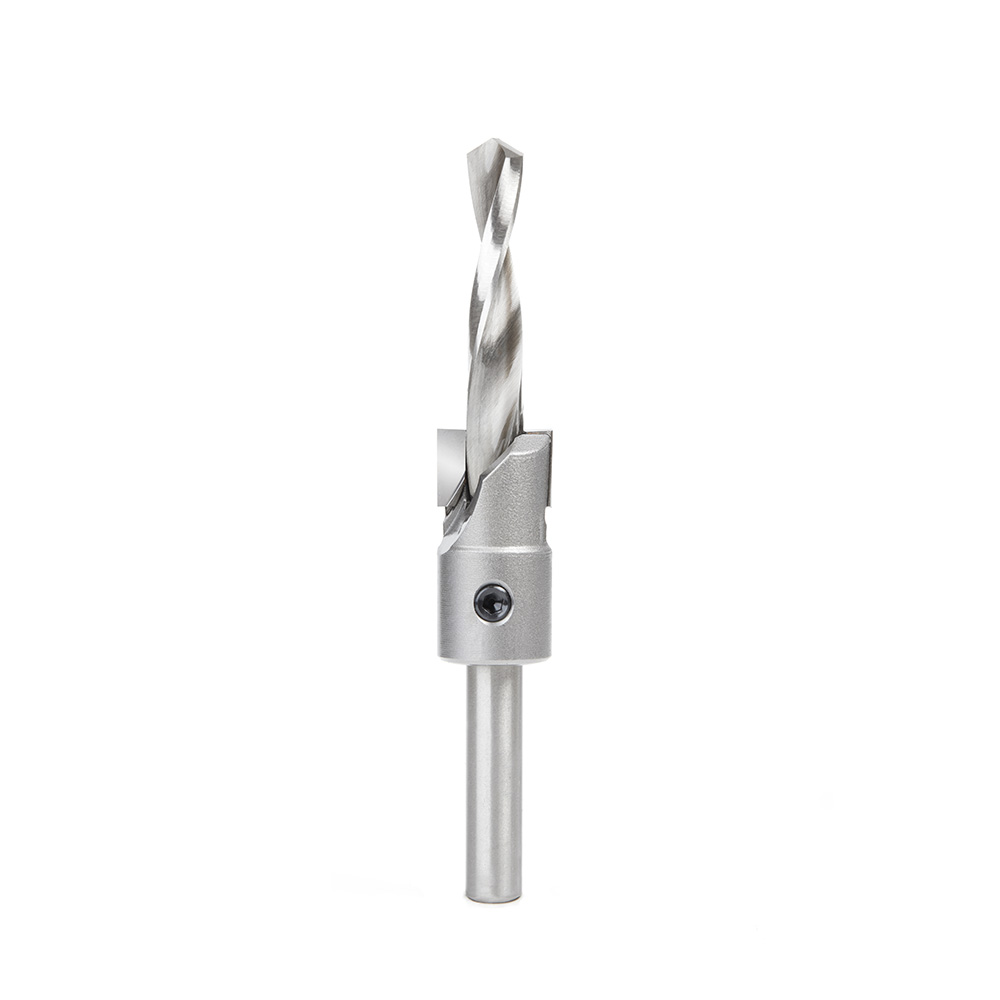

55142 Carbide Tipped Shankless Counterbore with Slow Spiral Drill, #24 Screw 3/4 Dia x 3/8 Drill Dia x 3/8 Drill Shank

Amana 55142 Carbide Tipped Shankless Counterbore with Slow Spiral Drill, #24 Screw 3/4 Dia x 3/8 Drill Dia x 3/8 Drill Shank

Name: Amana 55142 Carbide Tipped Shankless Counterbore with Slow Spiral Drill, #24 Screw 3/4 Dia x 3/8 Drill Dia x 3/8 Drill Shank
SKU: Amana 55142
Availability: InStock

Original price was: $80.70.Current price is: $60.53.

3/8″ CT COUNTERBORE-SHANKLESS

UPC: 738685422519 SKU: Amana 55142 Categories: Amana Tool, Boring & Drilling Bits, Counterbore Bits, Shankless Counterbore Bits

Item Description

Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Replacement Parts

Tool No.	Drill Bit
55142	630-706

Specifications

(D) Diameter	3/4
(d) Shank	3/8
Overall Length (L)	4-15/16
Wood Screw Size	#24
# Wings	2
D1	3/8
Replacement Drill	630-706
L1	1-1/2

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(d) Shank	Overall Length (L)	L1	Replacement Drill	Tool No.
#20#20#20#20	5/8 (15.88mm)	5/16 (7.94mm)	5/16 (7.94mm)	4-5/8	1-1/2	630-704	55140
#20#20#20#20	3/4 (19.05mm)	5/16 (7.94mm)	5/16 (7.94mm)	4-5/8	1-1/2	630-704	55141
#24#24#24#24	1 (25.40mm)	3/8 (9.53mm)	3/8 (9.53mm)	4-15/16	2 (50.80mm)	630-706	55143
–	1-1/8	1/2 (12.70mm)	1/2 (12.70mm)	5-15/16	2 (50.80mm)	630-708	55145

Weight	0.22 lbs
