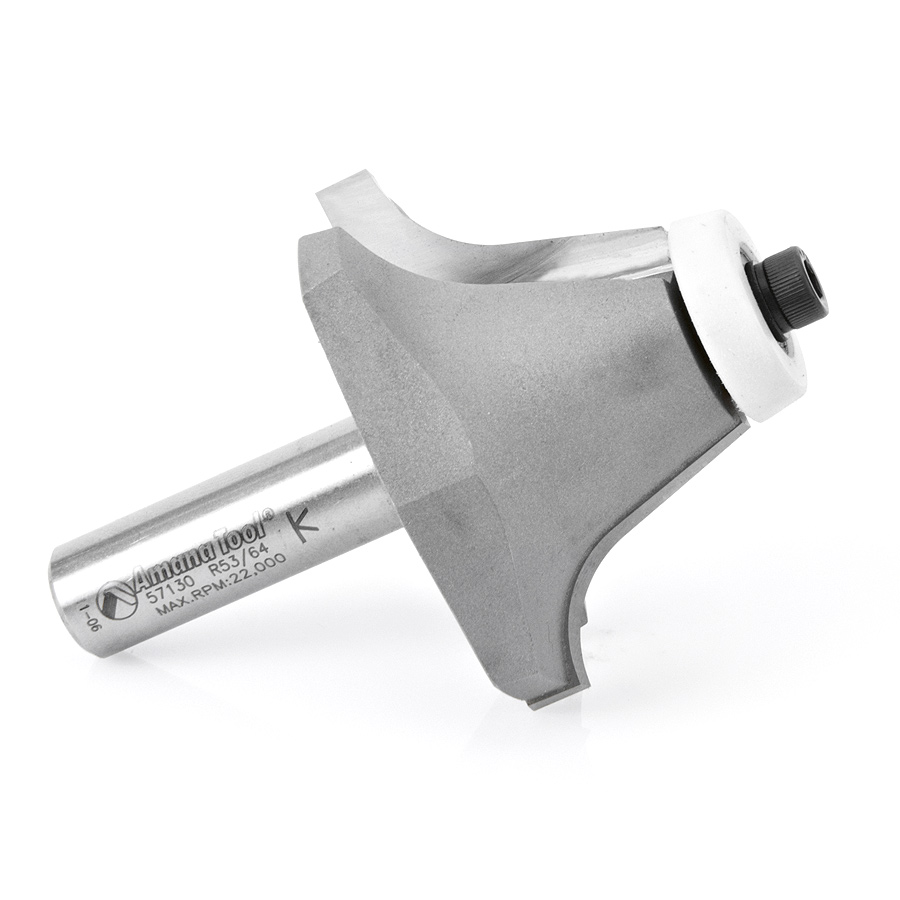

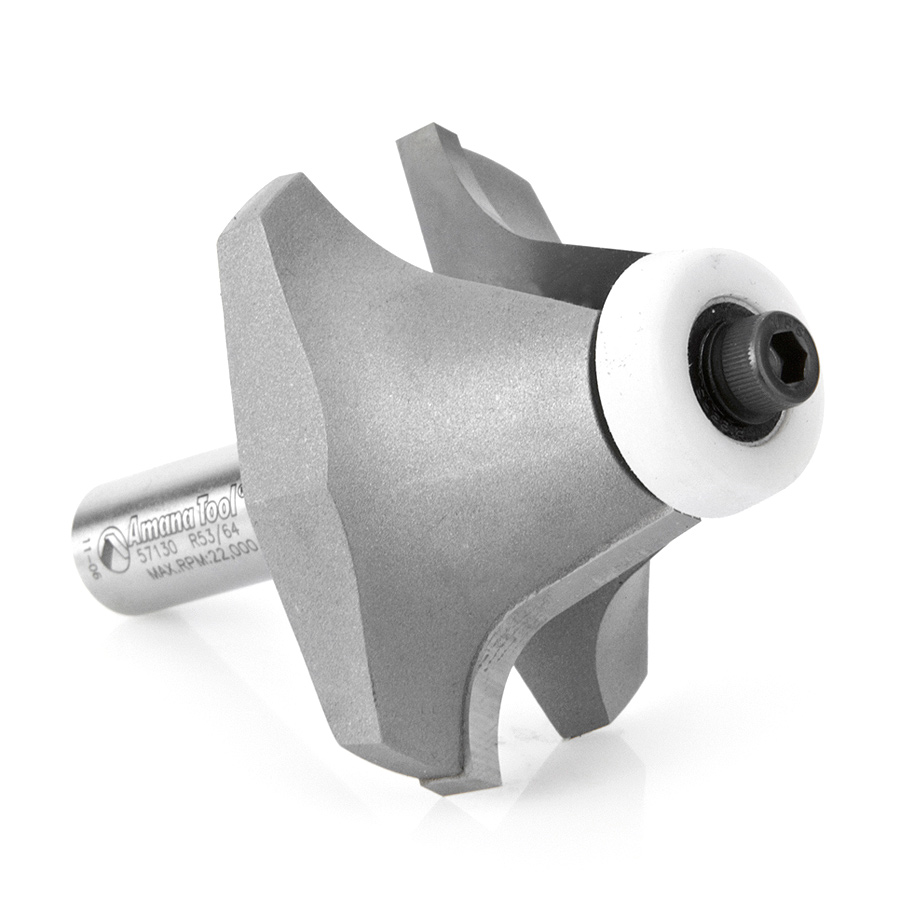

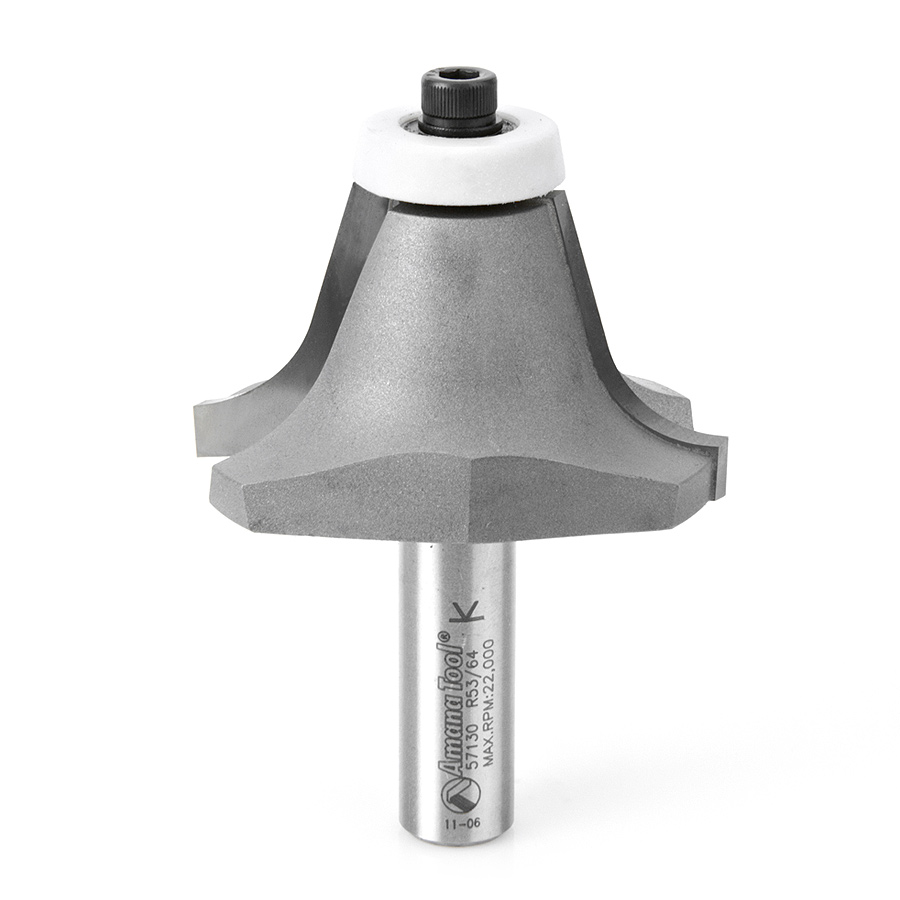

57130 Carbide Tipped Undermount Bowl Solid Surface 2-1/4 Dia x 1-1/4 x 18 Deg x 1/2 Inch Shank

Amana 57130 Carbide Tipped Undermount Bowl Solid Surface 2-1/4 Dia x 1-1/4 x 18 Deg x 1/2 Inch Shank

Name: Amana 57130 Carbide Tipped Undermount Bowl Solid Surface 2-1/4 Dia x 1-1/4 x 18 Deg x 1/2 Inch Shank
SKU: Amana 57130
Availability: InStock

Original price was: $204.40.Current price is: $153.30.

ROUND OVER DESIGN FOR 3/4 STOK

UPC: 738685571309 SKU: Amana 57130 Categories: Amana Tool, Router Bits, Solid Surface Router Bits, Undermount Bowl Router Bits

Item Description

These bits prepare and/or finish counter-top edges in conjunction with undermount bowl installations. The roundover and ogee bits trim and profile the counter-top edges after the bowl is mounted. The bevel bit trims the sink cut-out flush with an installed undermount bowl, but it also can be used with a template to prepare a sink cut-out for a bevel-mount bowl. All these tools can be used for undermount applications of Corian® sink and bowl #’s 802S, 804S, 805S, 809S, and 871S.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
57130	47726	67093	67126	67126

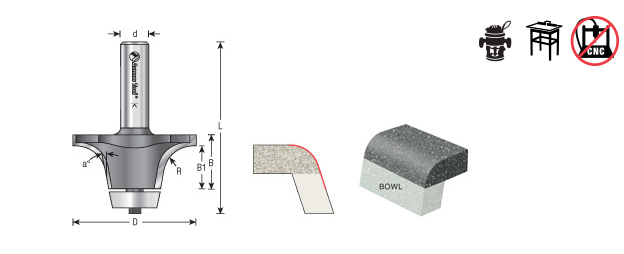

Specifications

Angle (a°)	18°
Diameter (D)	2-1/4
Radius (R)	9/16
Cutting Height (B)	1-1/4
B1	1
Shank (d)	1/2
Overall Length (L)	3-1/4
Type	Round Over
Replacement Bearing	47726
Flutes	2
A	3/4

Other Sizes Available

Angle (a°)	Diameter (D)	Radius (R)	A	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Type	Tool No.
11.5°	1-1/4	–	1/2 & 3/4	15/16 (23.81mm)	–	1/2 (12.70mm)	3 (76.20mm)	Bevel	57122
18°	2-1/8	1/2 (12.70mm)	1/2 (12.70mm)	1 (25.40mm)	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	Round Over	57128

Weight	0.56 lbs
