Sale!

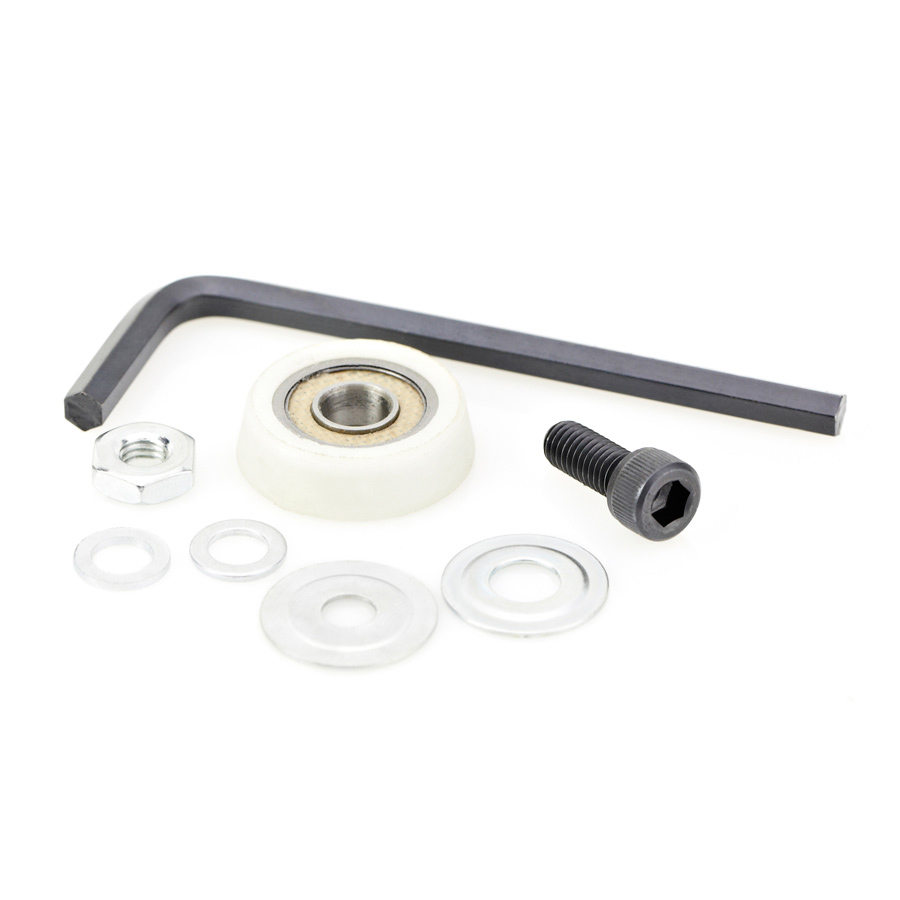

Amana 47726 Ultra-Glide High Performance Ball Bearing 7/8 Overall Dia x 1/4 Inner Dia x 10 Deg Taper

Name: Amana 47726 Ultra-Glide High Performance Ball Bearing 7/8 Overall Dia x 1/4 Inner Dia x 10 Deg Taper
SKU: Amana 47726
Availability: InStock

Original price was: $41.15.Current price is: $30.87.

1/4 X .866 ULTRA-GLIDE 10 DEG.

UPC: 738685877265 SKU: Amana 47726 Categories: Amana Tool, Router Bit Parts & Accessories, Router Bits, Ultra-Glide High Performance Ball Bearing Guide Assemblies

Item Description

Using the same quality standards as our regular steel bearings, these Ultra-Glide™ bearing assemblies feature satin-smooth Delrin® sleeves. Delrin® is an industrial synthetic plastic material similar to nylon, and will leave no marks on the material being cut. Applications include solid-surface materials such as Gibraltar®, Corian®, Surell® & Fountainhead®. etc.; Plexiglas® & other clear acrylics; and plastic laminates. Not recommended for regular wood applications due to a higher wear factor. Include Teflon® dust shields. These bearings provide a better seal to increase bearing life while routing materials that generate very fine dust particles (such as solid surface). Includes new Teflon® dust shields.

Specifications

Angle (a°)	10°
Diameter (D)	.866 (7/8)
Application	New style 57122 and other solid-surface type bit
d	1/4

Other Sizes Available

Angle (a°)	Application	d	Diameter (D)	Radius (R)	Tool No.
5°	New	1/4 (6.35mm)	1 (25.40mm)	–	47733
10°	57156	1/4 (6.35mm)	.866	–	47731
10°	57170 (1452120.90mm)	1/4 (6.35mm)	3/4 (19.05mm)	–	47774
12°	57129 & 57161	1/4 (6.35mm)	1 (25.40mm)	–	47732
21°	57163 (1451943.10mm)	1/4 (6.35mm)	15/16 (23.81mm)	–	47765
–	57154	1/4 (6.35mm)	.750	–	47709
–	1/4"	5/16 (7.94mm)	1.382	–	47727
–	3/8"	5/16 (7.94mm)	1.137	–	47728
–	47727 & 47728	5/16 (7.94mm)	–	–	47729
–	57140	15mm	1.125	–	47737
–	57192 (1452679.71mm)	1/4 (6.35mm)	3/4 (19.05mm)	3/4 (19.05mm)	47768
–	57194 (1452730.51mm)	1/4 (6.35mm)	3/4 (19.05mm)	1 (25.40mm)	47769
–	57159 (1451841.50mm)	1/4 (6.35mm)	29/32 (23.02mm)	–	47777
–	57171 (1452146.30mm)	1/4 (6.35mm)	1-1/16	–	47797

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
