Sale!

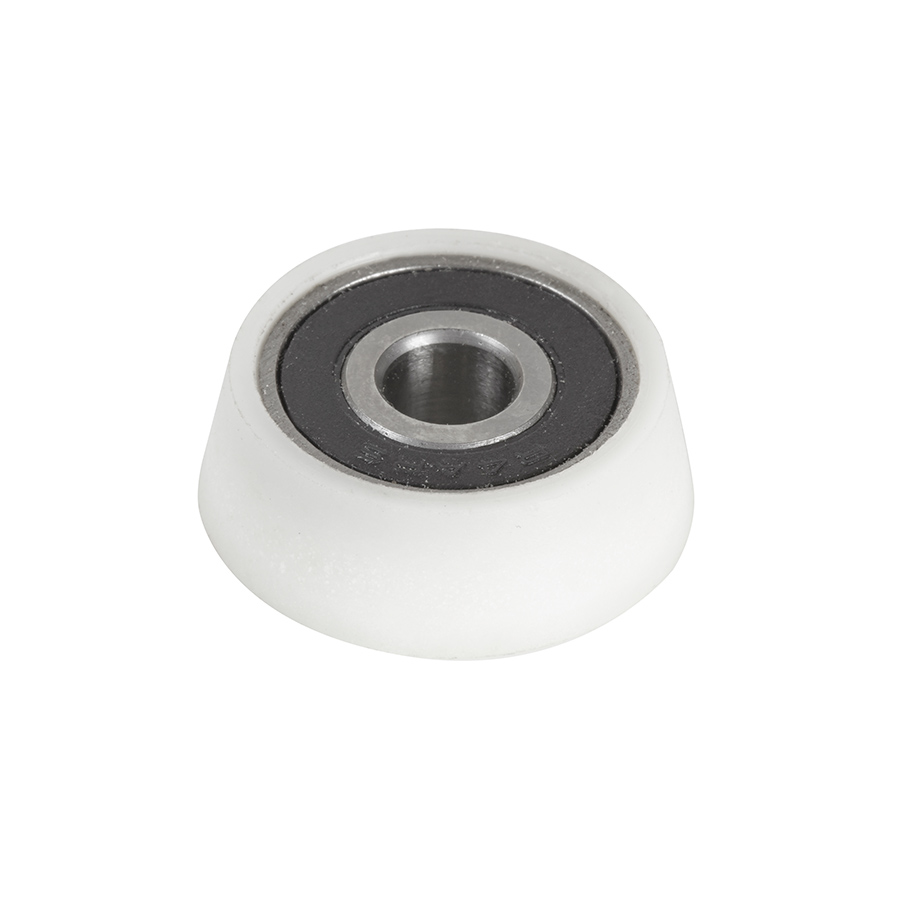

Amana 47765 Ultra-Glide High Performance Ball Bearing 15/16 Overall Dia x 1/4 Inner Dia x 21 Deg Taper

Original price was: $44.30.Current price is: $33.23.

15/16×9/32″ 21D ULTRA-GLIDE BB

UPC: 738685477656 SKU: Amana 47765 Categories: Amana Tool, Router Bit Parts & Accessories, Router Bits, Ultra-Glide High Performance Ball Bearing Guide Assemblies

Item Description

Using the same quality standards as our regular steel bearings, these Ultra-Glide™ bearing assemblies feature satin-smooth Delrin® sleeves. Delrin® is an industrial synthetic plastic material similar to nylon, and will leave no marks on the material being cut. Applications include solid-surface materials such as Gibraltar® Corian,® Surell® & Fountainhead®. etc.; Plexiglas® & other clear acrylics; and plastic laminates. Not recommended for regular wood applications due to a higher wear factor.

Specifications

Angle (a°)	21°
Diameter (D)	15/16
Application	57163
d	1/4

Other Sizes Available

Angle (a°)	Application	d	Diameter (D)	Radius (R)	Tool No.
5°	New	1/4 (6.35mm)	1 (25.40mm)	–	47733
10°	57122 &	1/4 (6.35mm)	.866	–	47726
10°	57156	1/4 (6.35mm)	.866	–	47731
10°	57170 (1452120.90mm)	1/4 (6.35mm)	3/4 (19.05mm)	–	47774
12°	57129 & 57161	1/4 (6.35mm)	1 (25.40mm)	–	47732
–	57154	1/4 (6.35mm)	.750	–	47709
–	1/4"	5/16 (7.94mm)	1.382	–	47727
–	3/8"	5/16 (7.94mm)	1.137	–	47728
–	47727 & 47728	5/16 (7.94mm)	–	–	47729
–	57140	15mm	1.125	–	47737
–	57192 (1452679.71mm)	1/4 (6.35mm)	3/4 (19.05mm)	3/4 (19.05mm)	47768
–	57194 (1452730.51mm)	1/4 (6.35mm)	3/4 (19.05mm)	1 (25.40mm)	47769
–	57159 (1451841.50mm)	1/4 (6.35mm)	29/32 (23.02mm)	–	47777
–	57171 (1452146.30mm)	1/4 (6.35mm)	1-1/16	–	47797

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
