Amana 47728 Ultra-Glide High Performance Ball Bearing 5/16 Overall Dia x 7/8 Inner Dia

Name: Amana 47728 Ultra-Glide High Performance Ball Bearing 5/16 Overall Dia x 7/8 Inner Dia
SKU: Amana 47728
Availability: InStock

Original price was: $21.35.Current price is: $16.02.

SLOTT CUTTER BEARING 3/8″ DEPT

UPC: 738685877289 SKU: Amana 47728 Categories: Amana Tool, Router Bit Parts & Accessories, Router Bits, Ultra-Glide High Performance Ball Bearing Guide Assemblies

Item Description

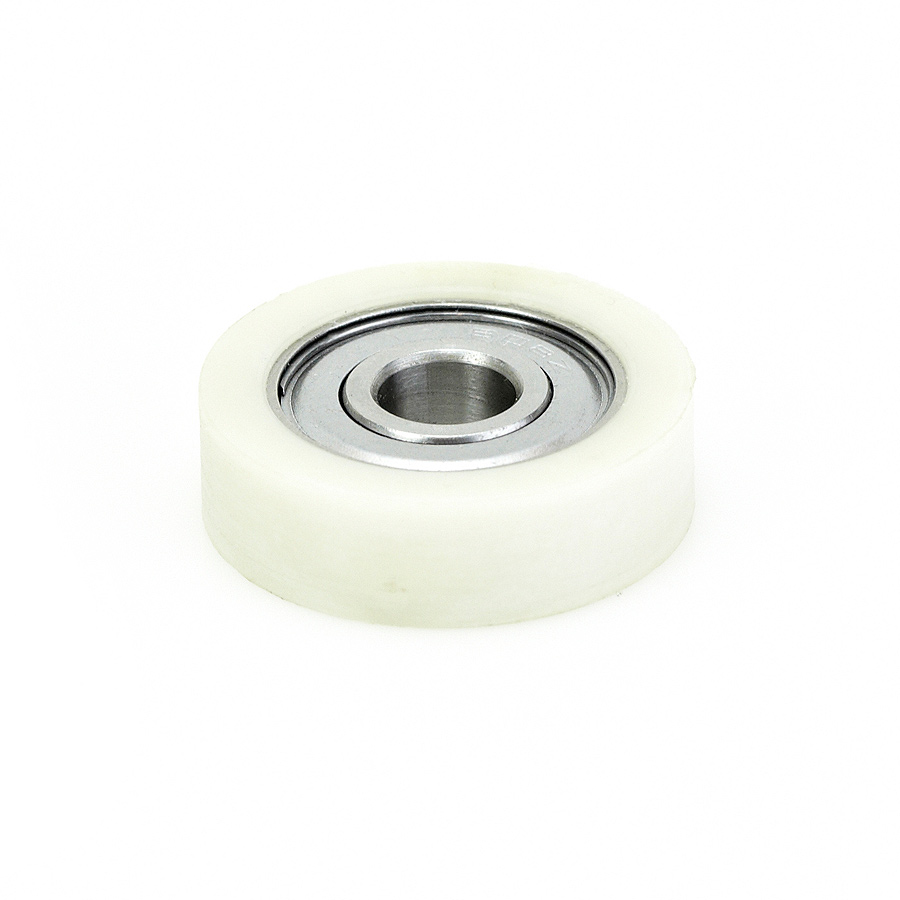

Using the same quality standards as our regular steel bearings, these Ultra-Glide™ bearing assemblies feature satin-smooth DelrinA® sleeves. Delrin® is an industrial synthetic plastic material similar to nylon, and will leave no marks on the material being cut. Applications include solid-surface materials such as Gibraltar®, Corian®, Surell® & Fountainhead®. etc.; Plexiglas® & other clear acrylics; and plastic laminates. Not recommended for regular wood applications due to a higher wear factor.

Specifications

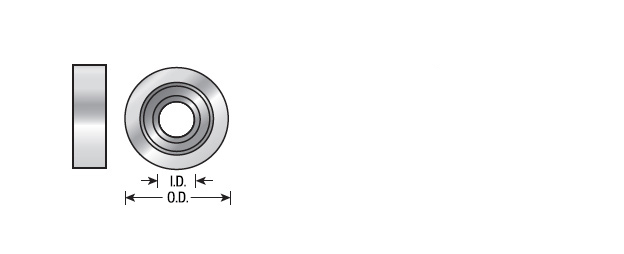

Diameter (D)	1.137 (1-9/64)
Application	Slot cutter assemblies: 3/8" depth of cut; & 53610
d	5/16

Other Sizes Available

Angle (a°)	Application	d	Diameter (D)	Radius (R)	Tool No.
5°	New	1/4 (6.35mm)	1 (25.40mm)	–	47733
10°	57122 &	1/4 (6.35mm)	.866	–	47726
10°	57156	1/4 (6.35mm)	.866	–	47731
10°	57170 (1452120.90mm)	1/4 (6.35mm)	3/4 (19.05mm)	–	47774
12°	57129 & 57161	1/4 (6.35mm)	1 (25.40mm)	–	47732
21°	57163 (1451943.10mm)	1/4 (6.35mm)	15/16 (23.81mm)	–	47765
–	57154	1/4 (6.35mm)	.750	–	47709
–	1/4"	5/16 (7.94mm)	1.382	–	47727
–	47727 & 47728	5/16 (7.94mm)	–	–	47729
–	57140	15mm	1.125	–	47737
–	57192 (1452679.71mm)	1/4 (6.35mm)	3/4 (19.05mm)	3/4 (19.05mm)	47768
–	57194 (1452730.51mm)	1/4 (6.35mm)	3/4 (19.05mm)	1 (25.40mm)	47769
–	57159 (1451841.50mm)	1/4 (6.35mm)	29/32 (23.02mm)	–	47777
–	57171 (1452146.30mm)	1/4 (6.35mm)	1-1/16	–	47797

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
