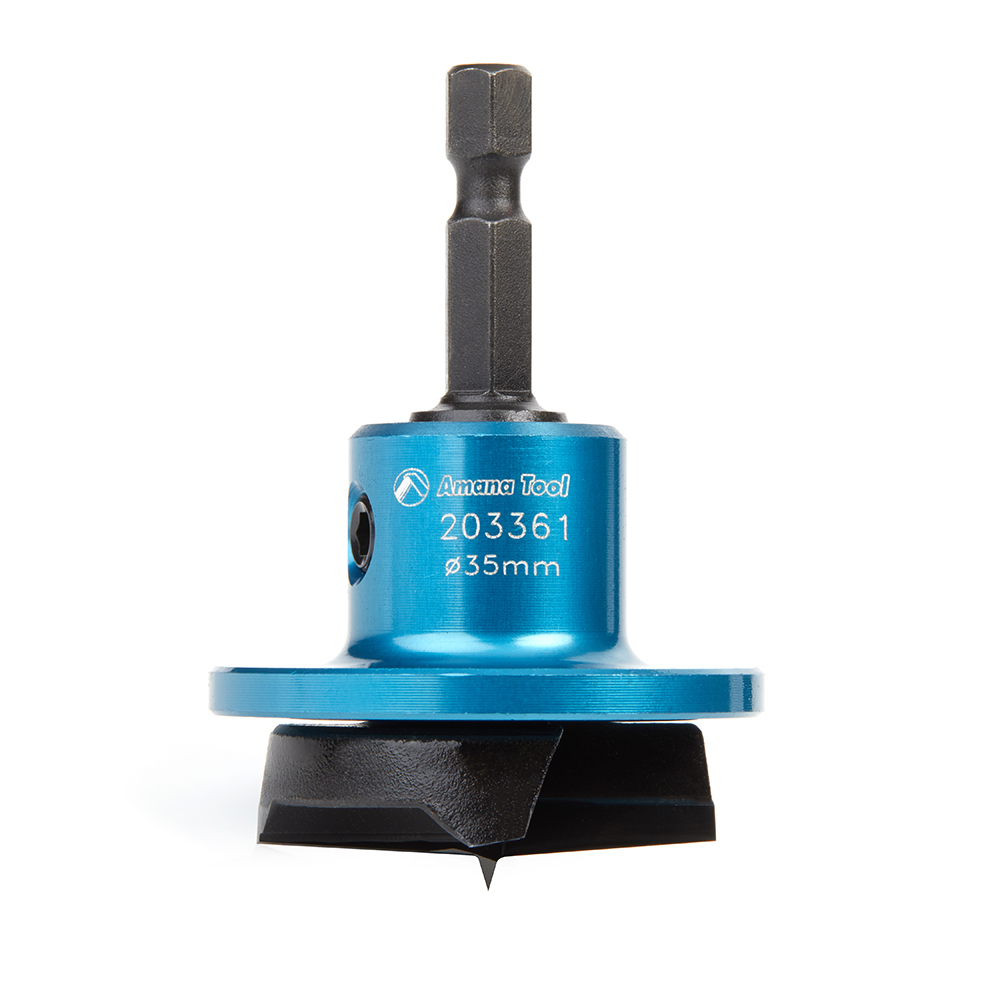

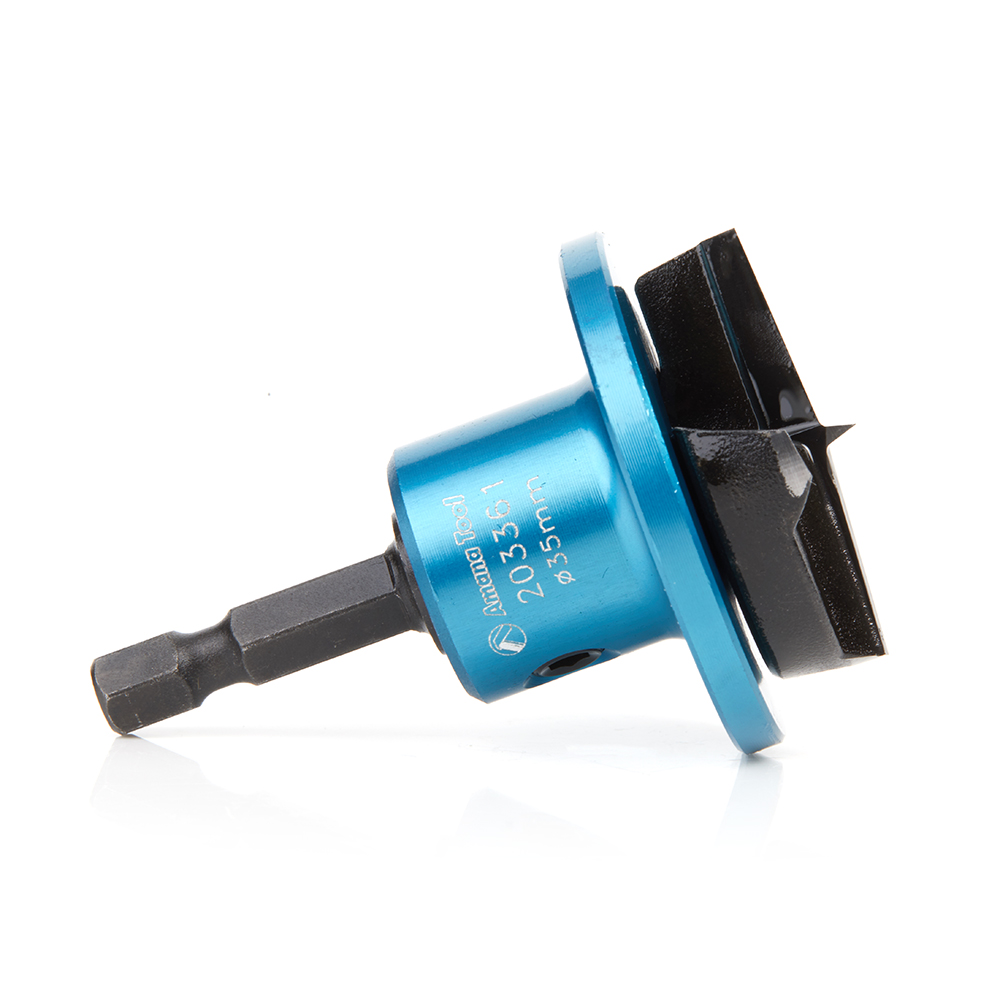

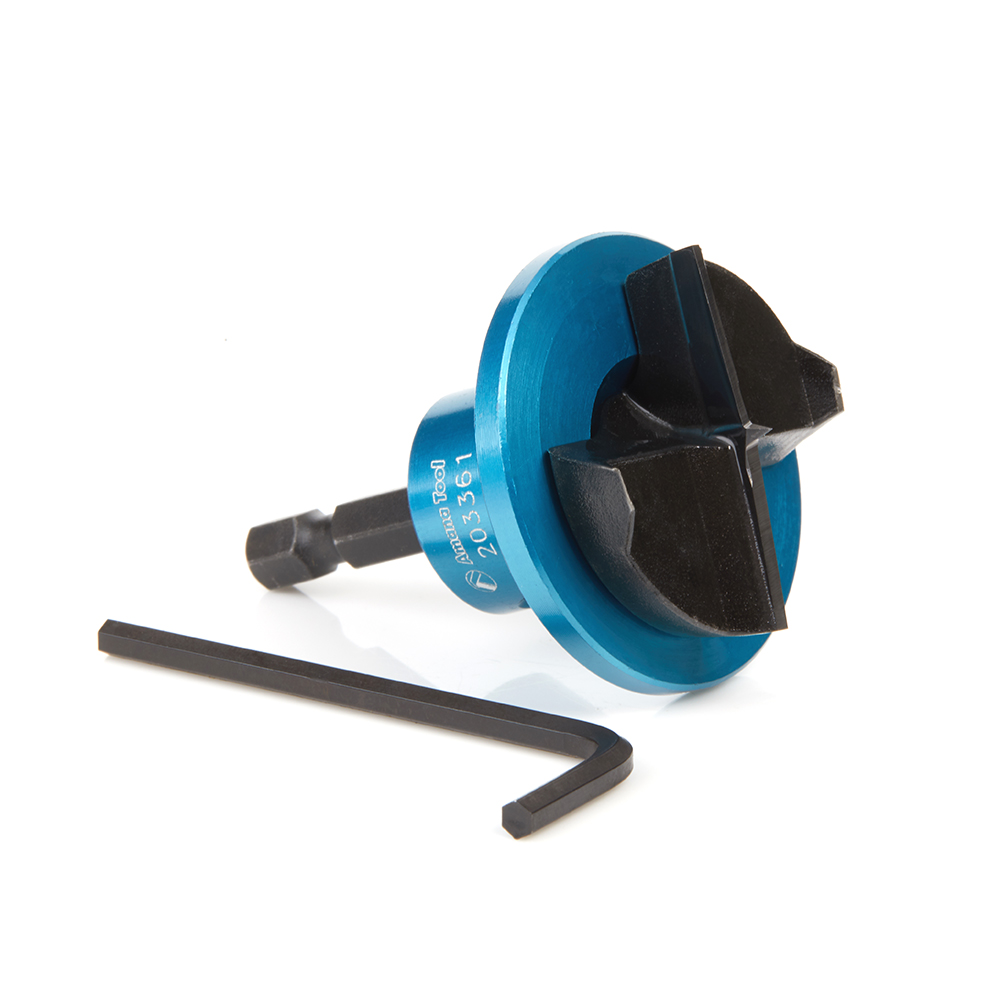

203361 Carbide Tipped 2 Wing Hinge Boring Bit with Spurs with Adjustable Depth-Stop 35mm Dia x 1/4 Inch Quick Release Hex Shank

Amana 203361 Carbide Tipped 2 Wing Hinge Boring Bit with Spurs with Adjustable Depth-Stop 35mm Dia x 1/4 Inch Quick Release Hex Shank

Name: Amana 203361 Carbide Tipped 2 Wing Hinge Boring Bit with Spurs with Adjustable Depth-Stop 35mm Dia x 1/4 Inch Quick Release Hex Shank
SKU: Amana 203361
Availability: InStock

Original price was: $64.25.Current price is: $44.98.

35MM HINGE BORING W/DEPTH STOP

UPC: 738685203361 SKU: Amana 203361 Categories: Amana Tool, Boring & Drilling Bits, Quick Release Boring Bit with Adjustable Depth-Stop

Item Description

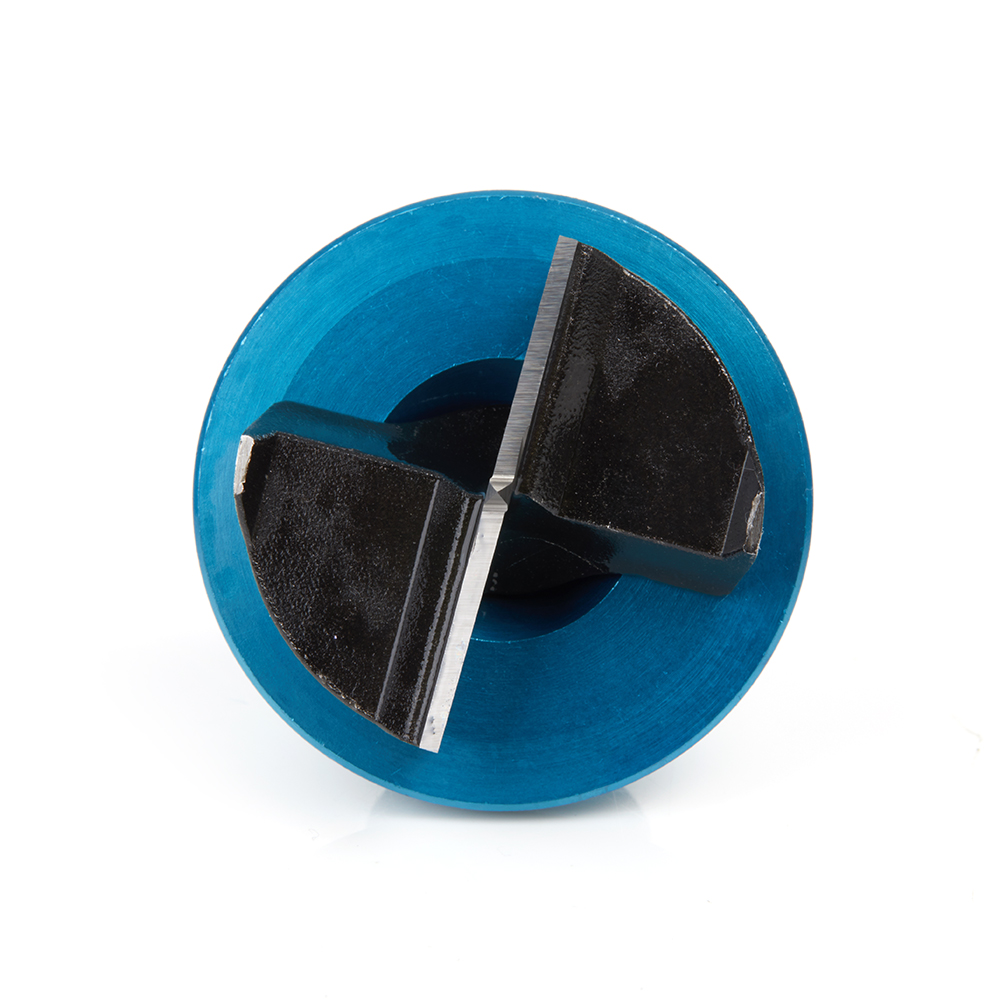

Carbide Tipped with center point. Adjustable aluminum depth-stop that allow to control the depth of blind holes. Depth range 3/8″ (9.52mm) to 1/2″ (12.7mm).

Replacement Parts

Replacement drill bit
55289

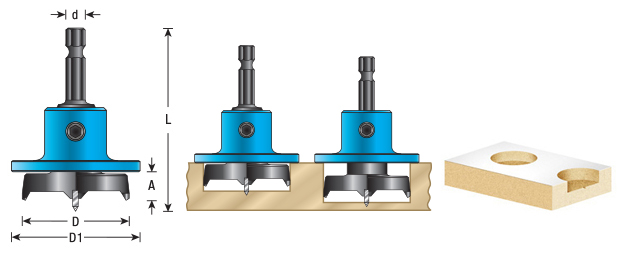

Specifications

(D) Diameter	35mm
(d) Shank	1/4
Overall Length (L)	2-3/8
# Wings	2
D1	1-21/32
Depth Range (A)	3/8" (9.52mm) – 1/2" (12.7mm)

Weight	0.28 lbs
