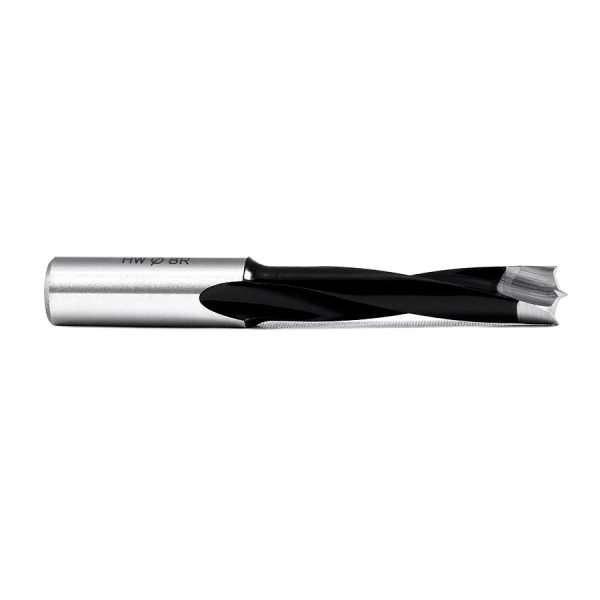

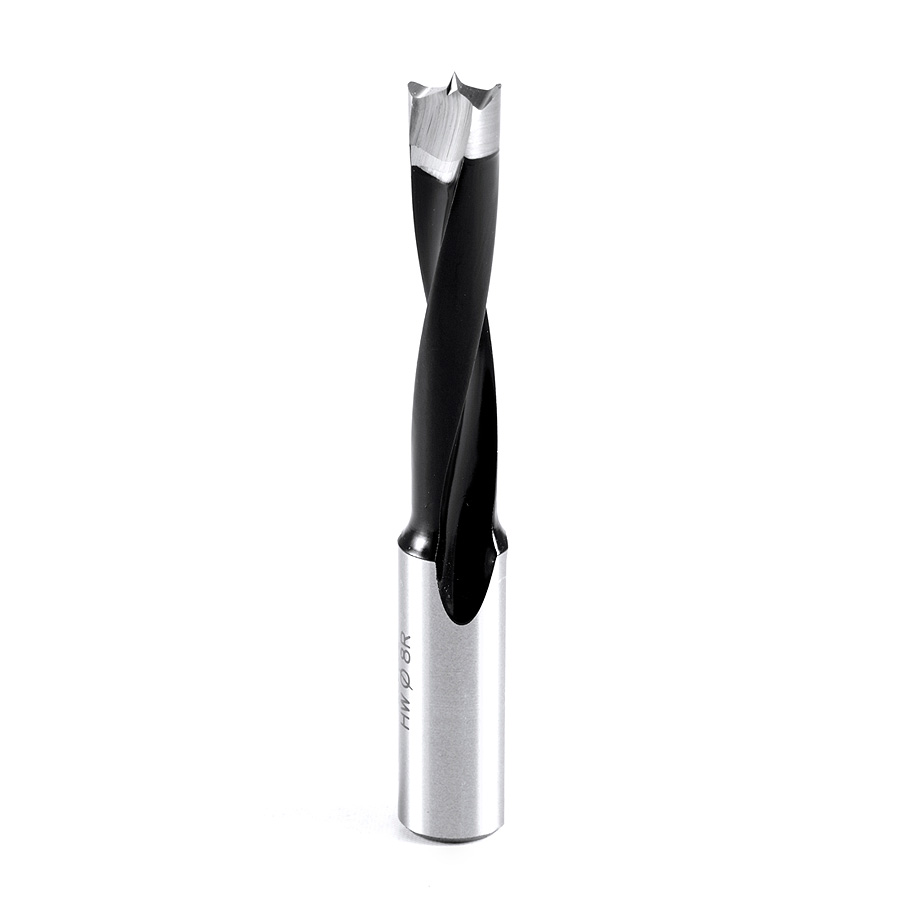

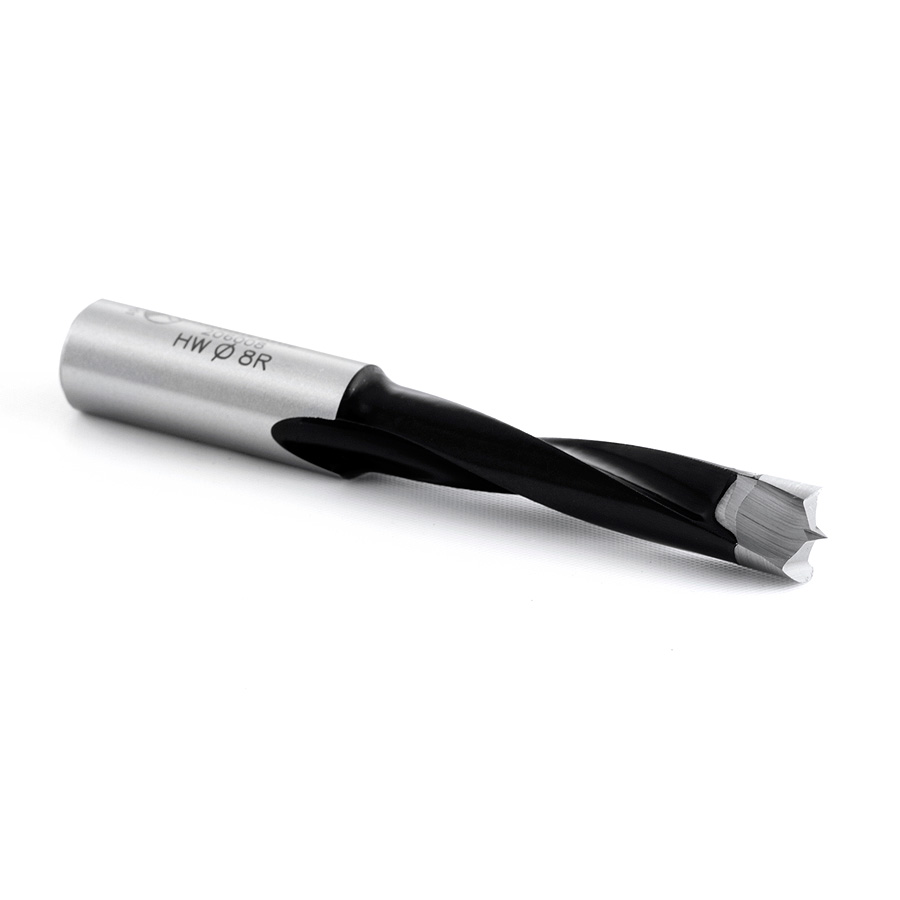

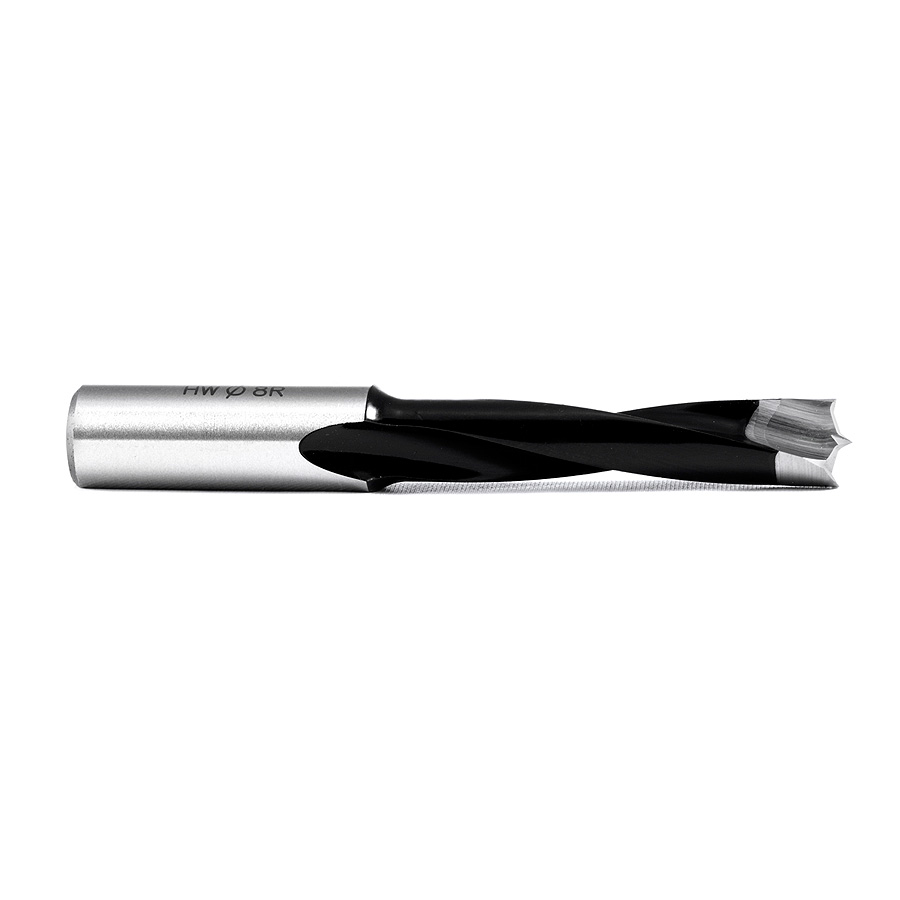

206008 High Performance Ditec™ Carbide Tipped Brad Point Boring Bit R/H 8mm Dia x 70mm Long x 10mm Shank

Amana 206008 High Performance Ditec™ Carbide Tipped Brad Point Boring Bit R/H 8mm Dia x 70mm Long x 10mm Shank

Name: Amana 206008 High Performance Ditec™ Carbide Tipped Brad Point Boring Bit R/H 8mm Dia x 70mm Long x 10mm Shank
SKU: Amana 206008
Availability: InStock

Original price was: $45.30.Current price is: $31.71.

8MM BRAD R/H 70MM DITEC 2000

UPC: 738685206089 SKU: Amana 206008 Categories: Amana Tool, Boring & Drilling Bits, Brad Point Boring Bits, High Performance Ditec™ Brad Point Boring Bits

Item Description

Ditec™ dowel drills feature special grinding and high performance carbide for ultra long-lasting applications.

Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Specifications

(D) Diameter	8mm
(B) Cutting Height	35mm
(d) Shank	10mm
Overall Length (L)	70mm
Rotation	Right Hand

Other Sizes Available

(B) Cutting Height	(D) Diameter	(d) Shank	Overall Length (L)	Rotation	Tool No.
27mm	5mm	10mm	57mm	Right	205005
35mm	5mm	10mm	70mm	Right	206005
27mm	5mm	10mm	57mm	Left	305005
35mm	5mm	10mm	70mm	Left	306005
27mm	8mm	10mm	57mm	Right	205008
27mm	8mm	10mm	57mm	Left	305008
35mm	8mm	10mm	70mm	Left	306008

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
