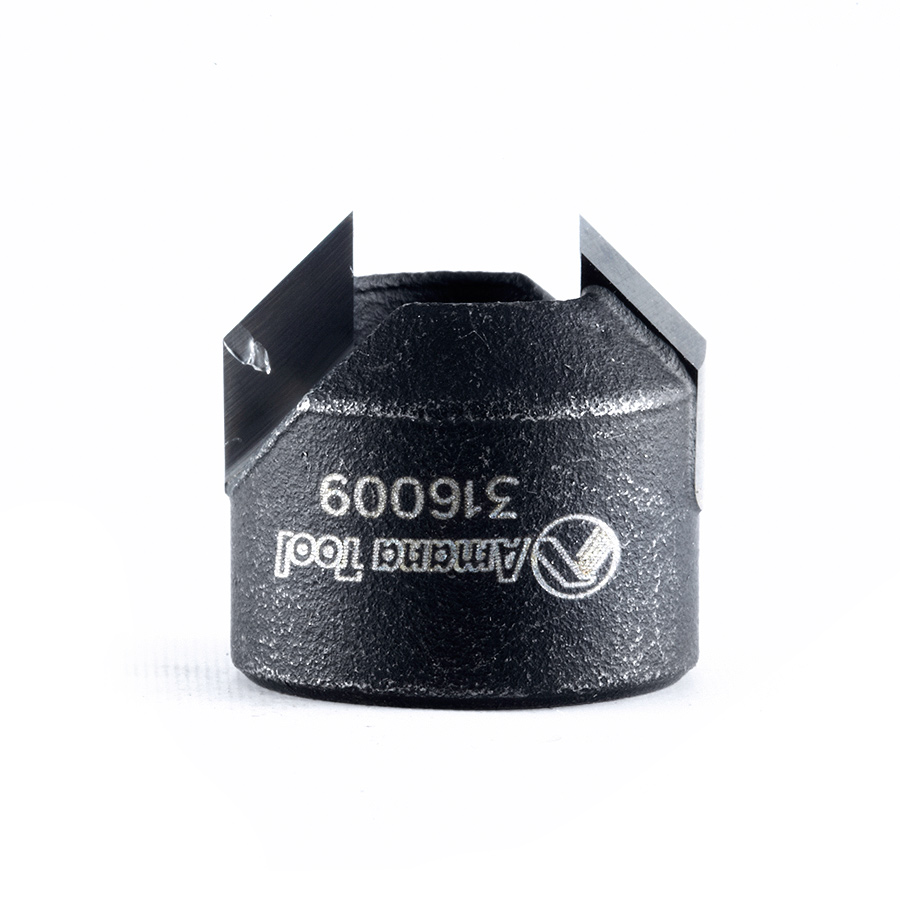

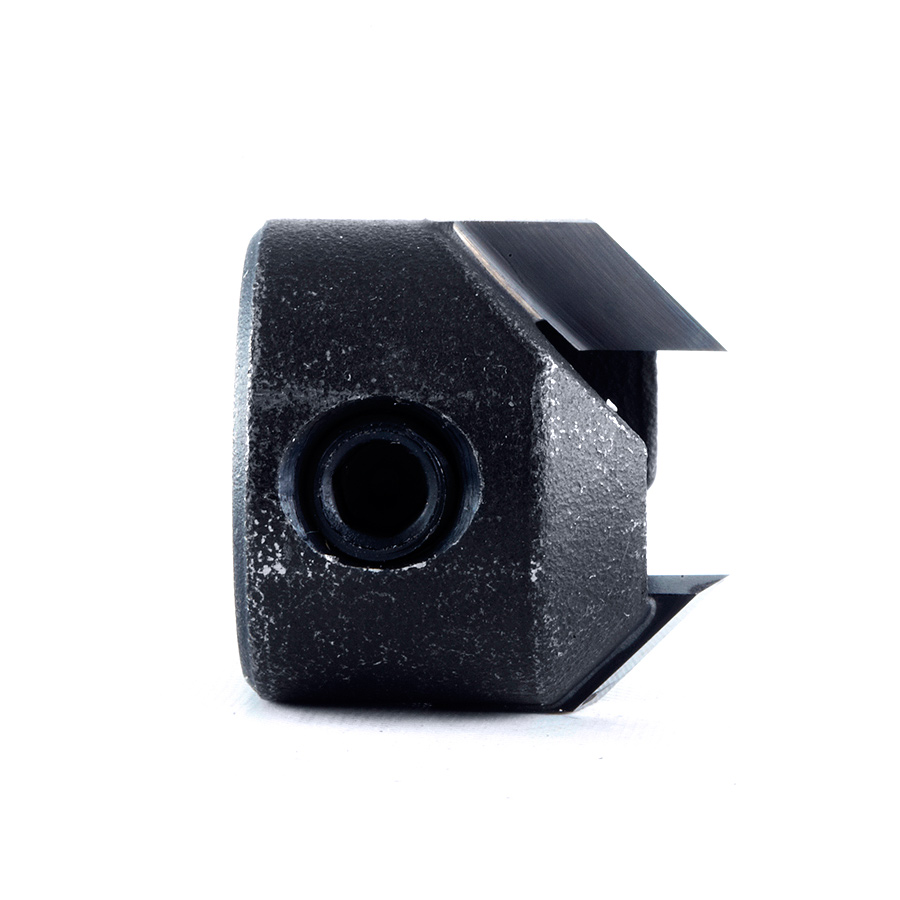

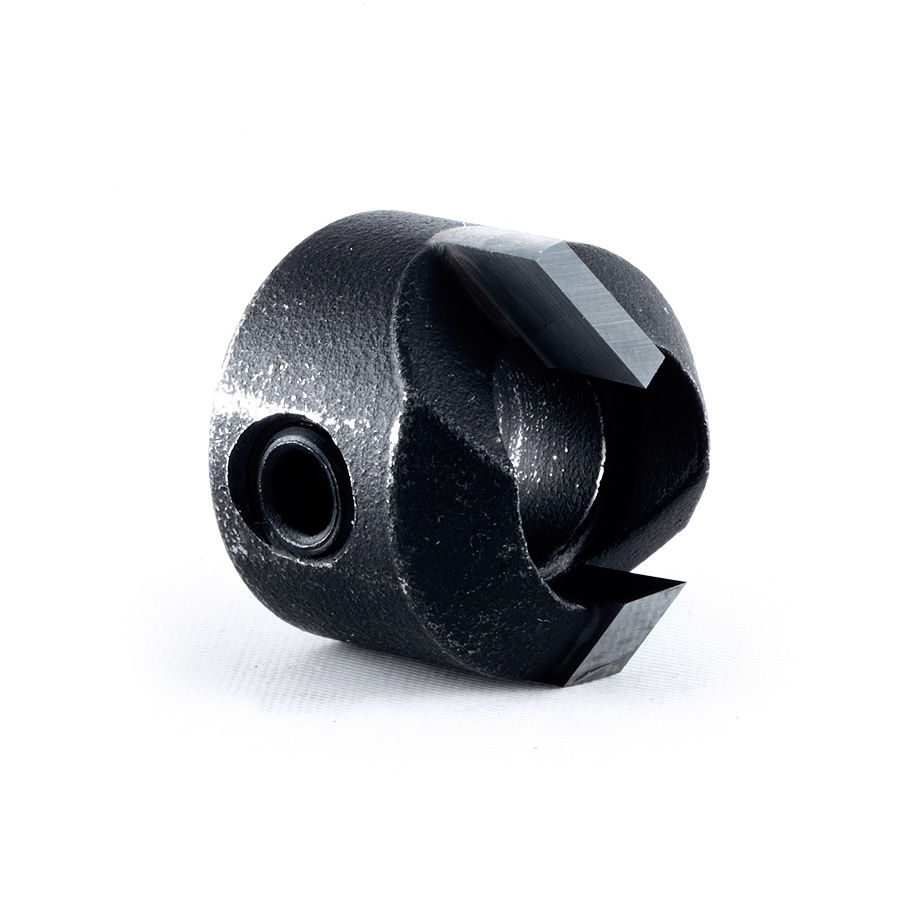

316009 Carbide Tipped Countersink R/H 18mm Dia x 16.5mm Long x 9mm Shank

Amana 316009 Carbide Tipped Countersink R/H 18mm Dia x 16.5mm Long x 9mm Shank

Name: Amana 316009 Carbide Tipped Countersink R/H 18mm Dia x 16.5mm Long x 9mm Shank
SKU: Amana 316009
Availability: InStock

Original price was: $54.85.Current price is: $38.40.

9MM X 18MM R/H COUNTERSINK

UPC: 738685316092 SKU: Amana 316009 Categories: Amana Tool, Boring & Drilling Bits, Countersink Bits, Metric Carbide Tipped Countersink Cutters for 10mm shank Boring Bits

Item Description

Application: Use with 10mm shank boring bits to drill and countersink for screws in one pass.Drills sold separately. Right hand tools rotate clockwise.

Replacement Parts

Tool No.	Set Screw
316009	67079

Specifications

(D) Diameter	18mm
(d) Shank	9mm
Overall Length (L)	16.5mm
Rotation	Right Hand

Other Sizes Available

(D) Diameter	(d) Shank	Overall Length (L)	Rotation	Tool No.
16mm	5mm	16.5mm	Right	316005
16mm	7mm	16.5mm	Right	316007
16mm	5mm	16.5mm	Left	416005
16mm	7mm	16.5mm	Left	416007
18mm	8mm	16.5mm	Right	316008
18mm	8mm	16.5mm	Left	416008
20mm	12mm	16.5mm	Left	416012

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
