Sale!

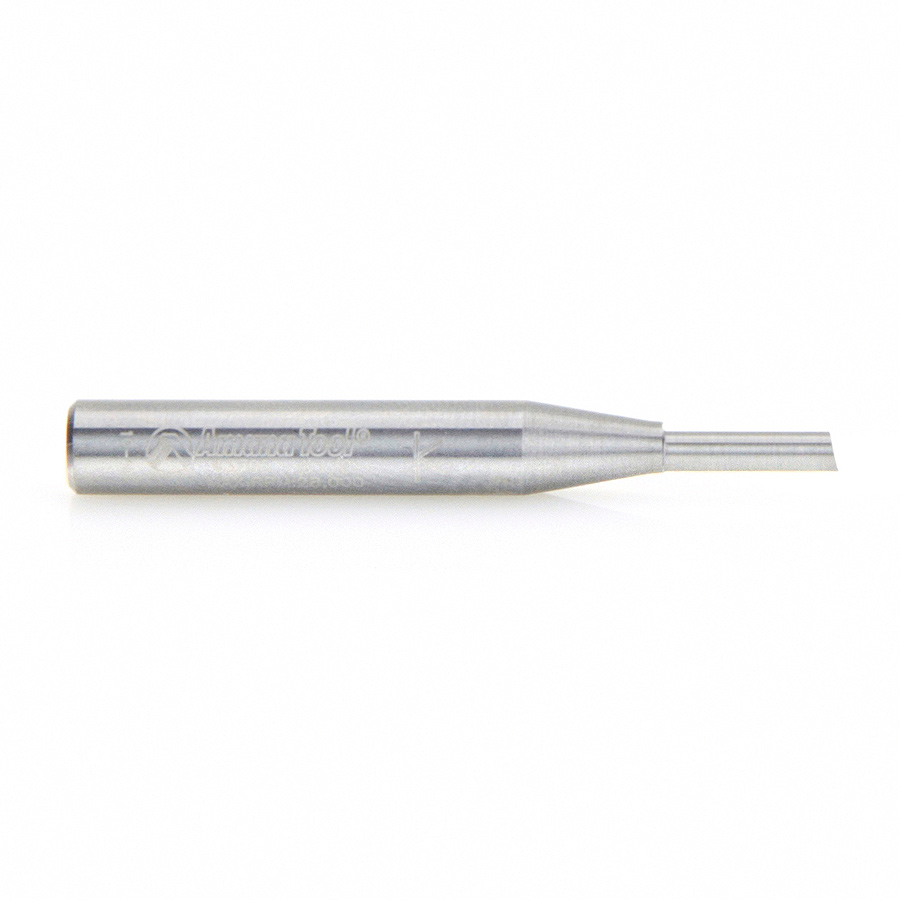

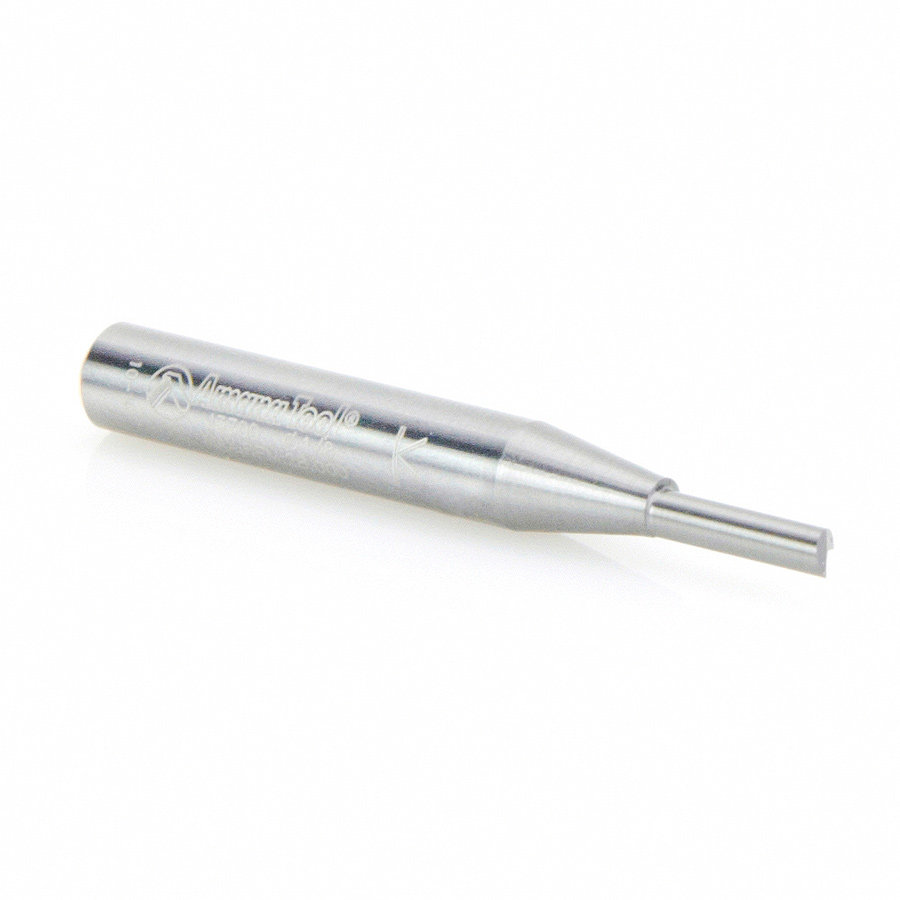

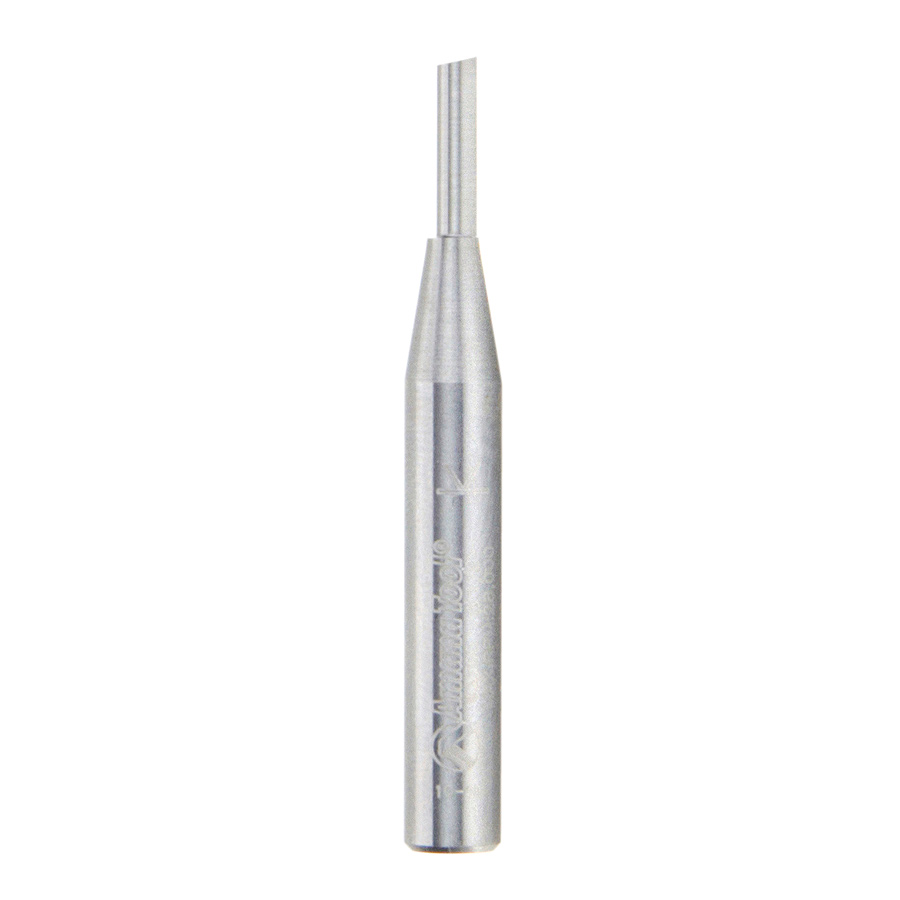

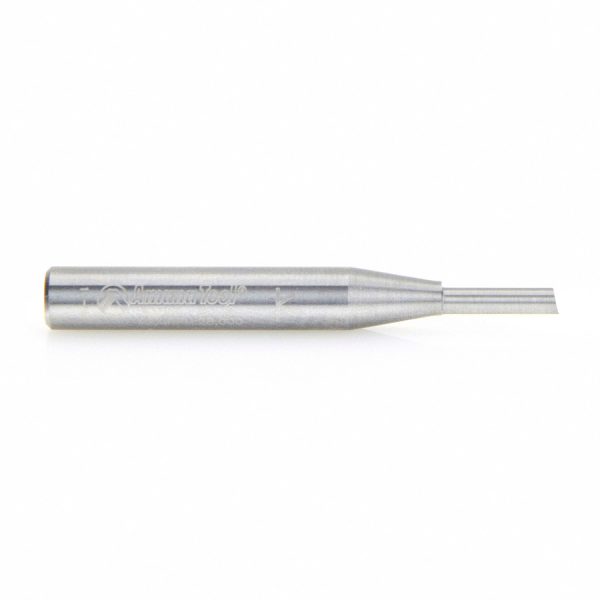

43700 Solid Carbide Single Flute Straight Plunge 1/8 Dia x 7/16 x 1/4 Inch Shank

Amana 43700 Solid Carbide Single Flute Straight Plunge 1/8 Dia x 7/16 x 1/4 Inch Shank

Name: Amana 43700 Solid Carbide Single Flute Straight Plunge 1/8 Dia x 7/16 x 1/4 Inch Shank
SKU: Amana 43700
Availability: InStock

Original price was: $51.25.Current price is: $38.44.

1 FLUTE PLUNGE 1/8″ DIA. S.C.

UPC: 738685437001 SKU: Amana 43700 Categories: Amana Tool, Router Bits, Solid Carbide Straight Plunge Router Bits, Straight Plunge Router Bits

Item Description

For high volume, high speed cutting in dense natural woods and abrasive wood composites, use solid carbide bits. Solid carbide dissipates heat more uniformly, extending tool life. Single flute bits cut faster, with better chip clearance. Two-flute bits cut more slowly, but leave a smooth finish. Maximum RPM 28,000.

Specifications

Diameter (D)	1/8
Cutting Height (B)	7/16
Shank (d)	1/4
Overall Length (L)	2
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-1/2	1	43509
5/32 (3.97mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	43800
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	43808
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	43716
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2 (50.80mm)	1	43720
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	1	43724
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	43812
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	2	43820
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	43824
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	2	43828

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
