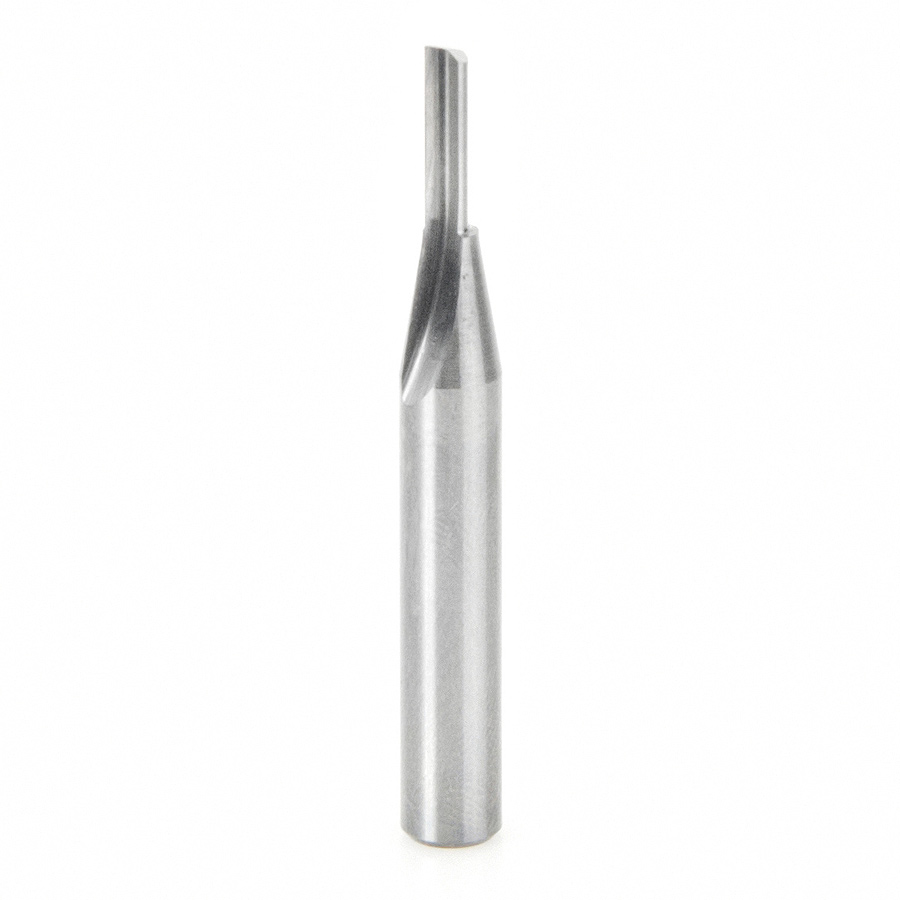

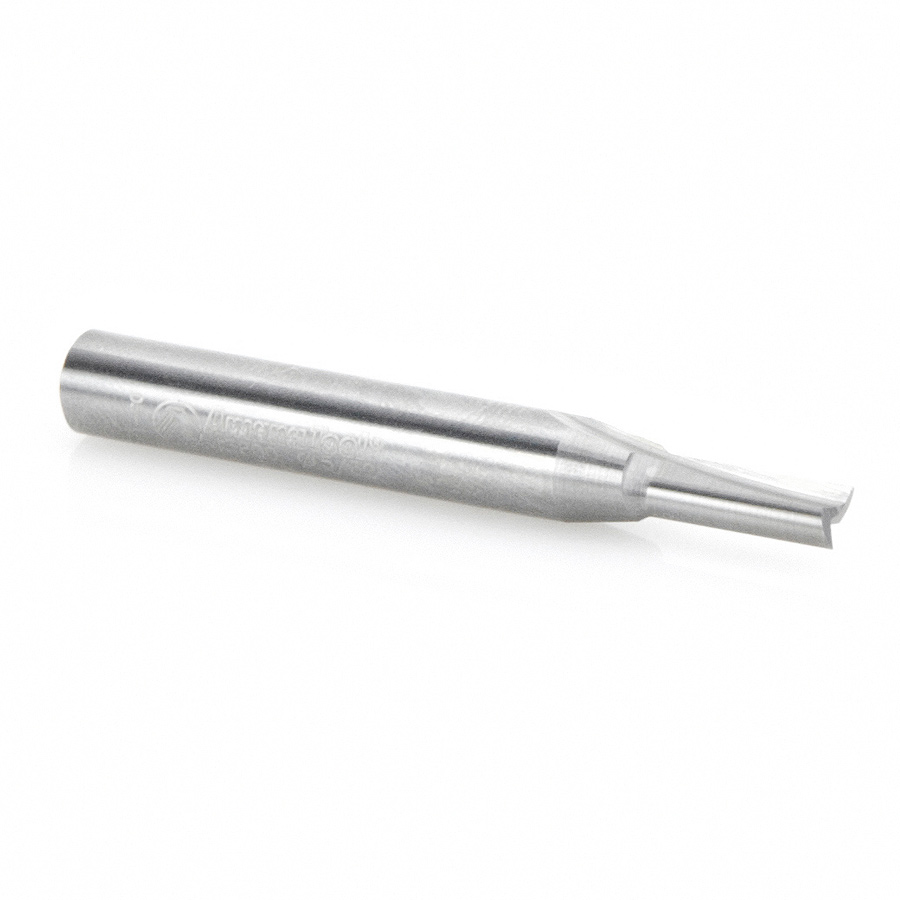

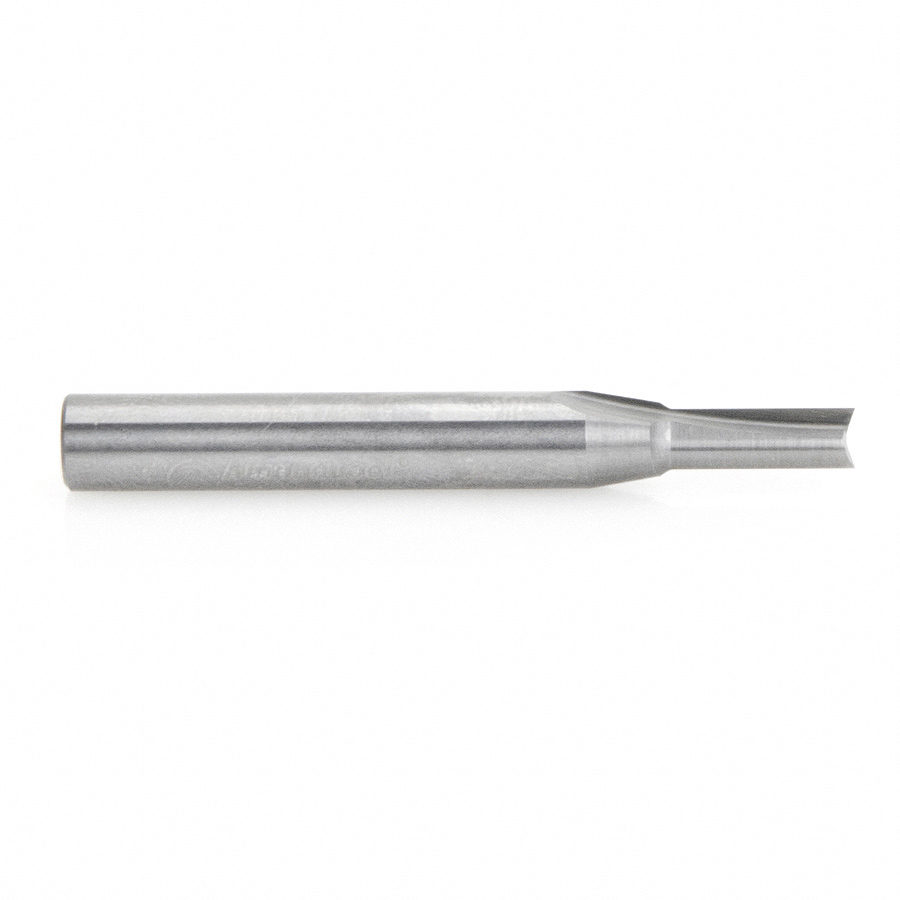

43800 Solid Carbide Straight Plunge 5/32 Dia x 7/16 x 1/4 Inch Shank Router Bit

Amana 43800 Solid Carbide Straight Plunge 5/32 Dia x 7/16 x 1/4 Inch Shank Router Bit

Name: Amana 43800 Solid Carbide Straight Plunge 5/32 Dia x 7/16 x 1/4 Inch Shank Router Bit
SKU: Amana 43800
Availability: InStock

Original price was: $51.25.Current price is: $38.44.

2 FLUTE PLUNGE 5/32″ DIA. S.C.

UPC: 738685438008 SKU: Amana 43800 Categories: Amana Tool, Router Bits, Solid Carbide Straight Plunge Router Bits, Straight Plunge Router Bits

Item Description

For high volume, high speed cutting in dense natural woods and abrasive wood composites, use solid carbide bits. Solid carbide dissipates heat more uniformly, extending tool life. Single flute bits cut faster, with better chip clearance. Two-flute bits cut more slowly, but leave a smooth finish. Maximum RPM 28,000.

Specifications

Diameter (D)	5/32
Cutting Height (B)	7/16
Shank (d)	1/4
Overall Length (L)	2
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Flutes	Shank (d)	Overall Length (L)	Tool No.
1/16 (1.59mm)	3/16 (4.76mm)	1	1/4 (6.35mm)	1-1/2	43509
1/16 (1.59mm)	3/16 (4.76mm)	2	1/8 (3.18mm)	1-1/2	46480
3/32 (2.38mm)	1/4 (6.35mm)	2	1/8 (3.18mm)	1-3/4	46482
1/8 (3.18mm)	7/16 (11.11mm)	1	1/4 (6.35mm)	2 (50.80mm)	43700
1/8 (3.18mm)	7/16 (11.11mm)	2	1/8 (3.18mm)	1-1/2	45199
3/16 (4.76mm)	1/2 (12.70mm)	2	1/4 (6.35mm)	2 (50.80mm)	43808
1/4 (6.35mm)	3/4 (19.05mm)	1	1/4 (6.35mm)	2 (50.80mm)	43716
1/4 (6.35mm)	1 (25.40mm)	1	1/4 (6.35mm)	2 (50.80mm)	43720
1/4 (6.35mm)	1 (25.40mm)	1	1/4 (6.35mm)	3 (76.20mm)	43724
1/4 (6.35mm)	1/2 (12.70mm)	2	1/4 (6.35mm)	2 (50.80mm)	43812
1/4 (6.35mm)	3/4 (19.05mm)	2	1/4 (6.35mm)	2-1/2	43820
1/4 (6.35mm)	1 (25.40mm)	2	1/4 (6.35mm)	2-1/2	43824
1/4 (6.35mm)	1 (25.40mm)	2	1/4 (6.35mm)	2-7/8	43828
5/16 (7.94mm)	1 (25.40mm)	2	1/2 (12.70mm)	2-3/4	45412
5/16 (7.94mm)	1 (25.40mm)	2	1/2 (12.70mm)	2-3/4	45412-5
3/8 (9.53mm)	1-1/4	2	1/2 (12.70mm)	3 (76.20mm)	45415
3/8 (9.53mm)	1-1/4	2	1/2 (12.70mm)	3 (76.20mm)	45415-5
3/4 (19.05mm)	1-1/4	2	1/2 (12.70mm)	2-7/8	45440-5

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
