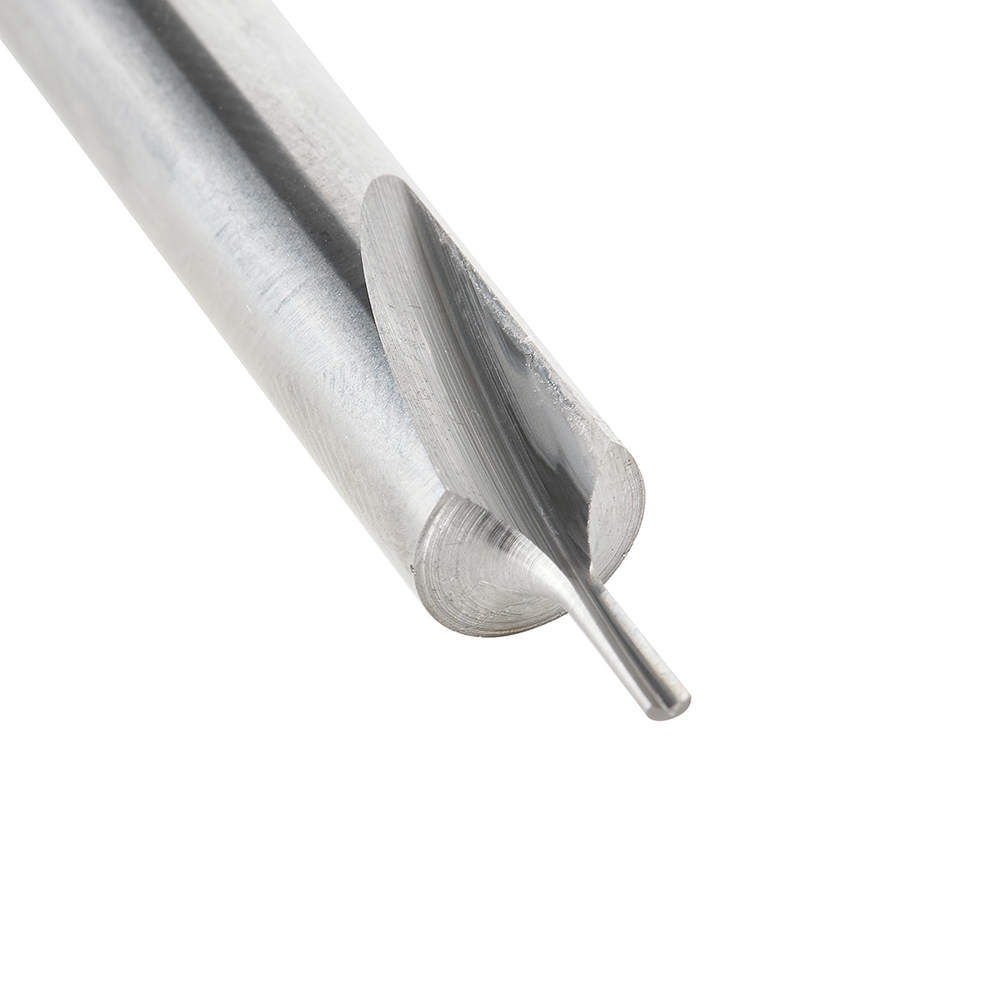

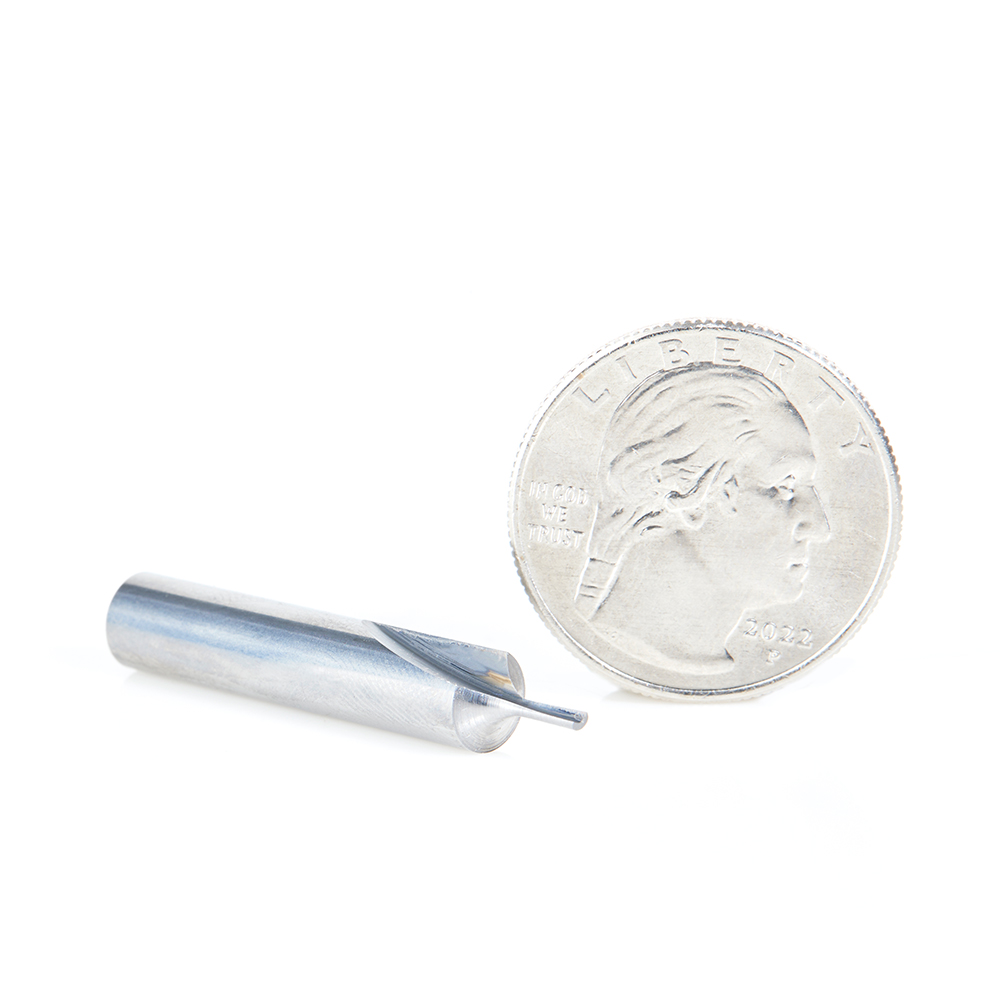

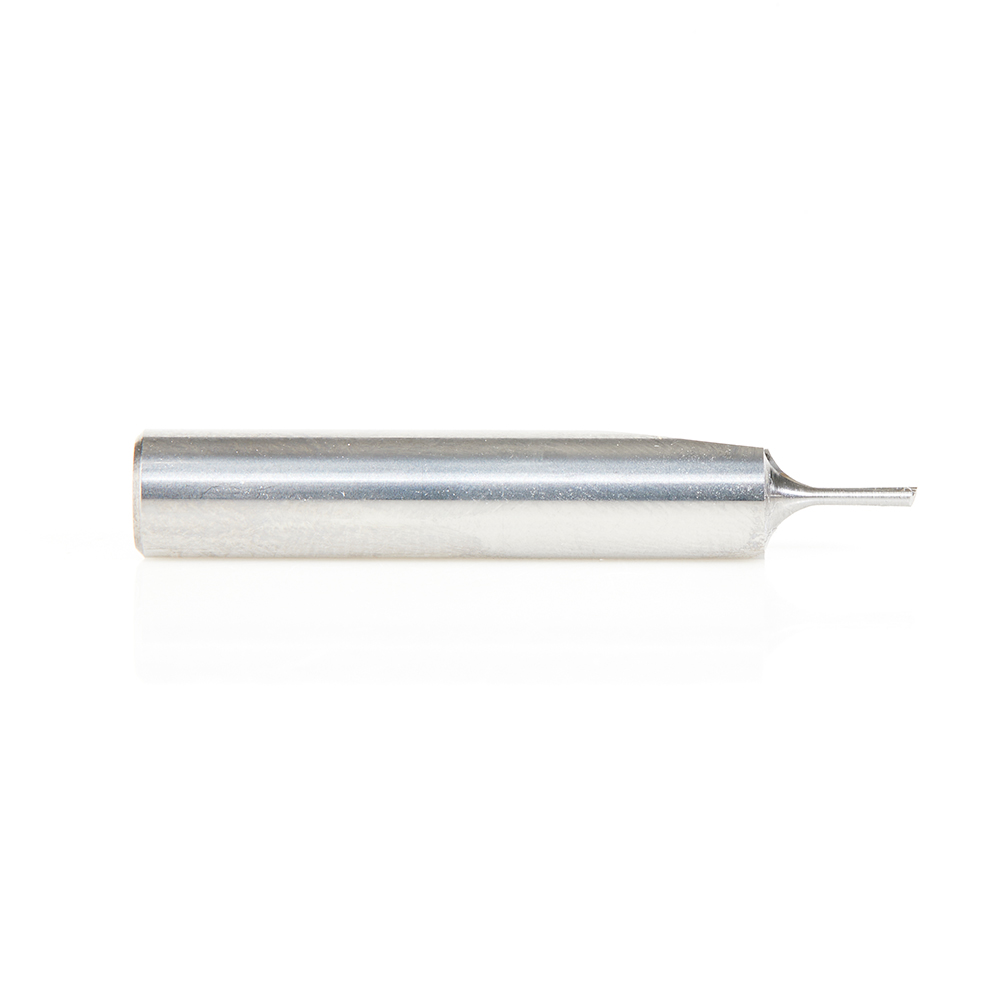

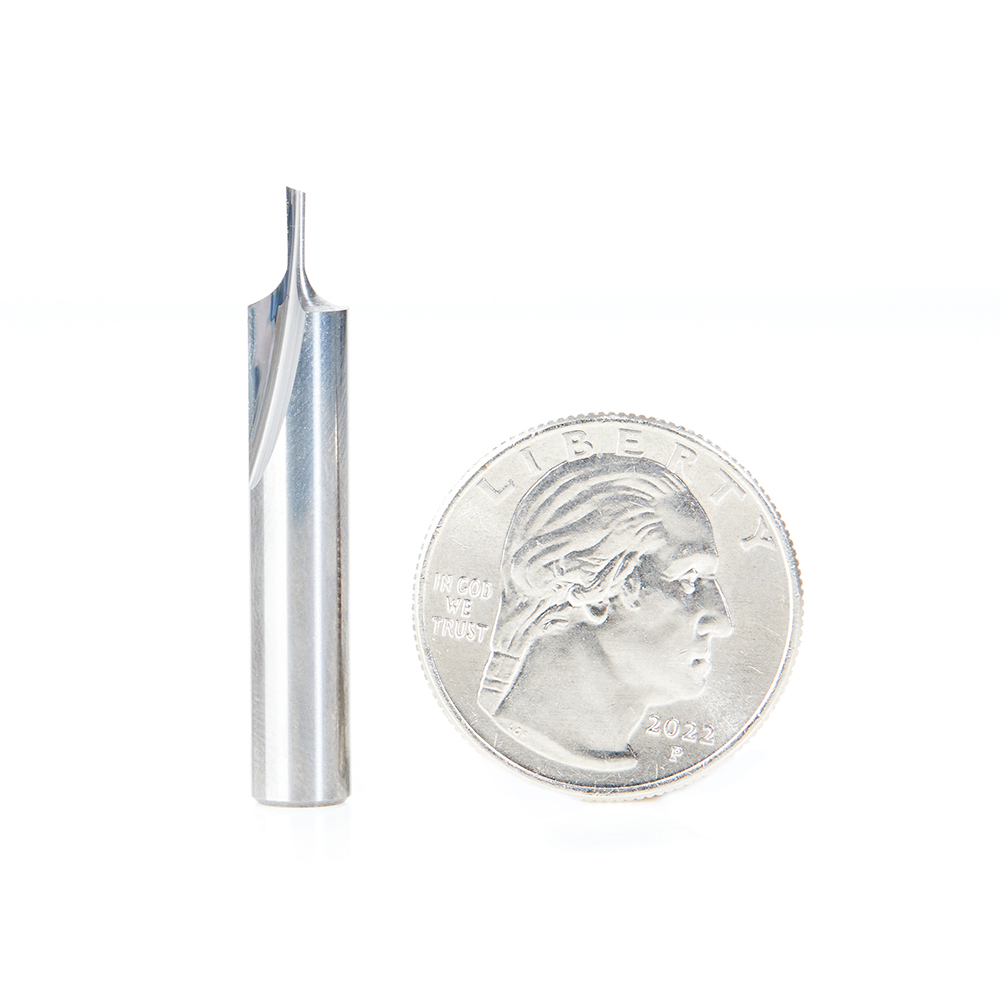

43509 Solid Carbide Single Flute Straight Plunge 1/16 Dia x 3/16 x 1/4 Inch Shank

Amana 43509 Solid Carbide Single Flute Straight Plunge 1/16 Dia x 3/16 x 1/4 Inch Shank

Name: Amana 43509 Solid Carbide Single Flute Straight Plunge 1/16 Dia x 3/16 x 1/4 Inch Shank
SKU: Amana 43509
Availability: InStock

Original price was: $66.05.Current price is: $49.54.

1 FL PLUNGE 1/16″DIAx1/4″ S.C.

UPC: N/A SKU: Amana 43509 Categories: Amana Tool, Router Bits, Solid Carbide Straight Plunge Router Bits, Straight Plunge Router Bits

Item Description

For high volume, high speed cutting in dense natural woods and abrasive wood composites, use solid carbide bits. Solid carbide dissipates heat more uniformly, extending tool life. Single flute bits cut faster, with better chip clearance. Two-flute bits cut more slowly, but leave a smooth finish. Maximum RPM 28,000.

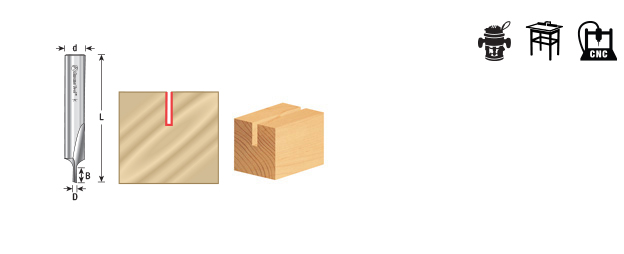

Specifications

Diameter (D)	1/16
Cutting Height (B)	3/16
Shank (d)	1/4
Overall Length (L)	1-1/2
Flutes	1

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
5/32 (3.97mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	43800
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	43808
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1	43716
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2 (50.80mm)	1	43720
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	1	43724
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	43812
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	2	43820
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	43824
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	2	43828

Weight	0.04 lbs
