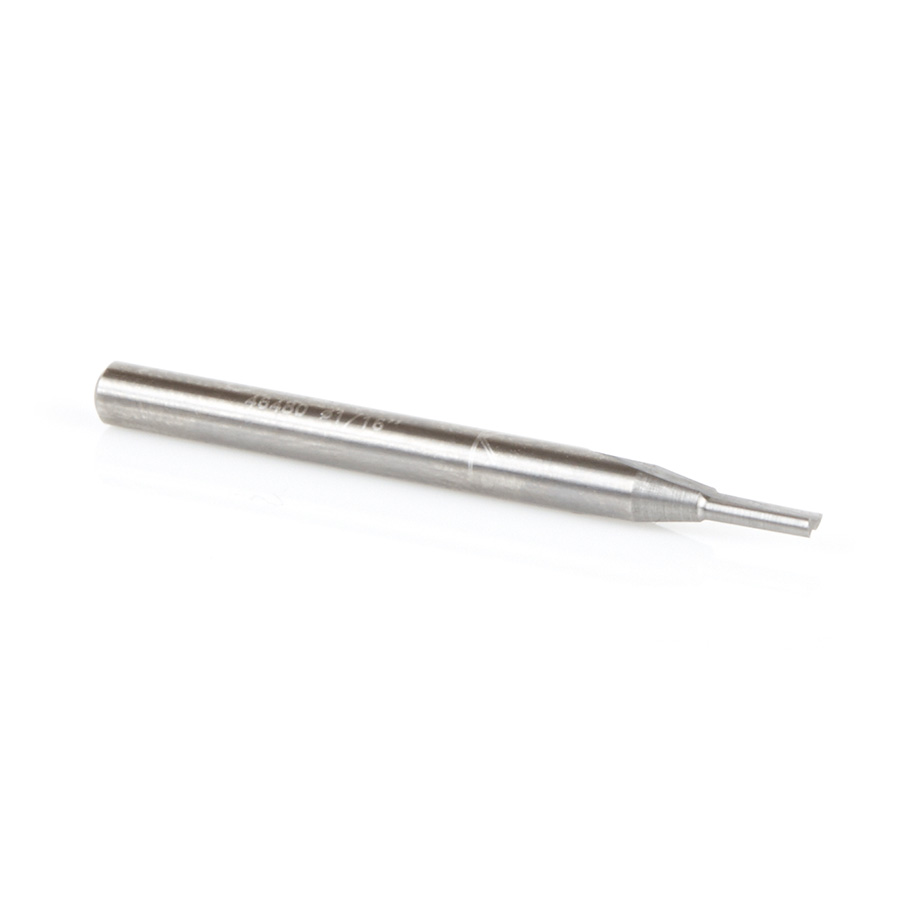

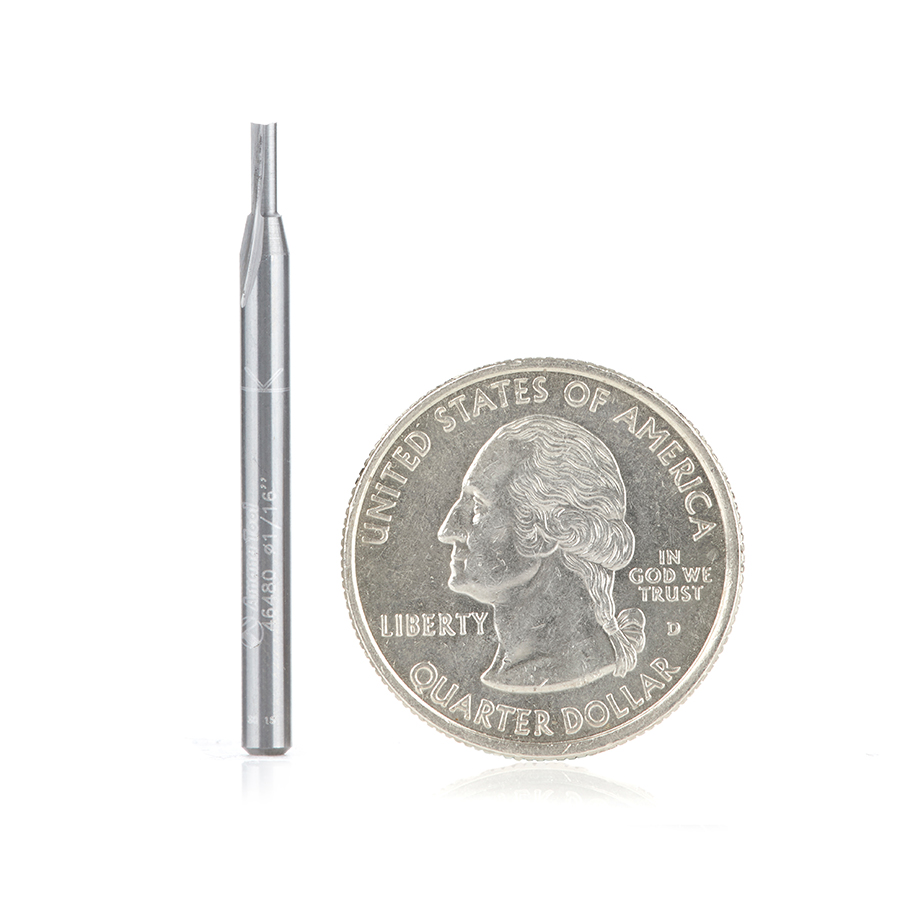

46480 Solid Carbide Straight Plunge High Production 1/16 Dia x 3/16 x 1/8 inch Shank Router Bit

Amana 46480 Solid Carbide Straight Plunge High Production 1/16 Dia x 3/16 x 1/8 inch Shank Router Bit

Name: Amana 46480 Solid Carbide Straight Plunge High Production 1/16 Dia x 3/16 x 1/8 inch Shank Router Bit
SKU: Amana 46480
Availability: InStock

Original price was: $37.60.Current price is: $28.20.

2 FL SC 1/16″ DIA. 1/8″ SHANK

UPC: 738685464809 SKU: Amana 46480 Categories: Amana Tool, Router Bits, Solid Carbide Straight Plunge Router Bits, Straight Plunge Router Bits

Item Description

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced. With solid carbide cutting edge.

Vectric compatible tool file for 46480 available for download,click here.

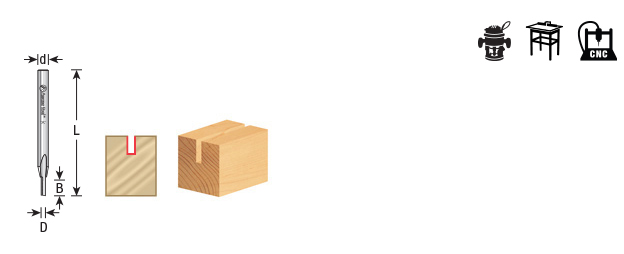

Specifications

Diameter (D)	1/16
Cutting Height (B)	3/16
Shank (d)	1/8
Overall Length (L)	1-1/2
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-5/8	2	45190
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-5/8	2	45190-5
5/64 (1.98mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-3/4	2	45191
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	45192
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	45192-5
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-3/4	2	46482
1/8 (3.18mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-1/2	2	45199
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45200
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45200-LH
5/32 (3.97mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	43800
5/32 (3.97mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45201
3/16 (4.76mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	43808
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45202
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	45202-5
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	45239
13/64 (5.16mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45217
7/32 (5.56mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45206
15/64 (5.95mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45203
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	43812
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	2	43820
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	43824
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	2	43828
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	45204
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-1/4	2	45205
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45208
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45208-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45210
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	45210-01
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	2	45210-3
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-3/4	2	45210-3.75
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45210-LH
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	2	45211
9/32 (7.14mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45212
9/32 (7.14mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	2	45212-01
5/16 (7.94mm)	1 (25.40mm)	1/4 (6.35mm)	2-3/4	2	45214-01
5/16 (7.94mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45242
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412-5
3/8 (9.53mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45216
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45218
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45218-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2 (50.80mm)	2	45218S
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-1/2	2	45220
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415-5
13/32 (10.32mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	45193
7/16 (11.11mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/8	2	45222
15/32 (11.91mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45223
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	1-3/4	2	45224
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	45224-01
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/8	2	45226
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	2	45244
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-1/2	2	45245
9/16 (14.29mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/8	2	45227
19/32 (15.08mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	45238-01
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45228
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45228-5
5/8 (15.88mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45247
5/8 (15.88mm)	1-1/4	1/4 (6.35mm)	2-7/8	2	45249
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45432
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45432-5
11/16 (17.46mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45229
23/32 (18.26mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45231
3/4 (19.05mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	2	45181
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45230
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45230-5
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	45251
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	2	45251-01
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1+1	RC-1024
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45443
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45443-5
13/16 (20.64mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45232
7/8 (22.23mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45234
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45446
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	45446-5
1 (25.40mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45236
–	–	–	–	—-	AMS-103
–	–	–	–	—-	DRB-420

Weight	0.02 lbs
