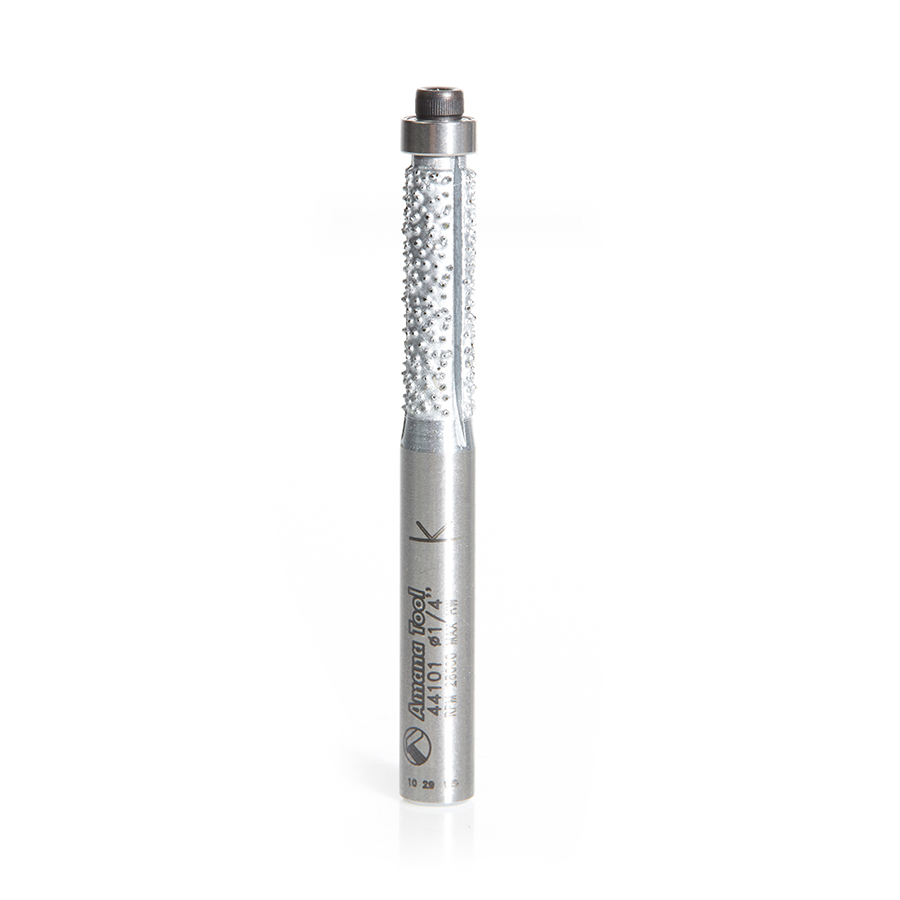

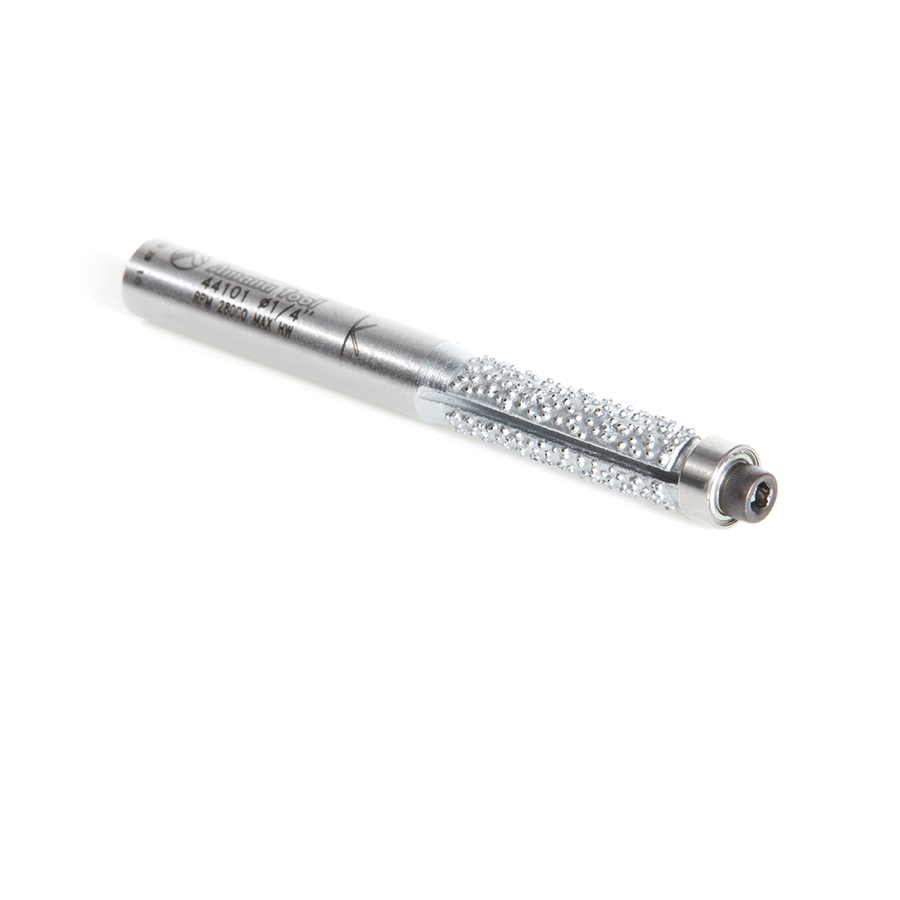

44101 Fiberglass Carbon Fiber and Composite Cutting Diamond Coated Flush Trim Grit with Ball Bearing 1/4 Dia x 3/4 x 1/4 Inch Shank

Amana 44101 Fiberglass Carbon Fiber and Composite Cutting Diamond Coated Flush Trim Grit with Ball Bearing 1/4 Dia x 3/4 x 1/4 Inch Shank

Name: Amana 44101 Fiberglass Carbon Fiber and Composite Cutting Diamond Coated Flush Trim Grit with Ball Bearing 1/4 Dia x 3/4 x 1/4 Inch Shank
SKU: Amana 44101
Availability: InStock

Original price was: $206.30.Current price is: $154.73.

1/4″ FIBERGLASS FLUSH TRIM

UPC: 738685441015 SKU: Amana 44101 Categories: Amana Tool, Fiberglass Cutting Router Bits, Router Bits, Solid Carbide Fiberglass, Carbon Fiber & Composite Cutting Router Bits

Item Description

This tool has a special diamond coating which results in longer tool life than the electro-plated brazing method.

Used in the mobile/motor home, caravan, star wagon, trailer, coach, boat and RV industry to trim laminated fiberglass boards. Cuts fast and clean.

Diamond grit size is D427 (μm) / 40# (Mesh).

Excellent for Cutting:

Fiberglass
Fiberglass PCB Board
Carbon Fiber
Carbon Fiber Reinforced Polymer (CFRP)
Composites
Metal Matrix Compsoites (MMC)
Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
Thermoset Composites
Thermosetting Plastics

Specifications

Diameter (D)	1/4
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-9/16
Replacement Bearing	47723

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Tool No.
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-9/16	47723	44102
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	47702	44103
1/2 (12.70mm)	1-3/4	1/2 (12.70mm)	4-1/4	47706	44100
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	3-1/4	47706	44105

Weight	0.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
