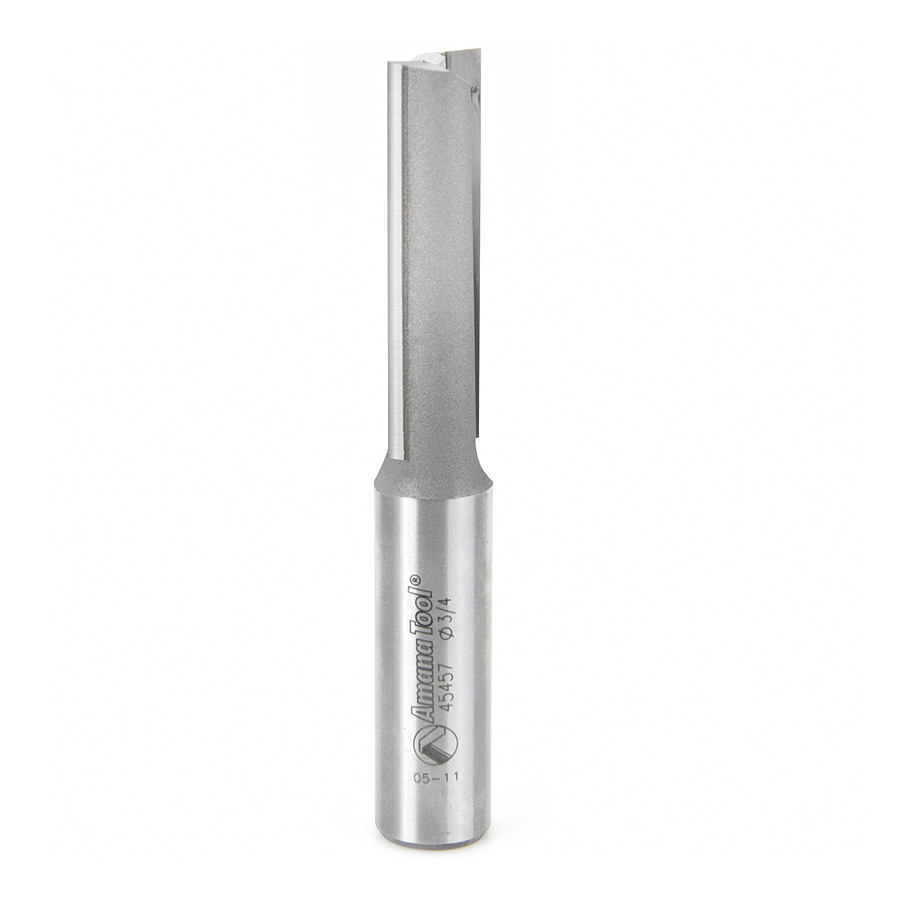

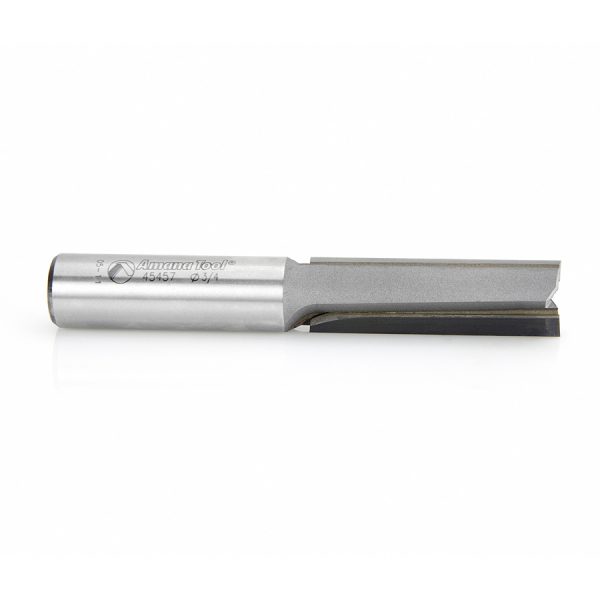

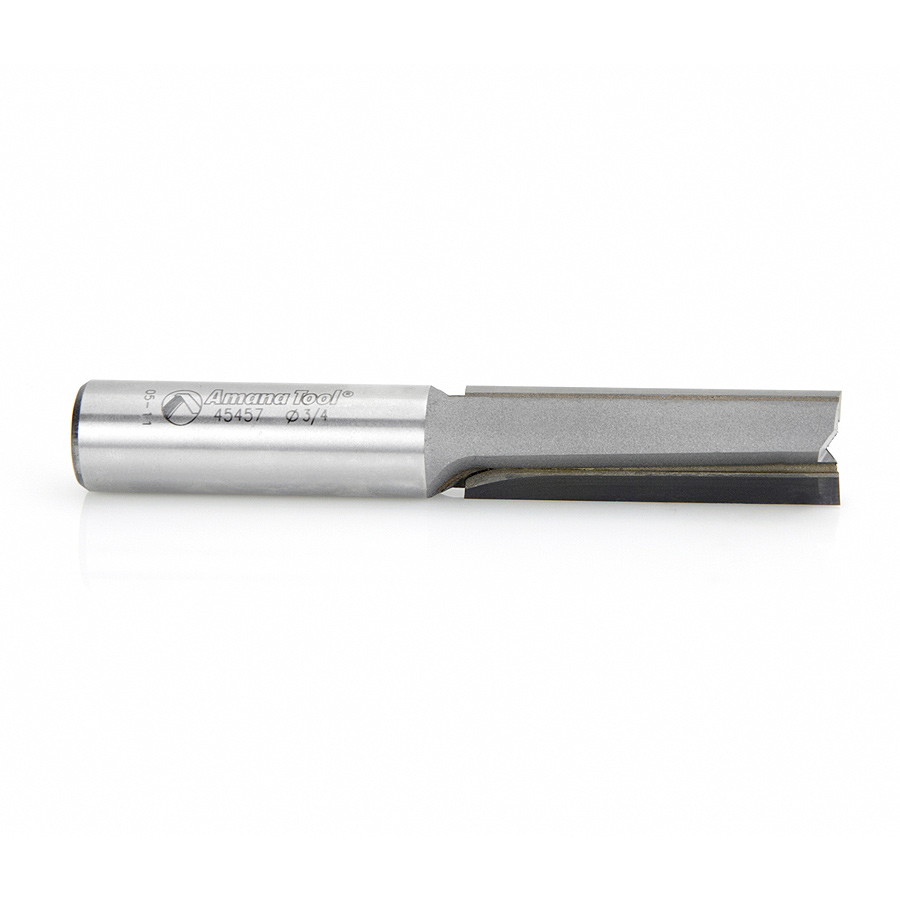

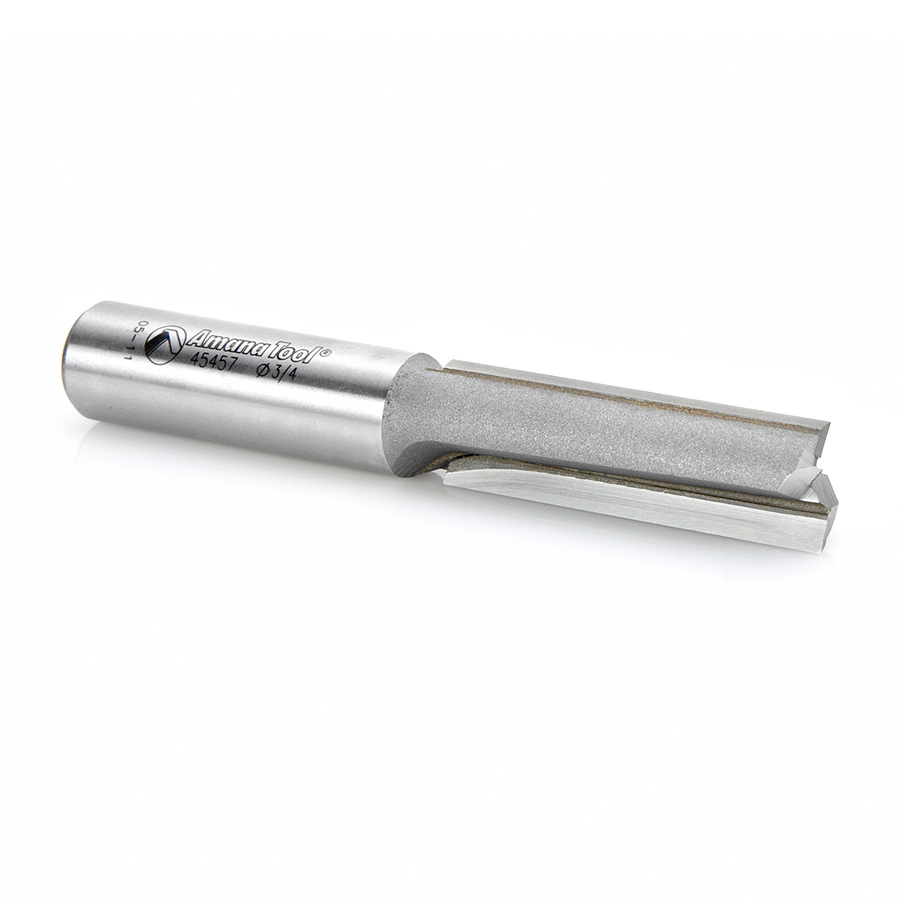

45457 CNC Carbide Tipped Straight Plunge High Production 3/4 Dia x 2-1/2 x 3/4 Shank L/H

Amana 45457 CNC Carbide Tipped Straight Plunge High Production 3/4 Dia x 2-1/2 x 3/4 Shank L/H

Name: Amana 45457 CNC Carbide Tipped Straight Plunge High Production 3/4 Dia x 2-1/2 x 3/4 Shank L/H
SKU: Amana 45457
Availability: InStock

Original price was: $117.25.Current price is: $87.94.

2 FLUTE 3/4 DIA 3/4 SHANK L/H

UPC: 738685854570 SKU: Amana 45457 Categories: Amana Tool, CNC Router Bits, Straight Plunge CNC Router Bits, Straight Plunge Open Flute CNC Router Bits

Item Description

For high-volume production work with a CNC router use one of these plunge-cutting straights. Long, 3/4″ shanks extend the bit’s reach enhancing its versatility. Open-flute design promotes rapid chip clearance, necessary for high feed rates. Left-hand configuration for counter-clockwise rotation “Topmaster” machines.

Note:** Chipbreaker option (special order): Designed to cut chipboard and MDF at high automatic feed rates found on CNC machines. Each flute is ground so that the chipbreakers are staggered to each other, giving a straight cut. To order, add ‘CB’ suffix (ie: #45454-CB).

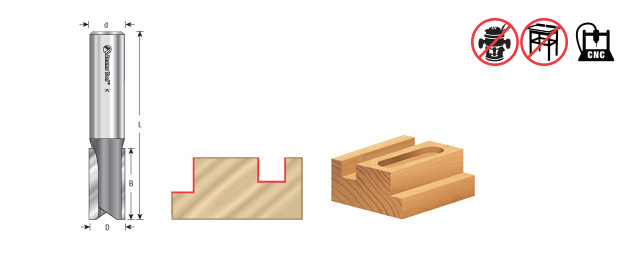

Specifications

Diameter (D)	3/4
Cutting Height (B)	2-1/2
Shank (d)	3/4
Overall Length (L)	5
Type	Left Hand
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Type	Tool No.
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	–	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	–	45412-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	–	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	–	45415-5
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45432
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45432-5
3/4 (19.05mm)	2 (50.80mm)	3/4 (19.05mm)	4 (101.60mm)	2	Right Hand	45455
3/4 (19.05mm)	2-1/2	3/4 (19.05mm)	4-1/2	2	Right Hand	45456
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45443
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45443-5
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45446
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45446-5
2 (50.80mm)	1-1/4	3/4 (19.05mm)	2-7/8	2	–	45480-CNC
1-1/2	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45452-CNC

Weight	0.5 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
