Sale!

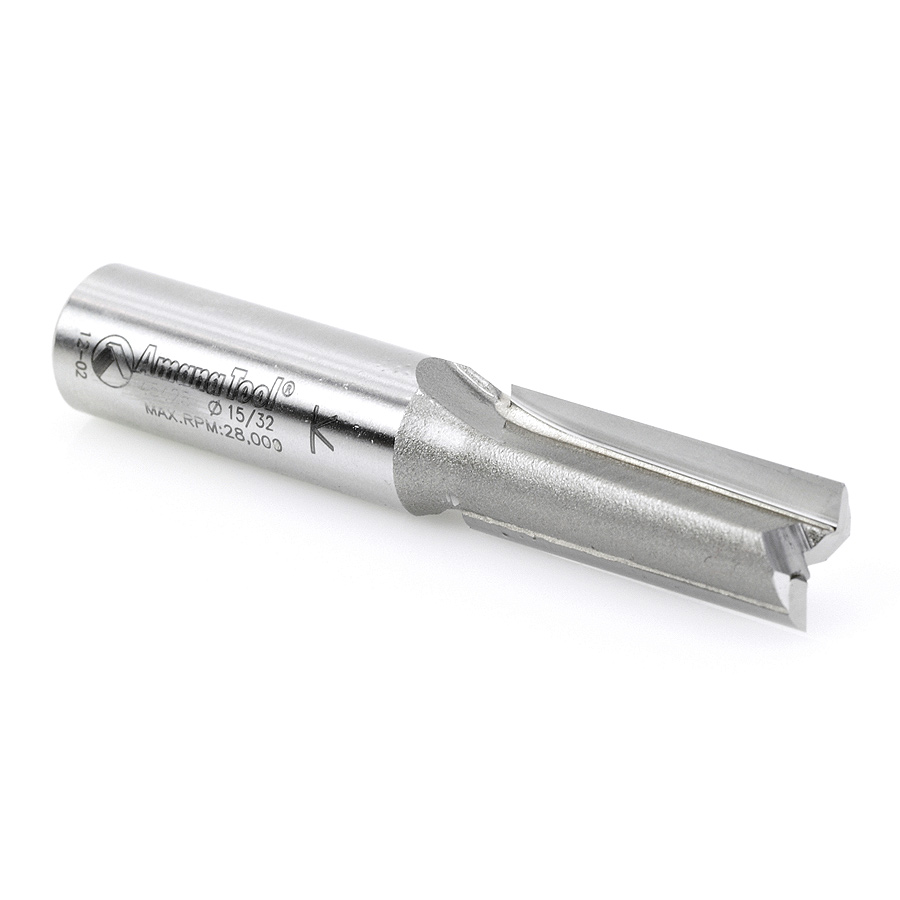

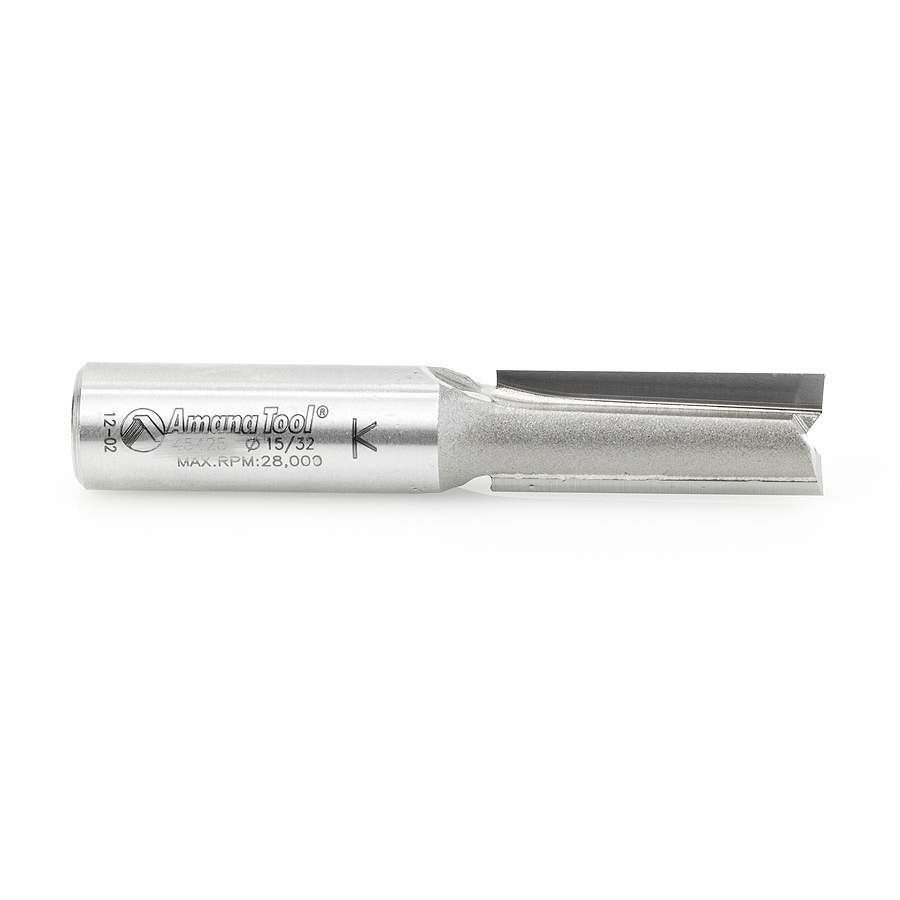

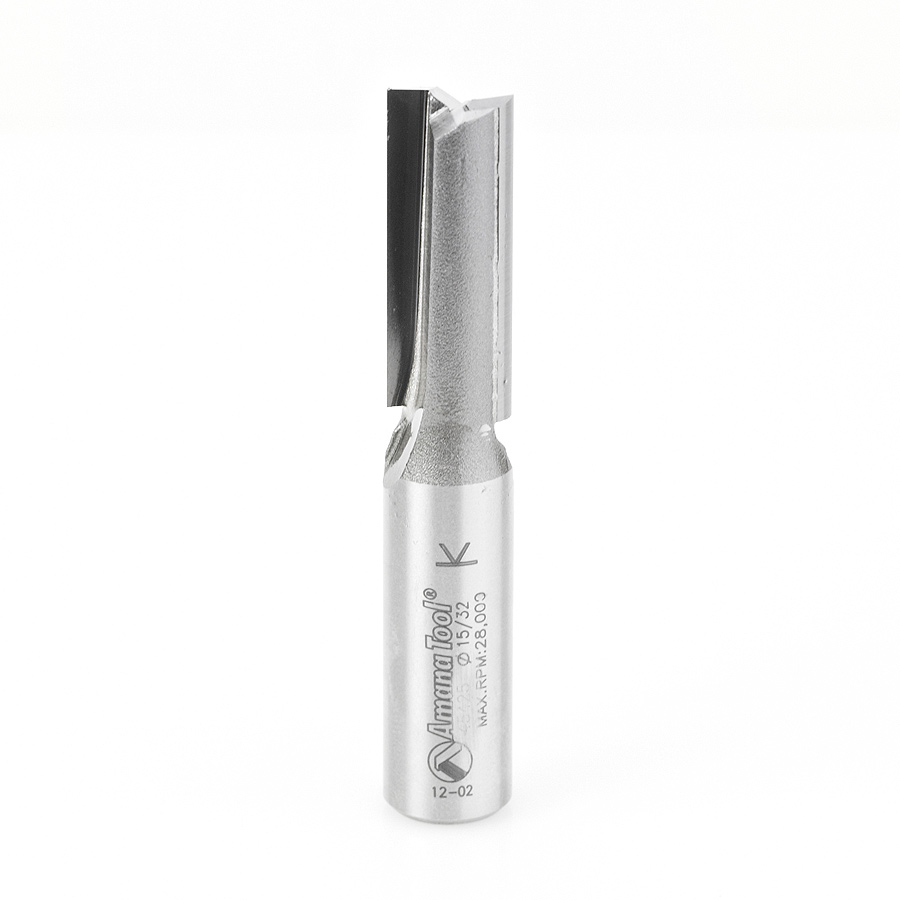

45488 Carbide Tipped Straight Plunge 12mm Dia x 1-1/4 x 1/2 Inch Shank

Amana 45488 Carbide Tipped Straight Plunge 12mm Dia x 1-1/4 x 1/2 Inch Shank

Name: Amana 45488 Carbide Tipped Straight Plunge 12mm Dia x 1-1/4 x 1/2 Inch Shank
SKU: Amana 45488
Availability: InStock

Original price was: $44.70.Current price is: $33.53.

2 FLUTE 12MM DIAM. 1/2 SHANK

UPC: 738685454886 SKU: Amana 45488 Categories: Amana Tool, Router Bits, Straight Plunge Metric Router Bits, Straight Plunge Router Bits

Item Description

Many standard metric plunge bits from 3mm through 51mm are available on

special order. Please allow 2 to 3 weeks for delivery. See below for metric sized

plywood bits.

Specifications

Diameter (D)	12mm
Cutting Height (B)	1-1/4
Shank (d)	1/2
Overall Length (L)	2-7/8
Plywood Thickness	12mm
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Plywood Thickness	Flutes	Tool No.
15/64 (5.95mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1/4	2	45203
6mm	25mm	6mm	57mm	–	2	45213
8mm	25mm	8mm	63mm	–	2	45215
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	45412-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	45415-5
10mm	19mm	1/4 (6.35mm)	2-1/8	–	2	45219
10mm	19mm	1/2 (12.70mm)	2-1/2	–	2	45417
12mm	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	12mm	2	45240
14mm	25mm	1/2 (12.70mm)	2-5/8	–	2	45431
18mm	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	18mm	2	45256
18mm	1-1/4	1/2 (12.70mm)	2-7/8	18mm	2	45498

Weight	0.14 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
