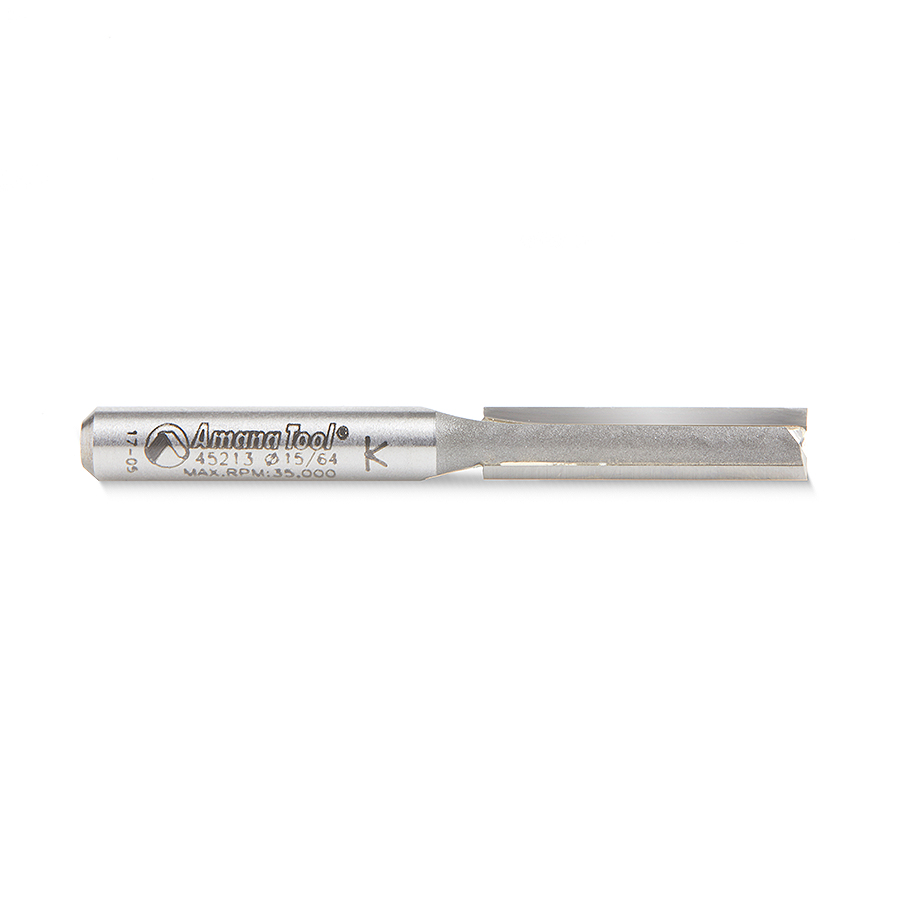

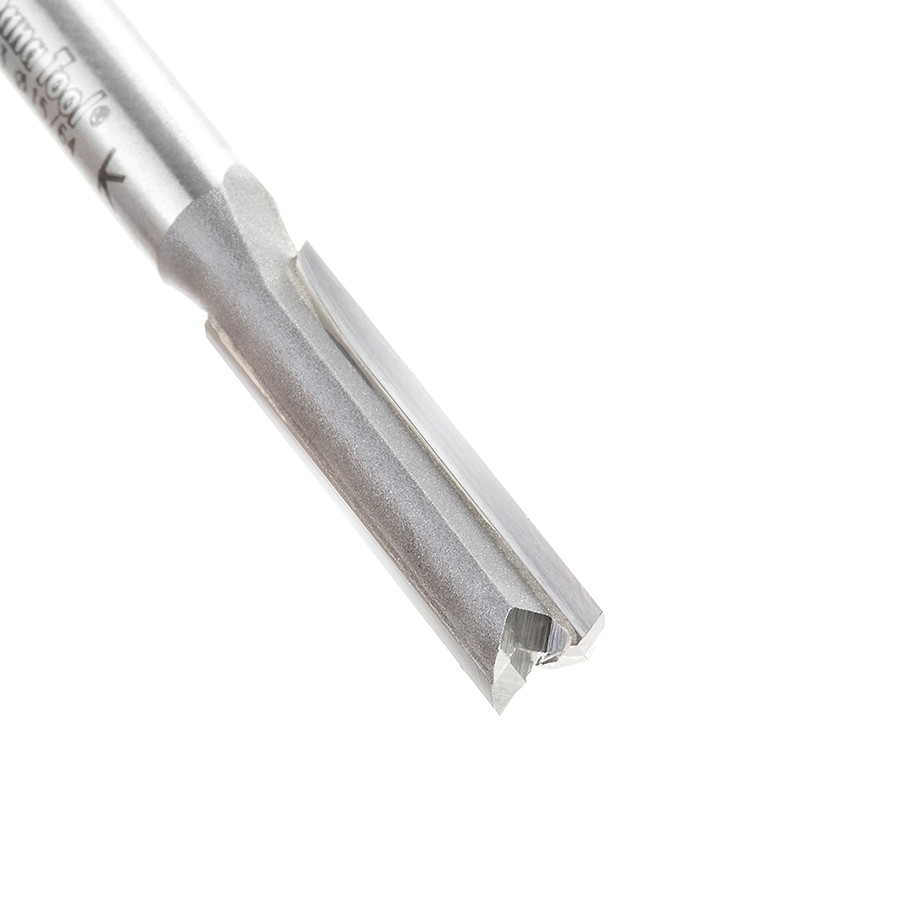

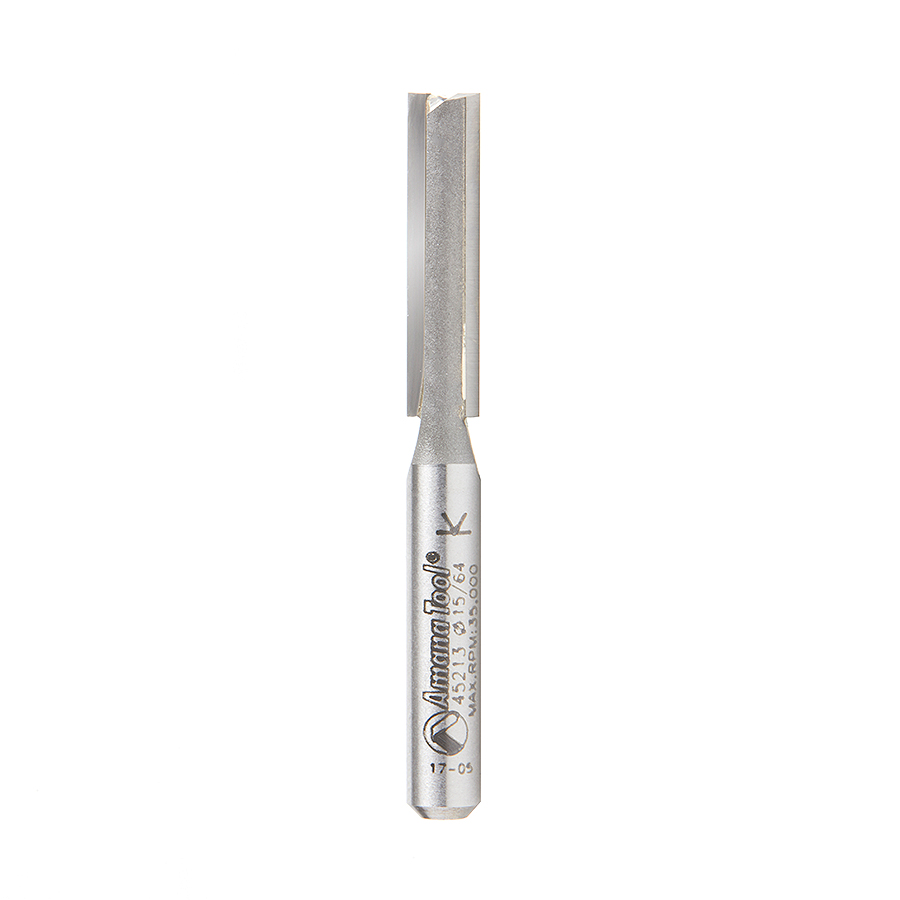

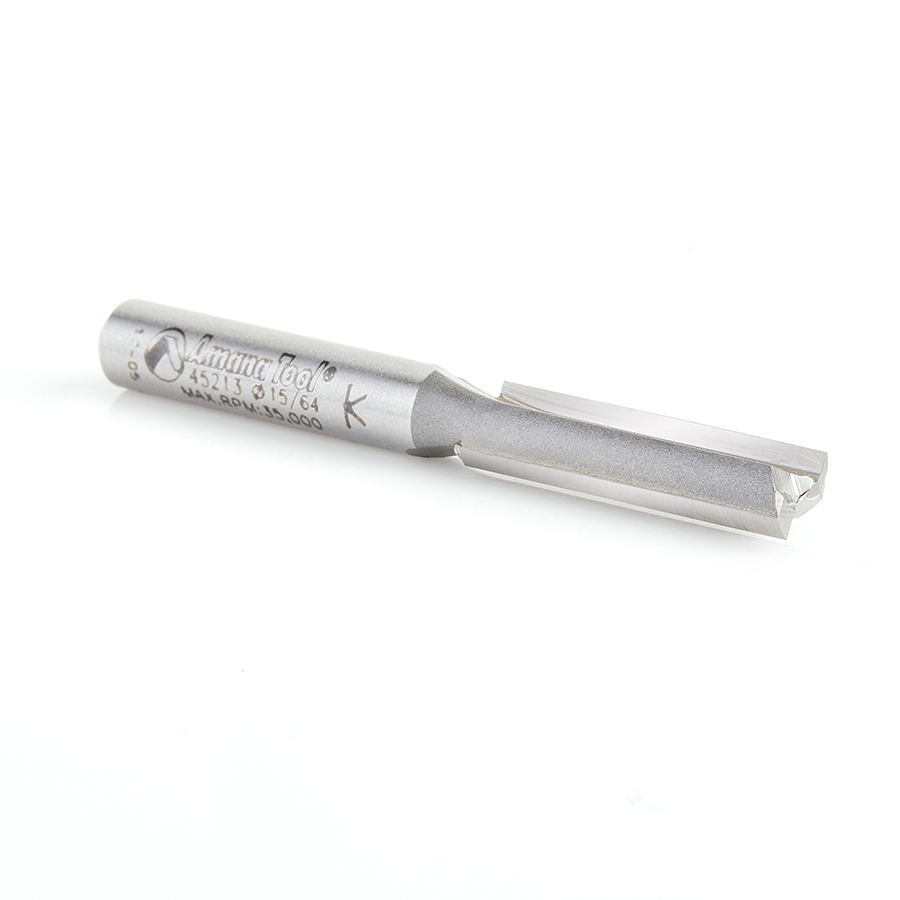

45213 Carbide Tipped Straight Plunge 6mm Dia x 25mm x 6mm Shank

Amana 45213 Carbide Tipped Straight Plunge 6mm Dia x 25mm x 6mm Shank

Name: Amana 45213 Carbide Tipped Straight Plunge 6mm Dia x 25mm x 6mm Shank
SKU: Amana 45213
Availability: InStock

Original price was: $33.45.Current price is: $25.09.

2 FLUTE 6MM DIA. 6MM SHANK

UPC: 738685992135 SKU: Amana 45213 Categories: Amana Tool, Router Bits, Straight Plunge Metric Router Bits, Straight Plunge Router Bits

Item Description

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit,

eliminating vibration that degrades the cut finish. Two cuts per revolution yield

a smooth surface, but feed rate is slightly reduced.

Many standard metric plunge bits from 3mm through 51mm are available on

special order. Please allow 2 to 3 weeks for delivery. See below for metric sized

plywood bits.

Vectric and Fusion 360 compatible tool files for 45213 available for download,click here.

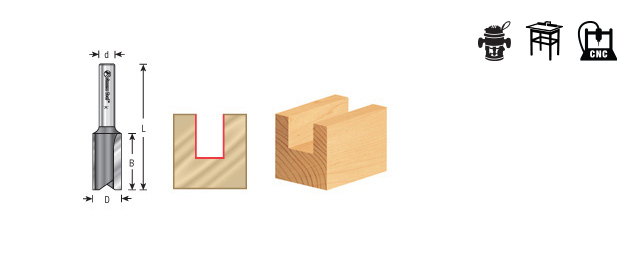

Specifications

Diameter (D)	6mm
Cutting Height (B)	25mm
Shank (d)	6mm
Overall Length (L)	57mm
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
15/64 (5.95mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45203
8mm	25mm	8mm	63mm	2	45215
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	45412-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	45415-5
10mm	19mm	1/4 (6.35mm)	2-1/8	2	45219
10mm	19mm	1/2 (12.70mm)	2-1/2	2	45417
12mm	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45240
12mm	1-1/4	1/2 (12.70mm)	2-7/8	2	45488
14mm	25mm	1/2 (12.70mm)	2-5/8	2	45431
18mm	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	45256
18mm	1-1/4	1/2 (12.70mm)	2-7/8	2	45498

Weight	0.04 lbs
