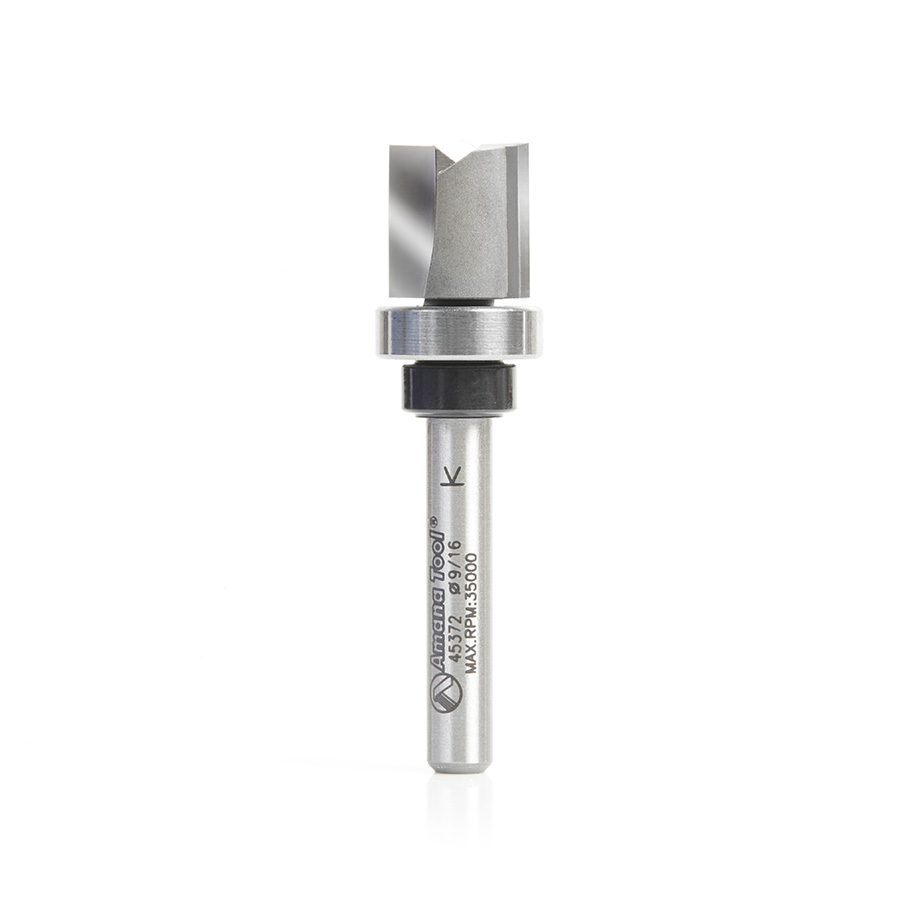

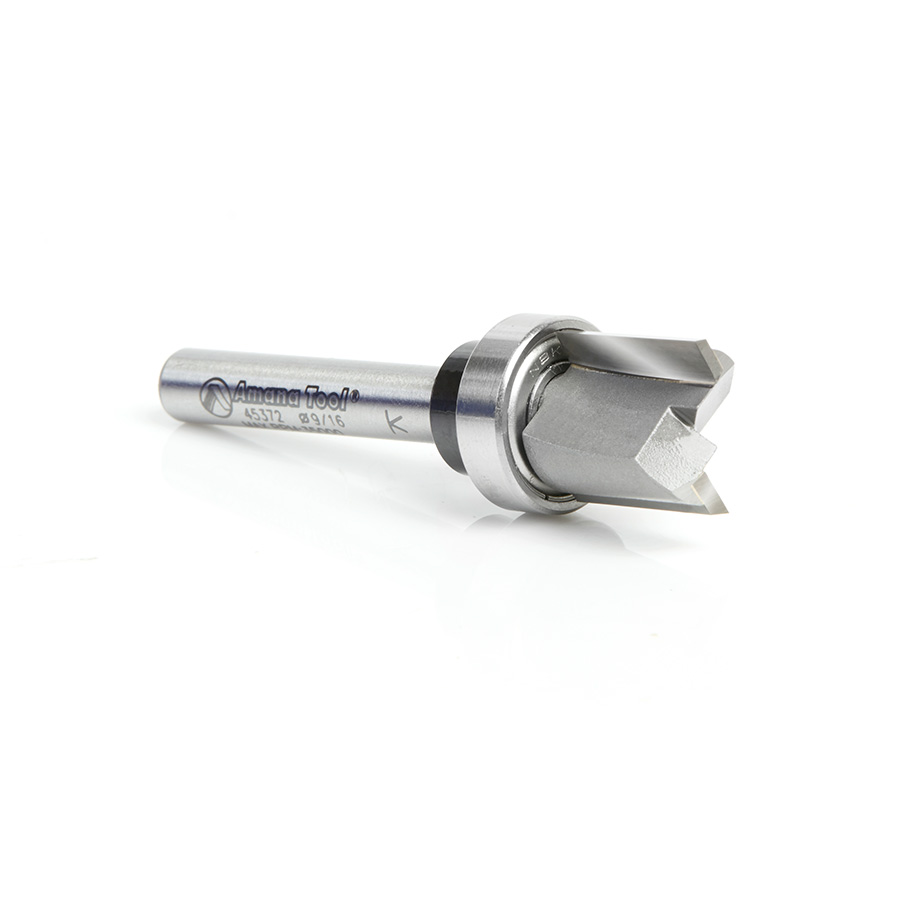

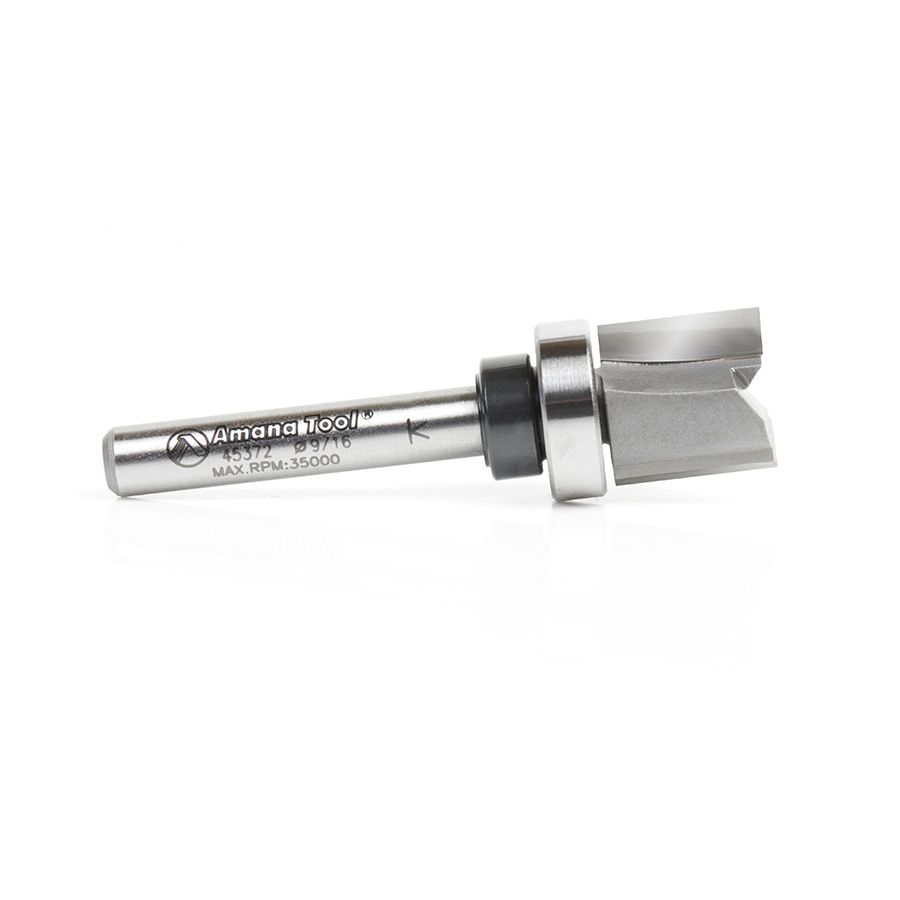

45372 Carbide Tipped Flush Trim Plunge Template 9/16 Dia x 9/16 x 1/4 Inch Shank with Oversized Upper Ball Bearing

Amana 45372 Carbide Tipped Flush Trim Plunge Template 9/16 Dia x 9/16 x 1/4 Inch Shank with Oversized Upper Ball Bearing

Name: Amana 45372 Carbide Tipped Flush Trim Plunge Template 9/16 Dia x 9/16 x 1/4 Inch Shank with Oversized Upper Ball Bearing
SKU: Amana 45372
Availability: InStock

Original price was: $54.85.Current price is: $41.14.

TEMPLATE/UPER OVERSIZE BB 9/16

UPC: 738685453728 SKU: Amana 45372 Categories: Amana Tool, Flush Trim Plunge Template Router Bits, Router Bits, Trimming Router Bits

Item Description

For template use with specified jigs.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw
45371	47701	47724

Specifications

Diameter (D)	9/16
D1	1/2
Cutting Height (B)	9/16
Shank (d)	1/4
Overall Length (L)	2-5/16
Replacement Bearing	47701
Flutes	2
C	1/32

Other Sizes Available

Jigs	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	C	Flutes	Replacement Bearing	Tool No.
Porter	5/16 (7.94mm)	1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-23/32	3/32 (2.38mm)	2	47701	45371
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	–	45412
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	–	45412-5
Porter	5/16 (7.94mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-3/4	3/32 (2.38mm)	2	47701	45495
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	–	45415
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	–	45415-5
Replacement	1/2 (12.70mm)	5/8 (15.88mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	1/16 (1.59mm)	2	47712	45484
Hinge-MatesupTM/sup	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	1/8 (3.18mm)	2	47714	45496

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
