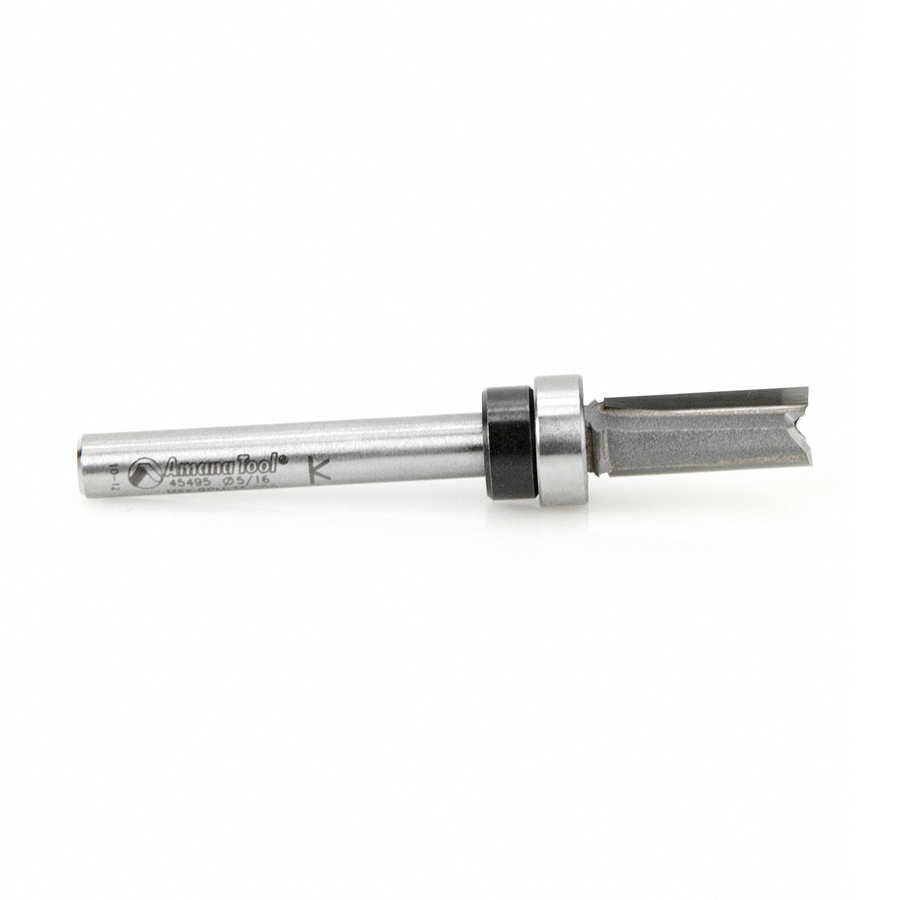

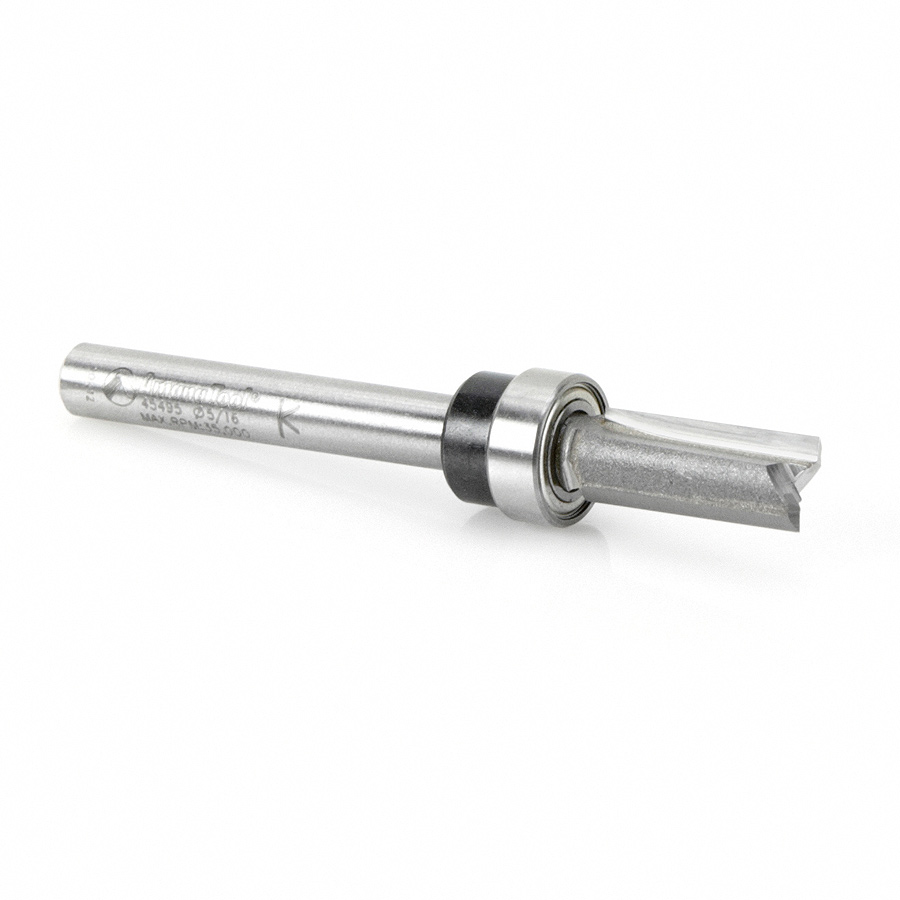

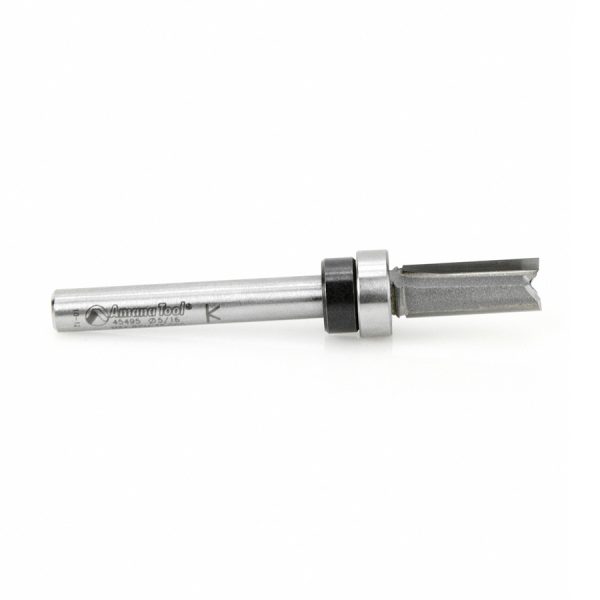

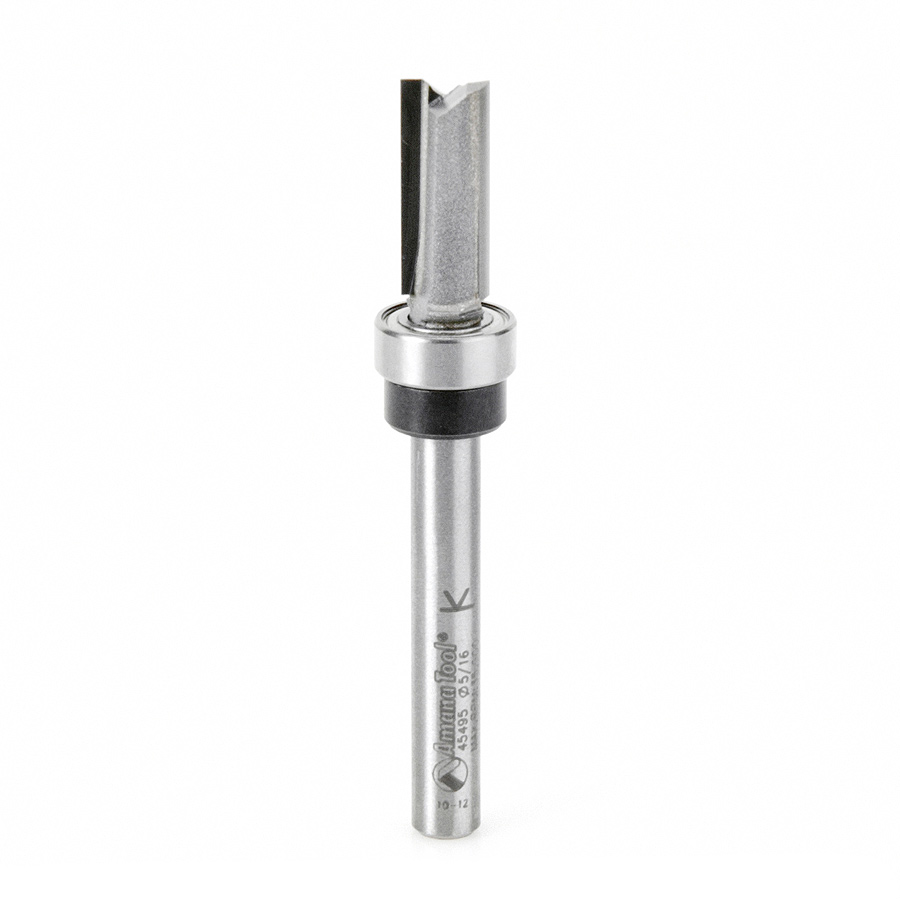

45495 Carbide Tipped Flush Trim Plunge Template 5/16 Dia x 3/4 x 1/4 Inch Shank with Oversized Upper Ball Bearing

Amana 45495 Carbide Tipped Flush Trim Plunge Template 5/16 Dia x 3/4 x 1/4 Inch Shank with Oversized Upper Ball Bearing

Name: Amana 45495 Carbide Tipped Flush Trim Plunge Template 5/16 Dia x 3/4 x 1/4 Inch Shank with Oversized Upper Ball Bearing
SKU: Amana 45495
Availability: InStock

Original price was: $58.30.Current price is: $43.73.

TEMPLATE/UPER OVERSIZE BB 5/16

UPC: 738685454954 SKU: Amana 45495 Categories: Amana Tool, Flush Trim Plunge Template Router Bits, Router Bits, Trimming Router Bits

Item Description

For template use with specified jigs.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw
45495	47701	47724

Specifications

Diameter (D)	5/16
D1	1/2
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-3/4
Replacement Bearing	47701
Jigs	Porter Cable Morten, Morten & Tenon, Omnijig
Flutes	2
C	3/32

Other Sizes Available

Jigs	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	C	Flutes	Replacement Bearing	Tool No.
Porter	5/16 (7.94mm)	1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-23/32	3/32 (2.38mm)	2	47701	45371
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	–	45412
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	–	45412-5
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	–	45415
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	–	45415-5
Replacement	1/2 (12.70mm)	5/8 (15.88mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	1/16 (1.59mm)	2	47712	45484
Hinge-MatesupTM/sup	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	1/8 (3.18mm)	2	47714	45496
–	9/16 (14.29mm)	1/2 (12.70mm)	9/16 (14.29mm)	1/4 (6.35mm)	2-5/16	1/32 (0.79mm)	2	47701	45372

Weight	0.06 lbs
