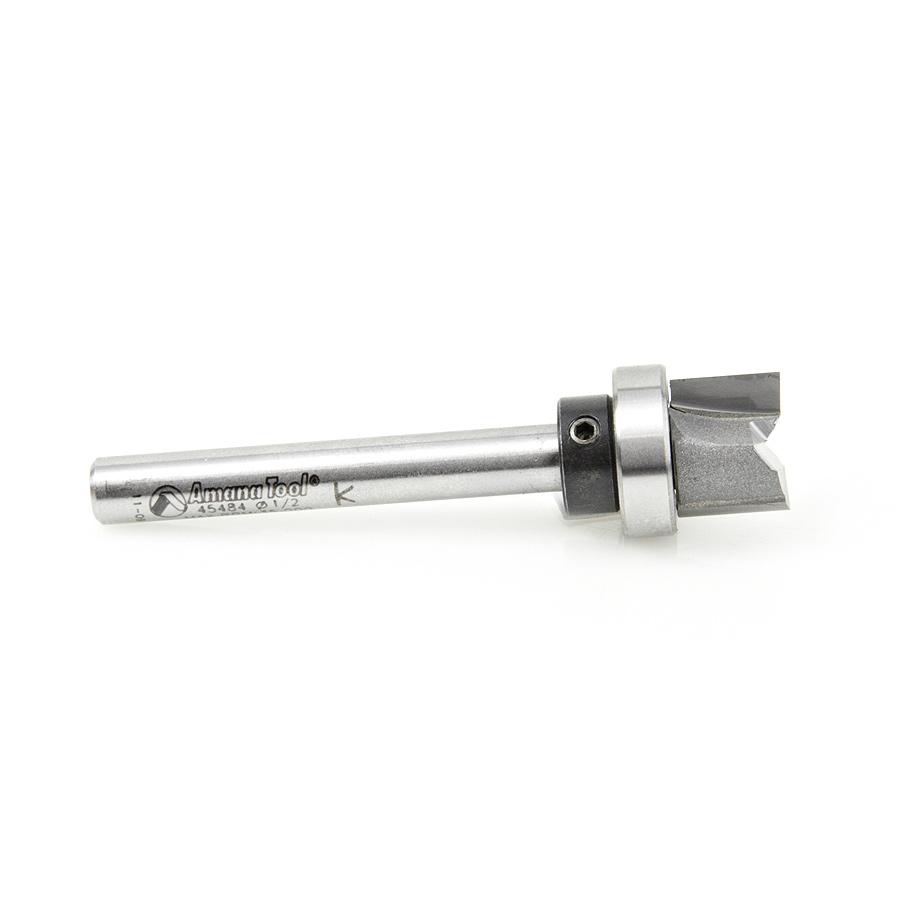

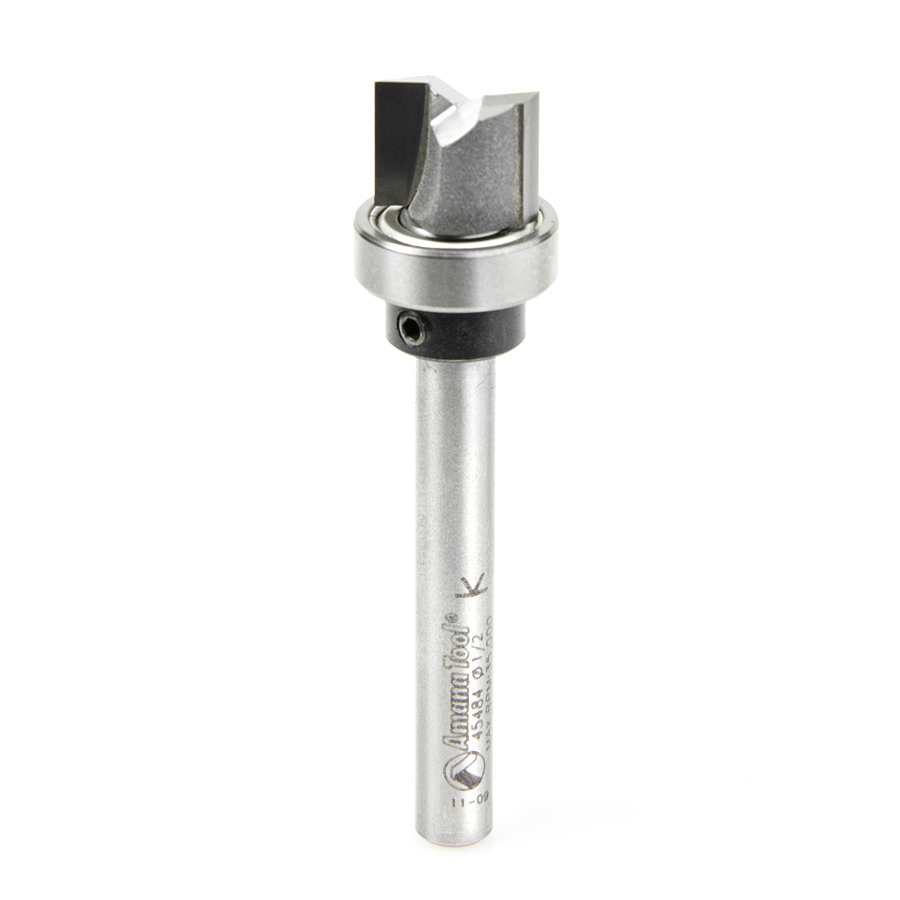

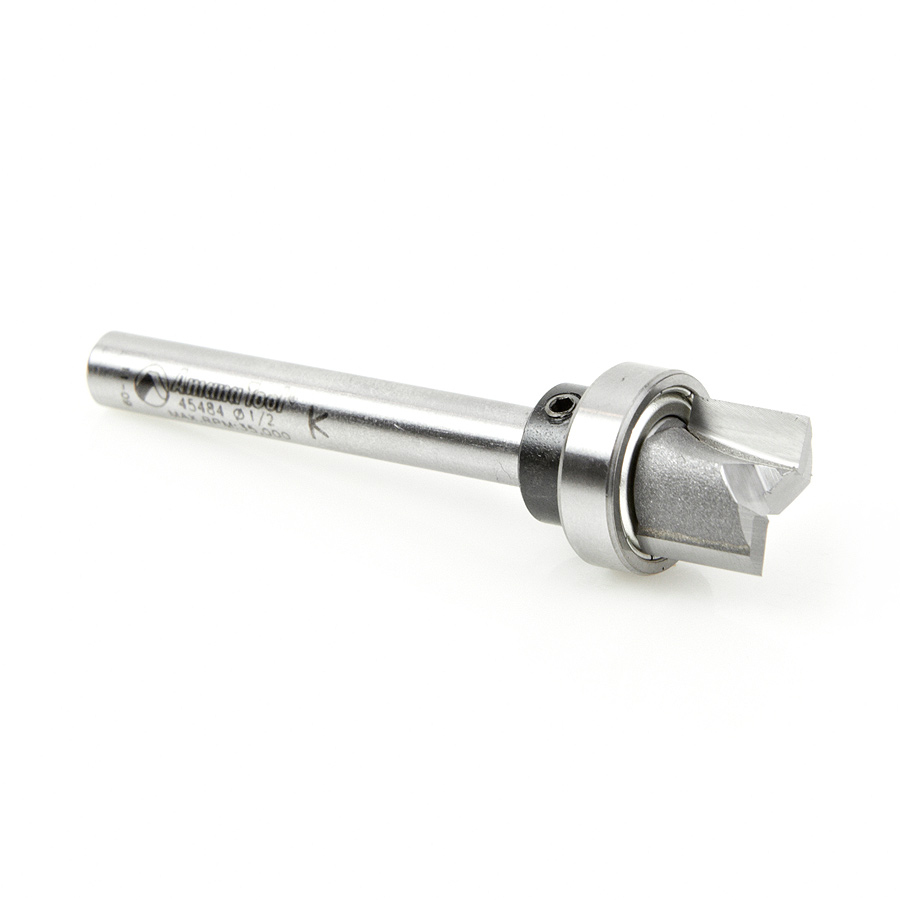

45484 Carbide Tipped Flush Trim Plunge Template 1/2 Dia x 3/8 x 1/4 Inch Shank with Oversized Upper Ball Bearing

Amana 45484 Carbide Tipped Flush Trim Plunge Template 1/2 Dia x 3/8 x 1/4 Inch Shank with Oversized Upper Ball Bearing

Name: Amana 45484 Carbide Tipped Flush Trim Plunge Template 1/2 Dia x 3/8 x 1/4 Inch Shank with Oversized Upper Ball Bearing
SKU: Amana 45484
Price: 35.37 USD
Availability: InStock

Original price was: $47.15.Current price is: $35.37.

TEMPLATE/OVERSIZE BB 1/2″ DIA

UPC: 738685454848 SKU: Amana 45484 Categories: Amana Tool, Flush Trim Plunge Template Router Bits, Router Bits, Trimming Router Bits

Item Description

For template use with specified jigs.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw
45484	47712	47724

Specifications

Diameter (D)	1/2
D1	5/8
Cutting Height (B)	3/8
Shank (d)	1/4
Overall Length (L)	2-1/2
Replacement Bearing	47712
Jigs	Replacement for Porter Cable® bit #43671 one piece. For Mortising of doors to accept hinge butts with Porter Cable® Kit model #59370
Flutes	2
C	1/16

Other Sizes Available

Jigs	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	C	Flutes	Replacement Bearing	Tool No.
Porter	5/16 (7.94mm)	1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-23/32	3/32 (2.38mm)	2	47701	45371
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	–	45412
–	5/16 (7.94mm)	–	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	–	45412-5
Porter	5/16 (7.94mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-3/4	3/32 (2.38mm)	2	47701	45495
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	–	45415
–	3/8 (9.53mm)	–	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	–	45415-5
Hinge-MatesupTM/sup	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	1/8 (3.18mm)	2	47714	45496
–	9/16 (14.29mm)	1/2 (12.70mm)	9/16 (14.29mm)	1/4 (6.35mm)	2-5/16	1/32 (0.79mm)	2	47701	45372

Weight	0.08 lbs
