Sale!

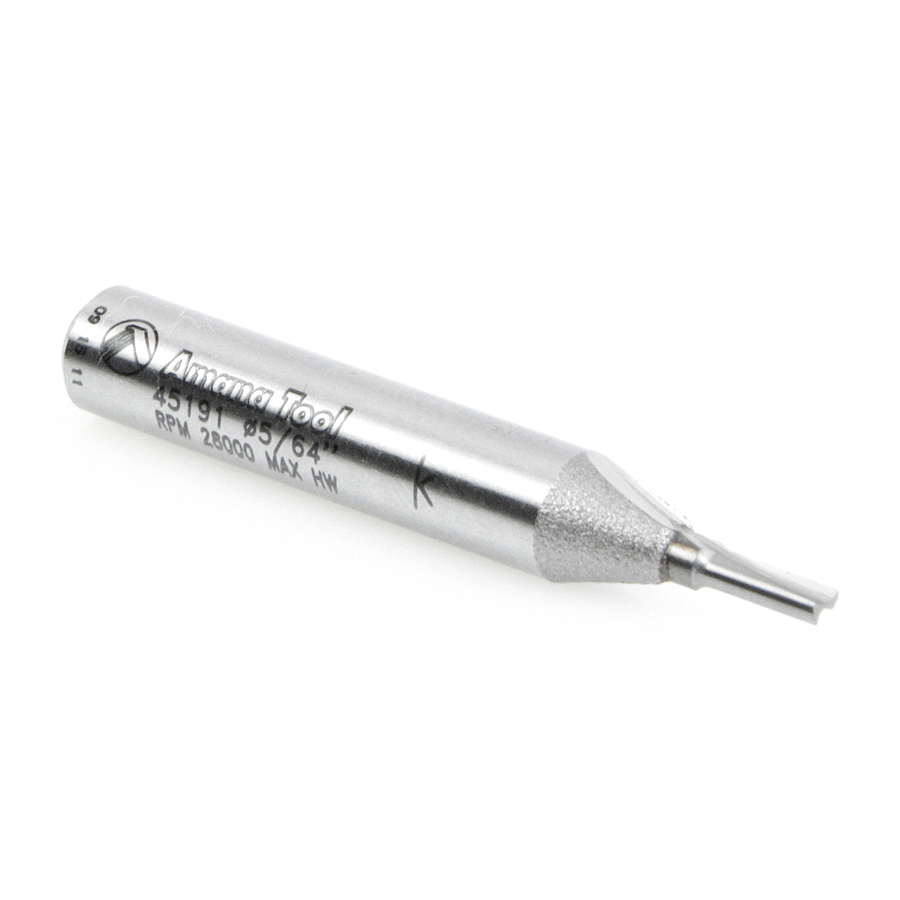

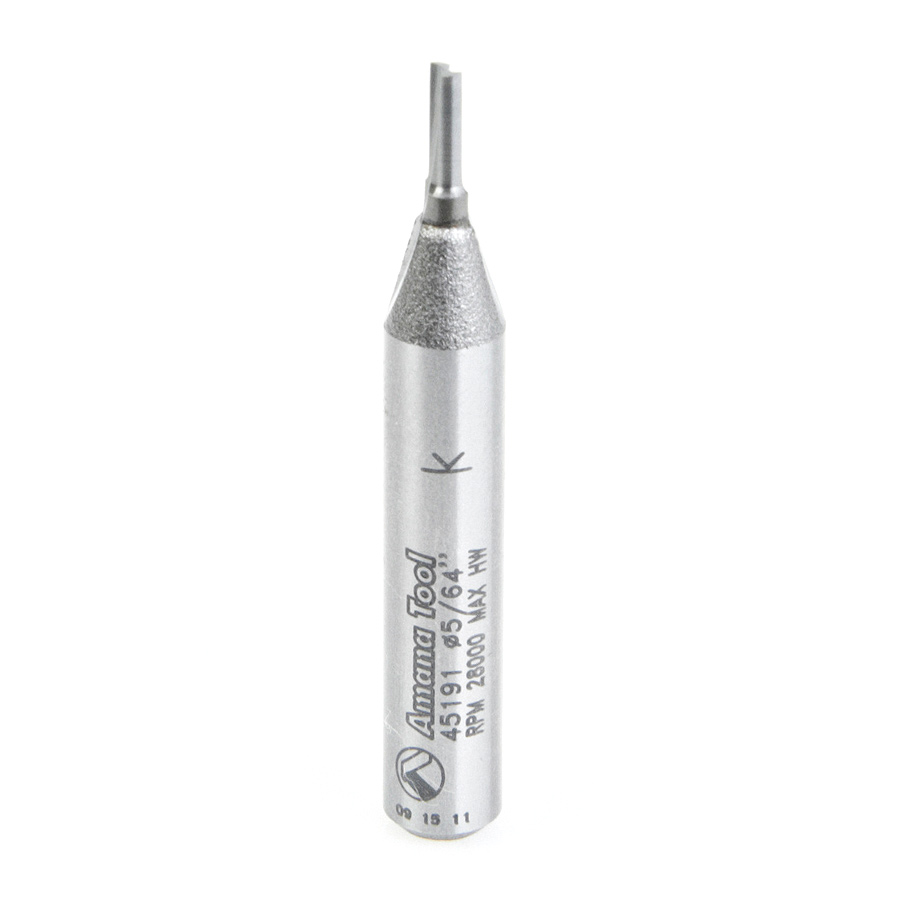

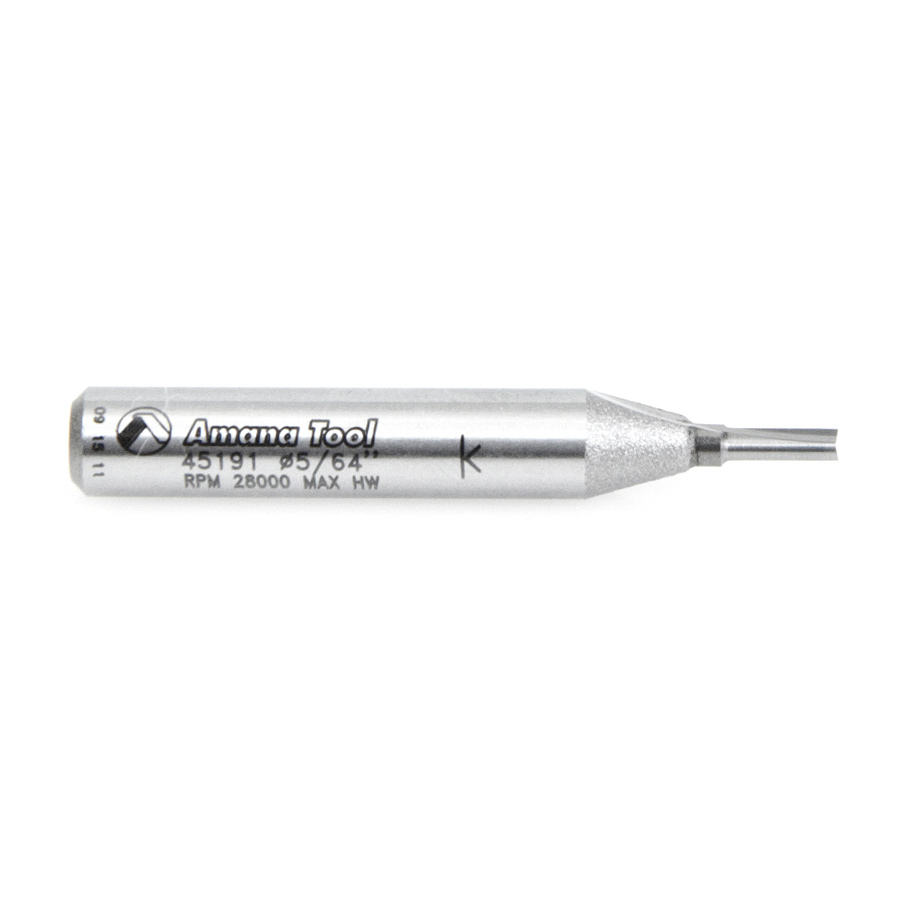

45191 Solid Carbide Cutting Edge Straight Plunge High Production 5/64 Dia x 3/16 x 1/4 Inch Shank

Amana 45191 Solid Carbide Cutting Edge Straight Plunge High Production 5/64 Dia x 3/16 x 1/4 Inch Shank

Name: Amana 45191 Solid Carbide Cutting Edge Straight Plunge High Production 5/64 Dia x 3/16 x 1/4 Inch Shank
SKU: Amana 45191
Availability: InStock

Original price was: $44.30.Current price is: $33.23.

2 FLUTE 5/64 DIA. 1/4 SHANK

UPC: 738685451915 SKU: Amana 45191 Categories: Amana Tool, High Production Straight Plunge Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced. 45191 features a solid carbide cutting edge.

Perfect for CNC work.

Solid carbide (brazed to steel shank).

Excellent for Cutting:

Wood
MDF
Plywood

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Not guaranteed due to extremely small diameter.

Replacement Parts

Tool No.	steel shims	Rub collar shim
C-012	55358	55358

Specifications

Diameter (D)	5/64
Cutting Height (B)	3/16
Shank (d)	1/4
Overall Length (L)	1-3/4
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Description	Tool No.
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-5/8	2	–	45190
1/16 (1.59mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-5/8	2	5	45190-5
1/16 (1.59mm)	3/16 (4.76mm)	1/8 (3.18mm)	1-1/2	2	–	46480
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	–	45192
3/32 (2.38mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-3/4	2	5	45192-5
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	1-3/4	2	–	46482
1/8 (3.18mm)	7/16 (11.11mm)	1/8 (3.18mm)	1-1/2	2	–	45199
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45200
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45200-5
1/8 (3.18mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45200-LH
5/32 (3.97mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45201
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45202
3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45202-5
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-3/16	2	–	45239
13/64 (5.16mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45217
7/32 (5.56mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45206
15/64 (5.95mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45203
1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45204
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-1/4	2	–	45205
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45208
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45208-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45210
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	–	45210-01
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	2	–	45210-3
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	3-3/4	2	–	45210-3.75
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	5	45210-5
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45210-LH
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-7/8	2	–	45211
1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	–	45408
1/4 (6.35mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-27/32	3	–	45408-3
1/4 (6.35mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	–	45486
9/32 (7.14mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45212
9/32 (7.14mm)	1 (25.40mm)	1/4 (6.35mm)	3 (76.20mm)	2	–	45212-01
9/32 (7.14mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-3/4	2	–	45409
5/16 (7.94mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	3	–	45186-3
5/16 (7.94mm)	1 (25.40mm)	1/4 (6.35mm)	2-3/4	2	–	45214-01
5/16 (7.94mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45242
5/16 (7.94mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	–	45410
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	–	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	5	45412-5
3/8 (9.53mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45216
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45218
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	5	45218-5
3/8 (9.53mm)	1 (25.40mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45218S
3/8 (9.53mm)	1-1/4	1/4 (6.35mm)	2-1/2	2	–	45220
3/8 (9.53mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	–	45413
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	–	45414
3/8 (9.53mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	5	45414-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	–	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	5	45415-5
13/32 (10.32mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	2	–	45193
13/32 (10.32mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/2	2	–	45401
7/16 (11.11mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/8	2	–	45222
7/16 (11.11mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	–	45416
15/32 (11.91mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45223
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	1-3/4	2	–	45224
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	–	45224-01
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/8	2	–	45226
1/2 (12.70mm)	1 (25.40mm)	1/4 (6.35mm)	2-13/16	2	–	45244
1/2 (12.70mm)	1-1/4	1/4 (6.35mm)	2-1/2	2	–	45245
1/2 (12.70mm)	1 (25.40mm)	1/2 (12.70mm)	2-5/8	2	–	45418
1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	–	45419
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45420
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	–	45422
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4-1/4	2	–	45424
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/4	—-	–	45426
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	3-1/2	2	–	45426S
1/2 (12.70mm)	2-1/2	1/2 (12.70mm)	4-1/2	2	–	45427
1/2 (12.70mm)	2-1/2	1/2 (12.70mm)	5-1/2	2	–	45427-01
1/2 (12.70mm)	3 (76.20mm)	1/2 (12.70mm)	5-1/4	2	–	45477
17/32 (13.49mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45429
9/16 (14.29mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/8	2	–	45227
9/16 (14.29mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45428
19/32 (15.08mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	–	45238-01
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45228
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45228-5
5/8 (15.88mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45247
5/8 (15.88mm)	1-1/4	1/4 (6.35mm)	2-7/8	2	–	45249
5/8 (15.88mm)	1 (25.40mm)	1/2 (12.70mm)	2-5/8	2	–	45430
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45432
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	5	45432-5
5/8 (15.88mm)	2 (50.80mm)	1/2 (12.70mm)	3-3/4	2	–	45433
5/8 (15.88mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	–	45434
21/32 (16.67mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45435
11/16 (17.46mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45229
11/16 (17.46mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45436
1-1/16	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45459
23/32 (18.26mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45231
3/4 (19.05mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	2	–	45181
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45230
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	5	45230-5
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/4	2	–	45251
3/4 (19.05mm)	1 (25.40mm)	1/4 (6.35mm)	2-5/8	2	–	45251-01
3/4 (19.05mm)	1 (25.40mm)	1/2 (12.70mm)	2-5/8	2	–	45438
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45440
3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	5	45440-5
3/4 (19.05mm)	2 (50.80mm)	1/2 (12.70mm)	3-5/8	2	–	45441
3/4 (19.05mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	–	45442
3/4 (19.05mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1+1	–	RC-1024
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45443
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	5	45443-5
13/16 (20.64mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45232
13/16 (20.64mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45444
7/8 (22.23mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45234
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45446
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	5	45446-5
15/16 (23.81mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	2	–	45182
1 (25.40mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	2	–	45236
1 (25.40mm)	1-1/2	1/2 (12.70mm)	3-1/8	2	–	45403
1 (25.40mm)	2 (50.80mm)	1/2 (12.70mm)	3-5/8	2	–	45447
1 (25.40mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45448
1-1/8	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45449
2 (50.80mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45480
1-1/4	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45450
1-3/4	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45453
1-1/2	1-1/4	1/2 (12.70mm)	2-7/8	2	–	45452
–	–	–	–	—-	–	AMS-103
–	–	–	–	—-	–	DRB-420

Weight	0.04 lbs
