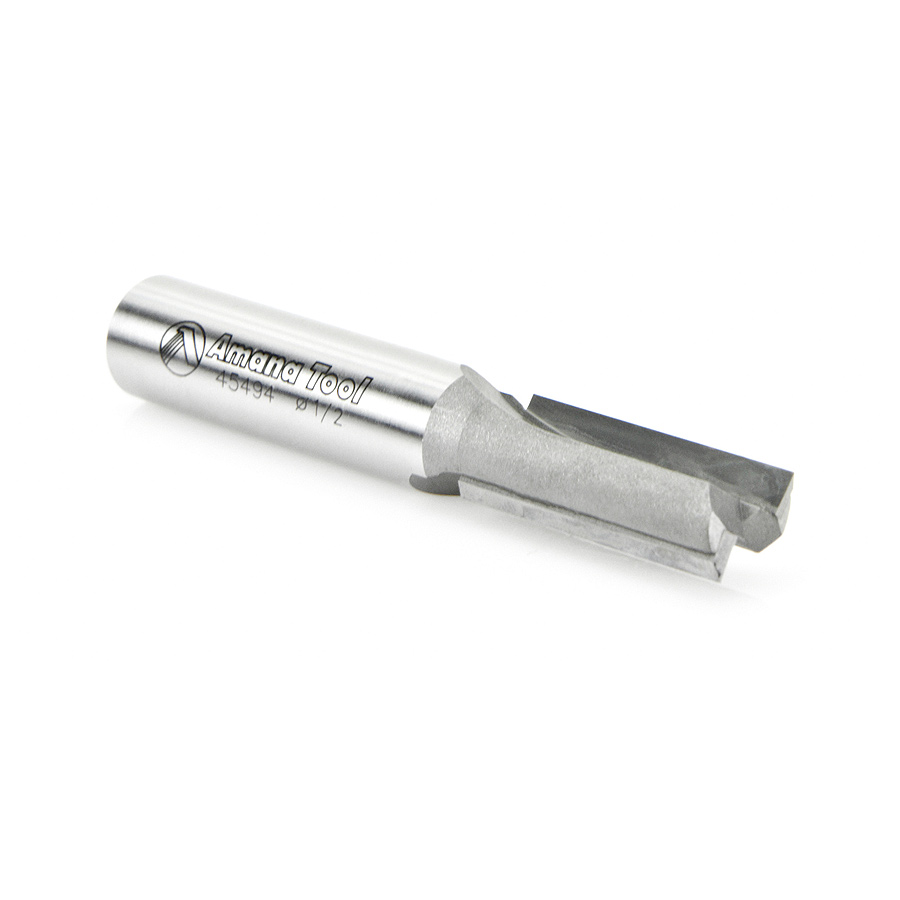

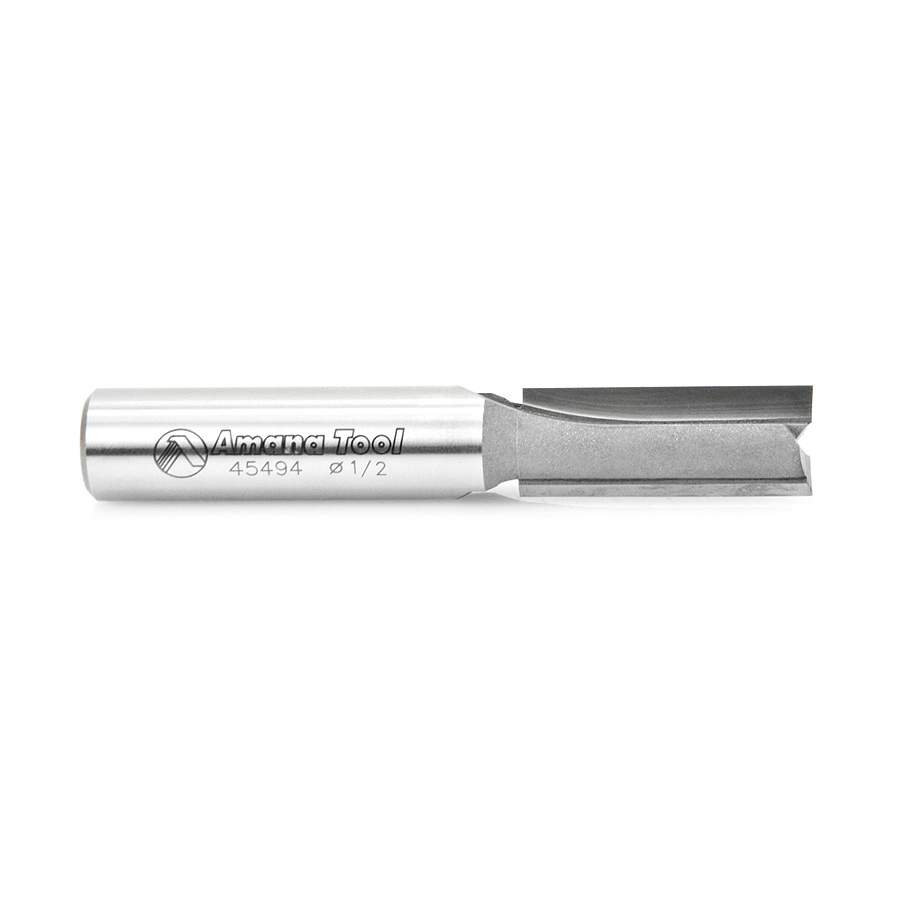

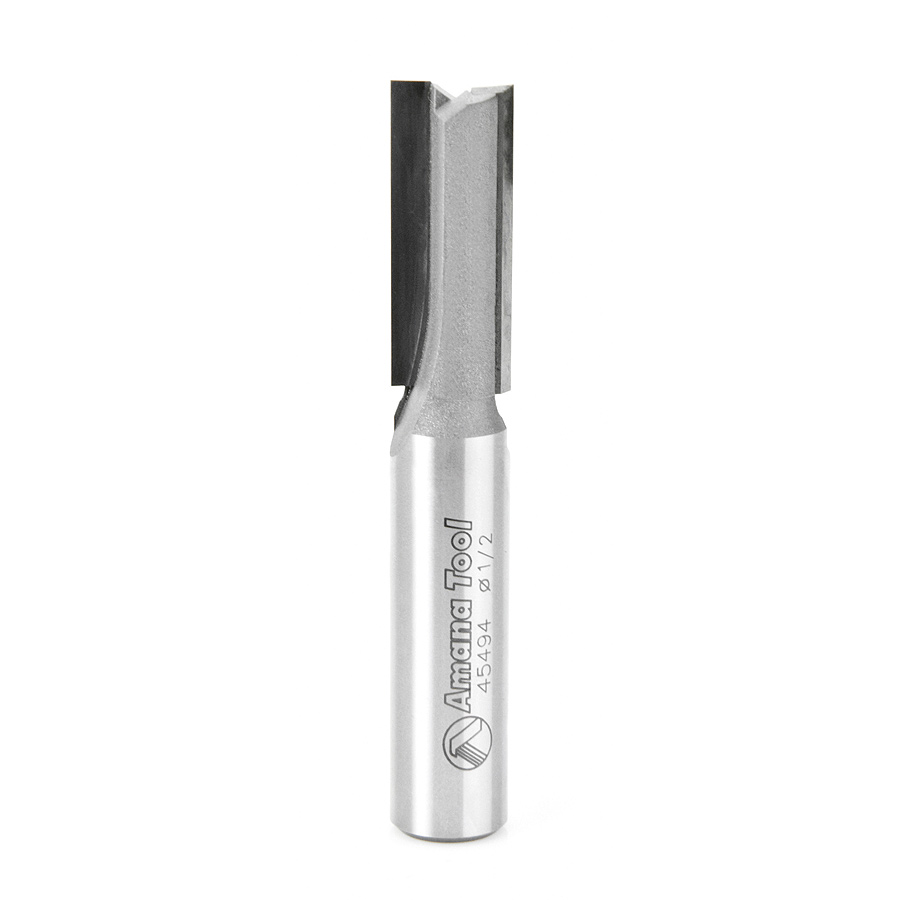

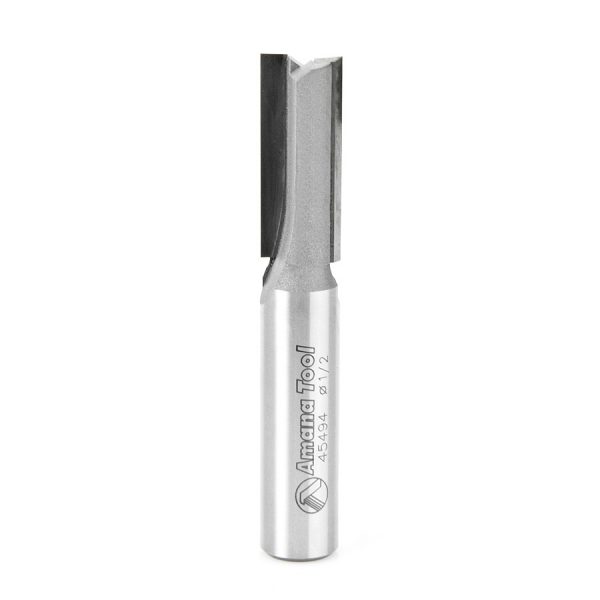

45494 Carbide Tipped Leigh Straight Plunge 1/2 Dia x 1-1/4 x 1/2 Inch Shank

Amana 45494 Carbide Tipped Leigh Straight Plunge 1/2 Dia x 1-1/4 x 1/2 Inch Shank

Name: Amana 45494 Carbide Tipped Leigh Straight Plunge 1/2 Dia x 1-1/4 x 1/2 Inch Shank
SKU: Amana 45494
Availability: InStock

Original price was: $30.35.Current price is: $22.77.

2 FLUTE 1/2 DIAMETER 1/2 SHANK

UPC: 738685454947 SKU: Amana 45494 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

Straight bits required to cut pins for through dovetail using the Leigh® jig.

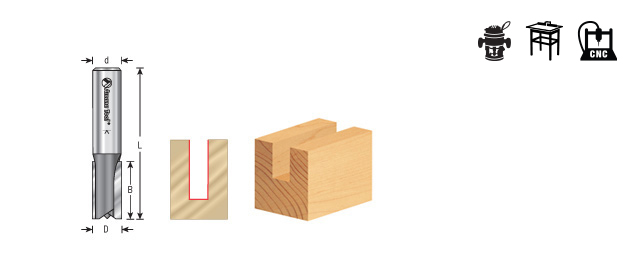

Specifications

Diameter (D)	1/2
Cutting Height (B)	1-1/4
Shank (d)	1/2
Overall Length (L)	3-9/64
Type	Leigh #160
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Flutes	Tool No.
5/16 (7.94mm)	1.03 (26.16mm)	1/4 (6.35mm)	2-13/16	Leigh #140	2	45270
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	45412
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	–	2	45412-5
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	45415
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	–	2	45415-5
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	–	2	45432
5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-7/8	–	2	45432-5
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	–	2	45443
25/32 (19.84mm)	1-1/4	1/2 (12.70mm)	2-7/8	–	2	45443-5
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	–	2	45446
7/8 (22.23mm)	1-1/4	1/2 (12.70mm)	2-7/8	–	2	45446-5

Weight	0.15 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
