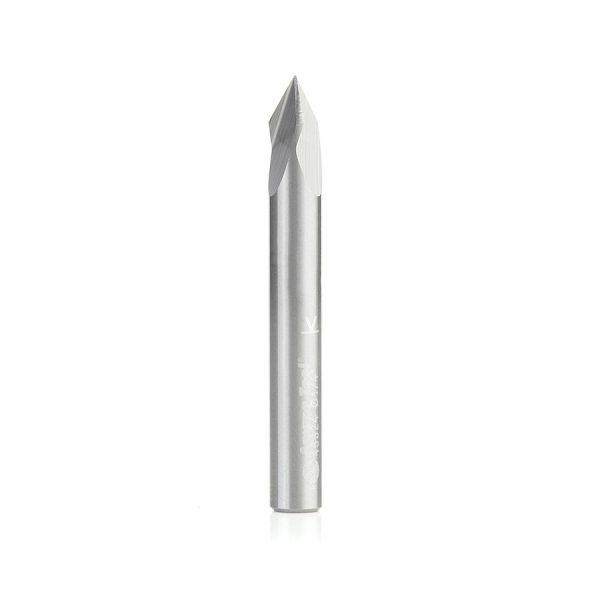

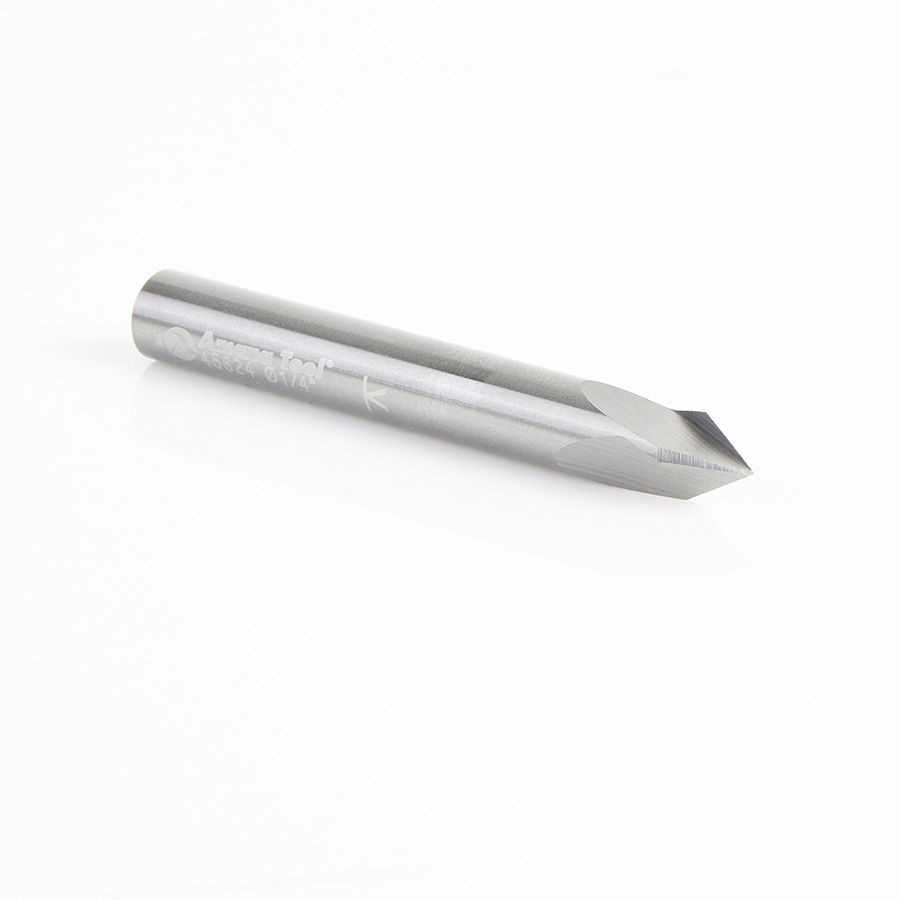

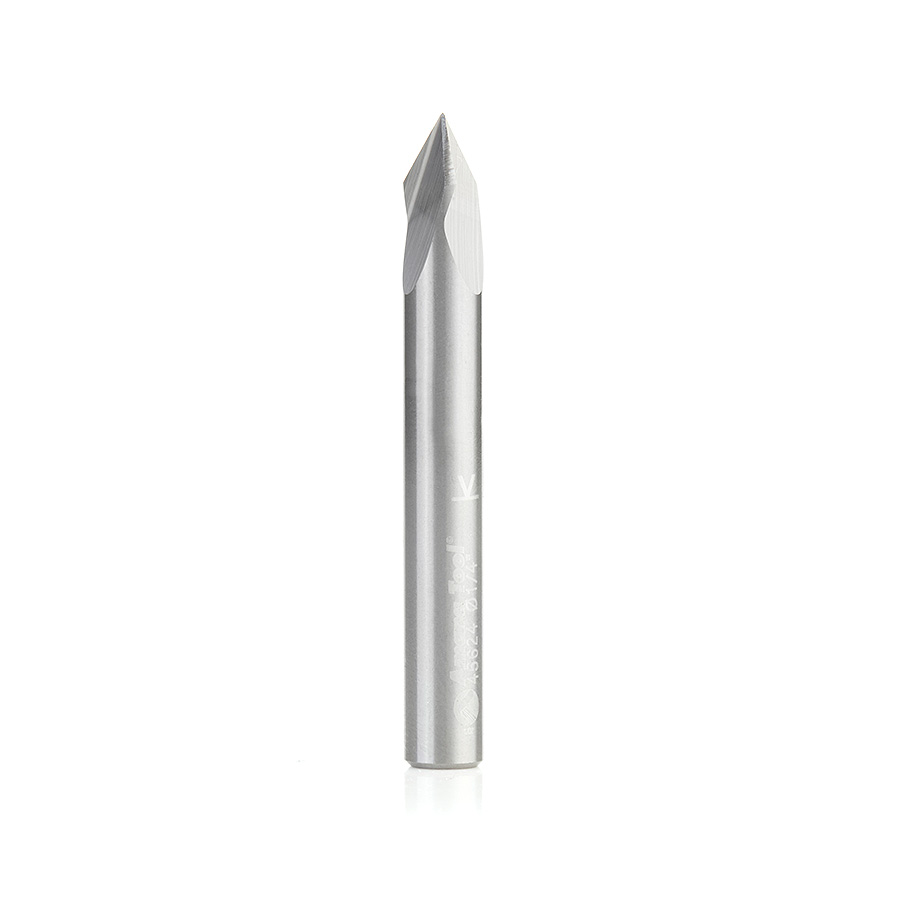

Amana 45624 Solid Carbide V-Groove 60 Deg x 1/4 Dia x 7/32 x 1/4 Inch Shank
Original price was: $51.25.$38.44Current price is: $38.44.
60D V GROOVE 3FL 1/4″Dx1/4″SHK
Item Description
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.
Excellent for cutting:
- 20lbs High Density Urethane
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- MDF/HDF
- Melamine
- Plywood
- PVC Plastic
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita® Board
Vectric and Fusion 360 compatible tool files for 45624 available for download,click here.

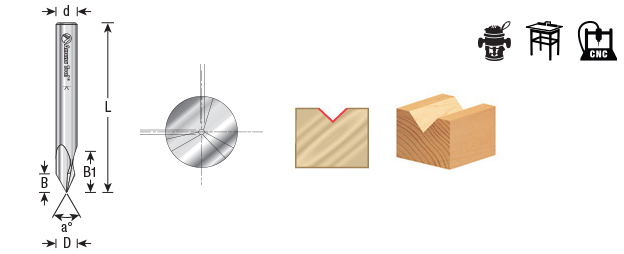

Specifications
| Angle (a°) | 60° |
|---|---|
| Diameter (D) | 1/4 |
| Cutting Height (B) | 7/32 |
| B1 | 31/64 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Flutes | 3 |
Other Sizes Available
| Angle (a°) | Diameter (D) | Cutting Height (B) | B1 | Shank (d) | Overall Length (L) | Flutes | Tool No. |
|---|---|---|---|---|---|---|---|
| 45° | 1/2 (12.70mm) | 5/8 (15.88mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | 2 | 45711 |
| 60° | 1/2 (12.70mm) | 7/16 (11.11mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 3 (76.20mm) | 3 | 45629 |
| 60° | 1/2 (12.70mm) | 7/16 (11.11mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 1-3/4 | 2 | 45705 |
| 60° | 1/2 (12.70mm) | 7/16 (11.11mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 1-3/4 | 2 | 45705-5 |
| 60° | 12.7mm | 10.5mm | 16mm | 6mm | 44mm | 2 | 45705-M |
| 60° | 1/2 (12.70mm) | 27/64 (10.72mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-1/4 | 2 | 45706 |
| 60° | 1/2 (12.70mm) | 7/16 (11.11mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 45709 |
| 90° | 1/4 (6.35mm) | 1/8 (3.18mm) | 9/16 (14.29mm) | 1/4 (6.35mm) | 1-1/2 | 2 | 45625 |
| 90° | 3/8 (9.53mm) | 3/16 (4.76mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 1-5/8 | 2 | 45700 |
| 90° | 3/8 (9.53mm) | 3/16 (4.76mm) | 7/16 (11.11mm) | 1/2 (12.70mm) | 2 (50.80mm) | 2 | 45702 |
| 90° | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1-5/8 | 2 | 45704 |
| 90° | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1-5/8 | 2 | 45704-5 |
| 90° | 12.7mm | 6mm | 12.7mm | 6mm | 41mm | 2 | 45704M |
| 90° | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2-1/8 | 2 | 45708 |
| 90° | 5/8 (15.88mm) | 5/16 (7.94mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 1-5/8 | 2 | 45710 |
| 90° | 5/8 (15.88mm) | 5/16 (7.94mm) | 1/2 (12.70mm) | 1/2 (12.70mm) | 2 (50.80mm) | 2 | 45712 |
| 90° | 3/4 (19.05mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 1-3/4 | 2 | 45714 |
| 90° | 3/4 (19.05mm) | 3/8 (9.53mm) | 5/8 (15.88mm) | 1/2 (12.70mm) | 2-1/8 | 2 | 45716 |
| 90° | 7/8 (22.23mm) | 7/16 (11.11mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 1-7/8 | 2 | 45718 |
| 90° | 7/8 (22.23mm) | 7/16 (11.11mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/4 | 2 | 45720 |
| 90° | 1 (25.40mm) | 1/2 (12.70mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 1-7/8 | 2 | 45722 |
| 90° | 1/2 (12.70mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 45723 |
| 90° | 1 (25.40mm) | 1/2 (12.70mm) | 3/4 (19.05mm) | 1/2 (12.70mm) | 2-1/4 | 2 | 45724 |
| 90° | 1-1/4 | 9/16 (14.29mm) | 1 (25.40mm) | 1/2 (12.70mm) | 2-1/2 | 2 | 45726 |
| 90° | 1-1/2 | 3/4 (19.05mm) | 1-1/4 | 1/2 (12.70mm) | 2-3/4 | 2 | 45728 |
| 90° | 2 (50.80mm) | 1 (25.40mm) | 1-3/4 | 1/2 (12.70mm) | 3-1/4 | 2 | 45732 |
| 90° | 1-1/4 | 5/8 (15.88mm) | 15/16 (23.81mm) | 1/4 (6.35mm) | 2-13/64 | 2 | 45751 |
| – | – | – | – | – | – | —- | 45728-CNC |
| – | – | – | – | – | – | —- | 45732-CNC |
| 100° | 1-1/4 | 17/32 (13.49mm) | 53/64 (21.03mm) | 1/4 (6.35mm) | 2-3/32 | 2 | 45752 |
| 110° | 1-1/4 | 7/16 (11.11mm) | 47/64 (18.65mm) | 1/4 (6.35mm) | 2 (50.80mm) | 2 | 45754 |
| 120° | 19.5mm | 5mm | 19.05mm | 12.7mm | 64.294mm | 2 | 45753 |
| 120° | 1-1/4 | 23/64 (9.13mm) | 21/32 (16.67mm) | 1/4 (6.35mm) | 1-59/64 | 2 | 45756 |
| 130° | 1-1/4 | 9/32 (7.14mm) | 31/64 (12.30mm) | 1/4 (6.35mm) | 1-3/4 | 2 | 45758 |
| 150° | 1-1/4 | 11/64 (4.37mm) | 7/16 (11.11mm) | 1/4 (6.35mm) | 1-11/16 | 2 | 45770 |
| Weight | 0.06 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
