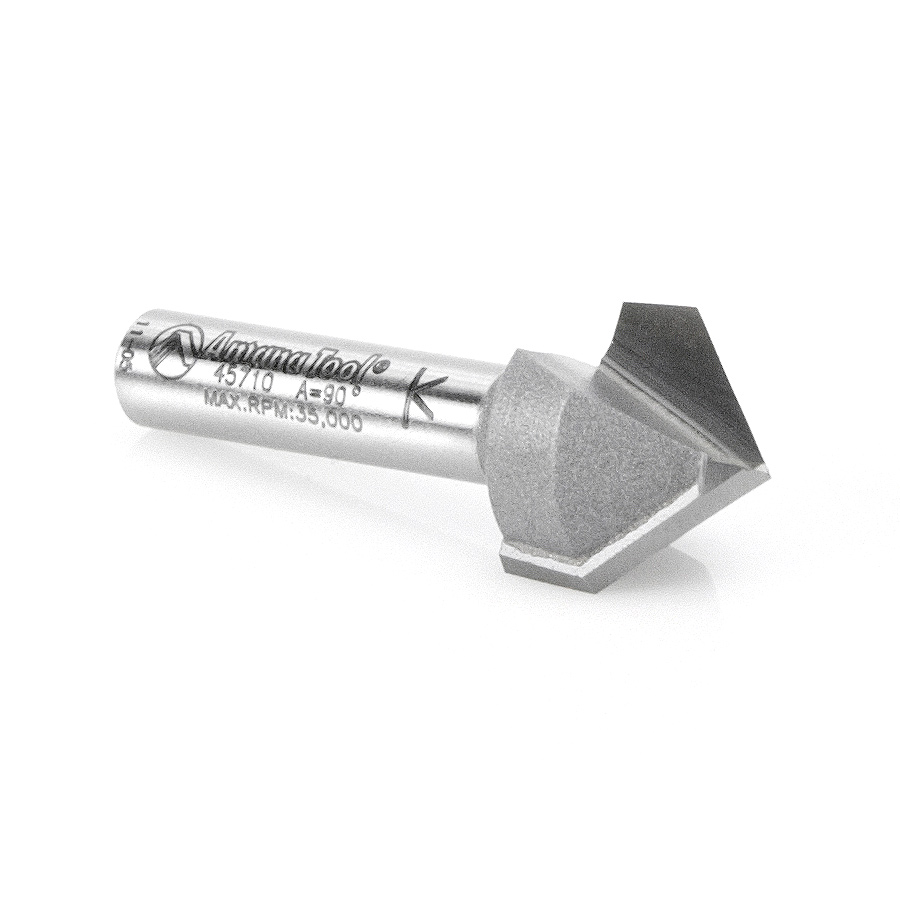

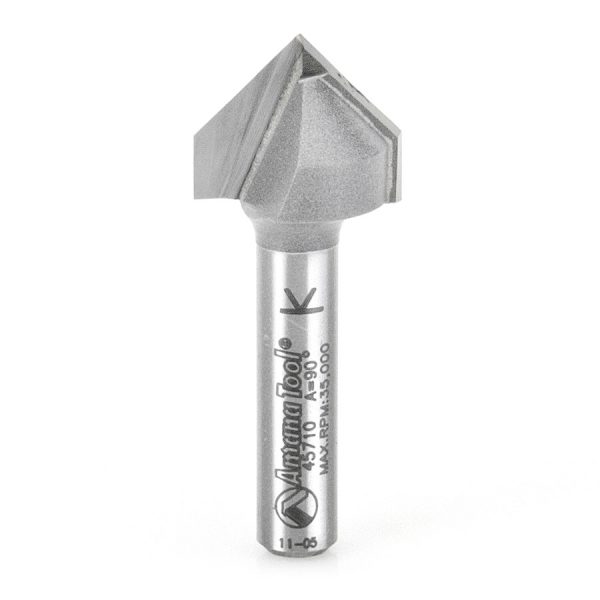

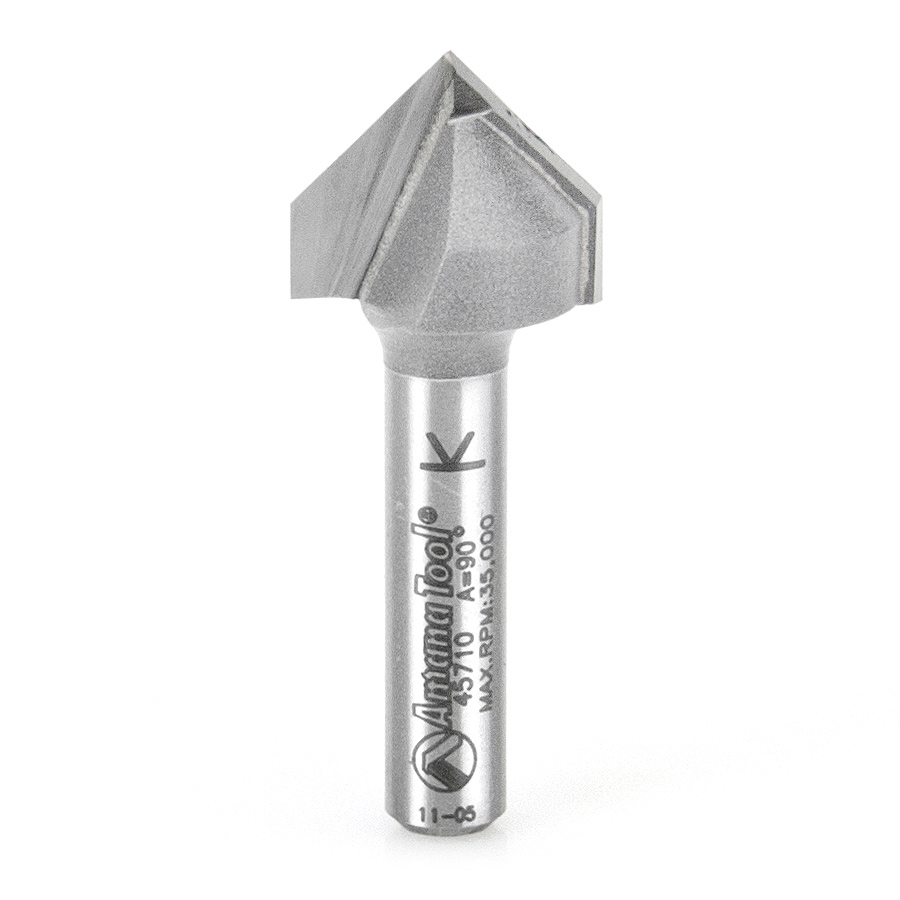

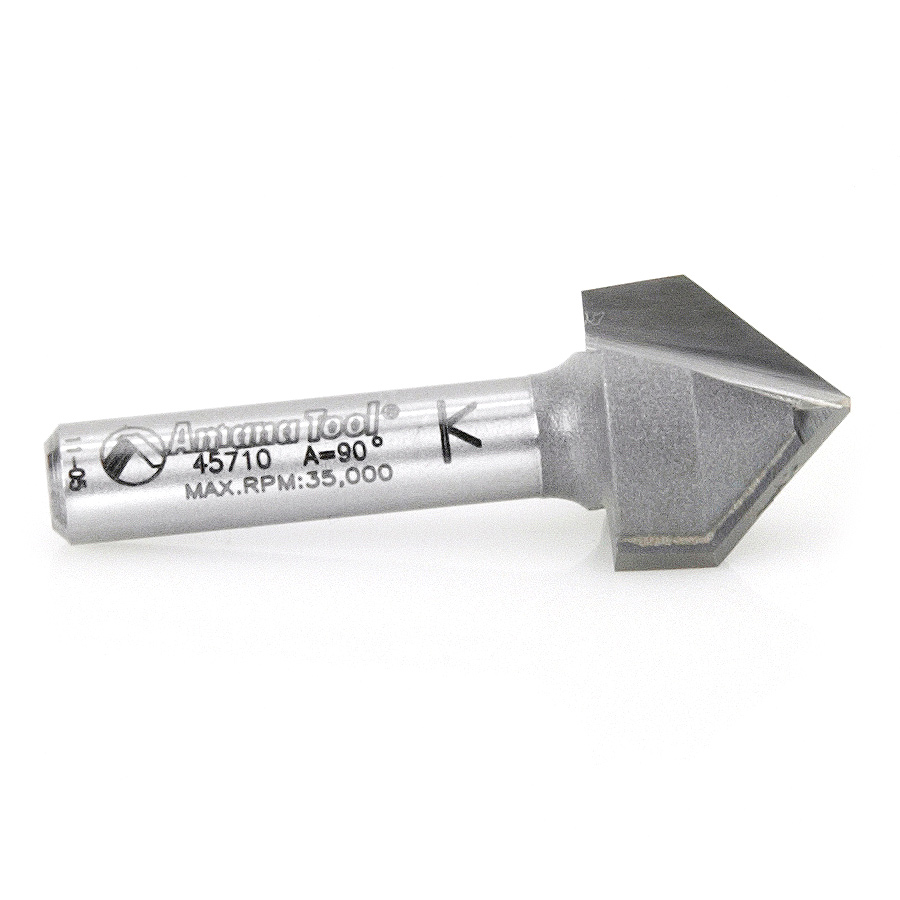

45710 Carbide Tipped V-Groove 90 Deg x 5/8 Dia x 5/16 x 1/4 Inch Shank

Amana 45710 Carbide Tipped V-Groove 90 Deg x 5/8 Dia x 5/16 x 1/4 Inch Shank

Name: Amana 45710 Carbide Tipped V-Groove 90 Deg x 5/8 Dia x 5/16 x 1/4 Inch Shank
SKU: Amana 45710
Availability: InStock

Original price was: $79.20.Current price is: $59.40.

90DV GROOVE 5/8 DIA 1/4 SHANK.

UPC: 738685857106 SKU: Amana 45710 Categories: Amana Tool, Router Bits, Signmaking Router Bits, V Groove Router Bits

Item Description

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

20lbs High Density Urethane
Acrylic
Composites
Composite Decking
Foam
Laminate
MDF/HDF
Melamine

Plywood
PVC Plastic
Sign Board
Solid Surface
Veneered Plywood
Wood
Xanita® Board

Specifications

Angle (a°)	90°
Diameter (D)	5/8
Cutting Height (B)	5/16
B1	1/2
Shank (d)	1/4
Overall Length (L)	1-5/8
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Flutes	Tool No.
45°	1/2 (12.70mm)	5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	45711
60°	1/4 (6.35mm)	7/32 (5.56mm)	31/64 (12.30mm)	1/4 (6.35mm)	2 (50.80mm)	3	45624
60°	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/2 (12.70mm)	3 (76.20mm)	3	45629
60°	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	2	45705
60°	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	2	45705-5
60°	12.7mm	10.5mm	16mm	6mm	44mm	2	45705-M
60°	1/2 (12.70mm)	27/64 (10.72mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	2	45706
60°	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	2	45709
90°	1/4 (6.35mm)	1/8 (3.18mm)	9/16 (14.29mm)	1/4 (6.35mm)	1-1/2	2	45625
90°	3/8 (9.53mm)	3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-5/8	2	45700
90°	3/8 (9.53mm)	3/16 (4.76mm)	7/16 (11.11mm)	1/2 (12.70mm)	2 (50.80mm)	2	45702
90°	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-5/8	2	45704
90°	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-5/8	2	45704-5
90°	12.7mm	6mm	12.7mm	6mm	41mm	2	45704M
90°	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/8	2	45708
90°	5/8 (15.88mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2 (50.80mm)	2	45712
90°	3/4 (19.05mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	2	45714
90°	3/4 (19.05mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/8	2	45716
90°	7/8 (22.23mm)	7/16 (11.11mm)	3/4 (19.05mm)	1/4 (6.35mm)	1-7/8	2	45718
90°	7/8 (22.23mm)	7/16 (11.11mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	45720
90°	1 (25.40mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	1-7/8	2	45722
90°	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	45723
90°	1 (25.40mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	45724
90°	1-1/4	9/16 (14.29mm)	1 (25.40mm)	1/2 (12.70mm)	2-1/2	2	45726
90°	1-1/2	3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	45728
90°	2 (50.80mm)	1 (25.40mm)	1-3/4	1/2 (12.70mm)	3-1/4	2	45732
90°	1-1/4	5/8 (15.88mm)	15/16 (23.81mm)	1/4 (6.35mm)	2-13/64	2	45751
–	–	–	–	–	–	—-	45728-CNC
–	–	–	–	–	–	—-	45732-CNC
100°	1-1/4	17/32 (13.49mm)	53/64 (21.03mm)	1/4 (6.35mm)	2-3/32	2	45752
110°	1-1/4	7/16 (11.11mm)	47/64 (18.65mm)	1/4 (6.35mm)	2 (50.80mm)	2	45754
120°	19.5mm	5mm	19.05mm	12.7mm	64.294mm	2	45753
120°	1-1/4	23/64 (9.13mm)	21/32 (16.67mm)	1/4 (6.35mm)	1-59/64	2	45756
130°	1-1/4	9/32 (7.14mm)	31/64 (12.30mm)	1/4 (6.35mm)	1-3/4	2	45758
150°	1-1/4	11/64 (4.37mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-11/16	2	45770

Weight	0.14 lbs
