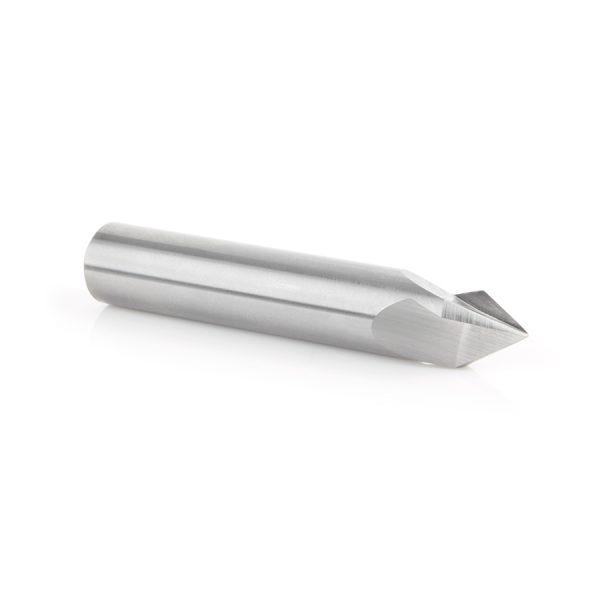

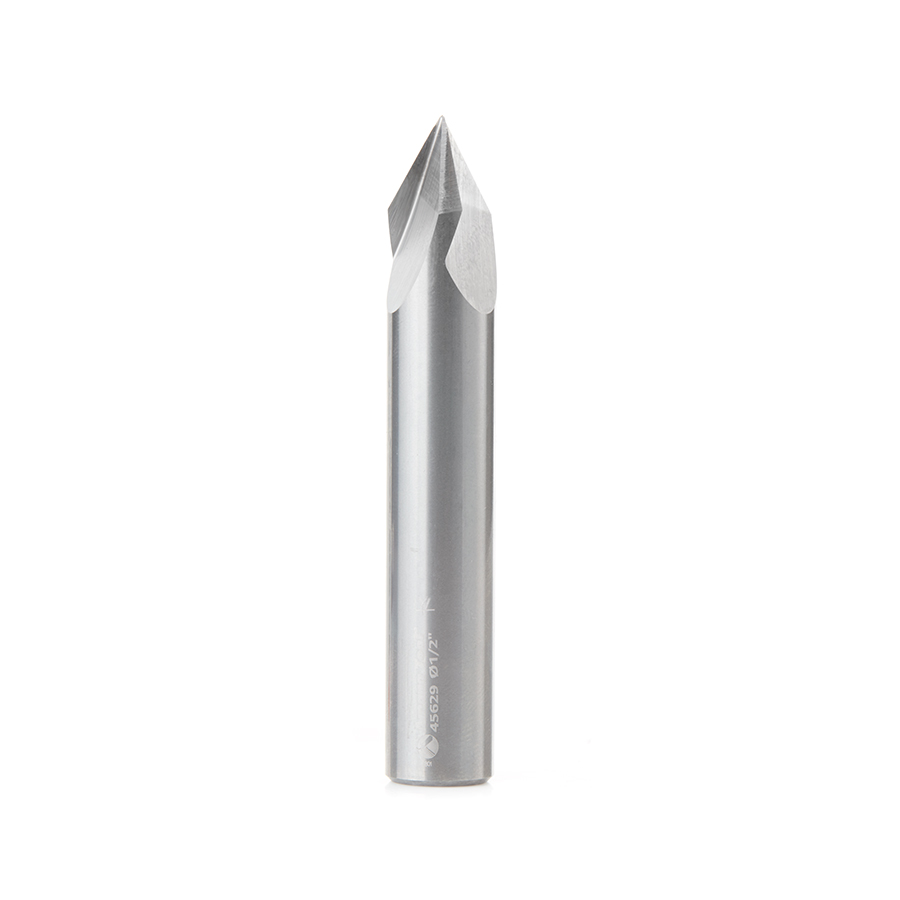

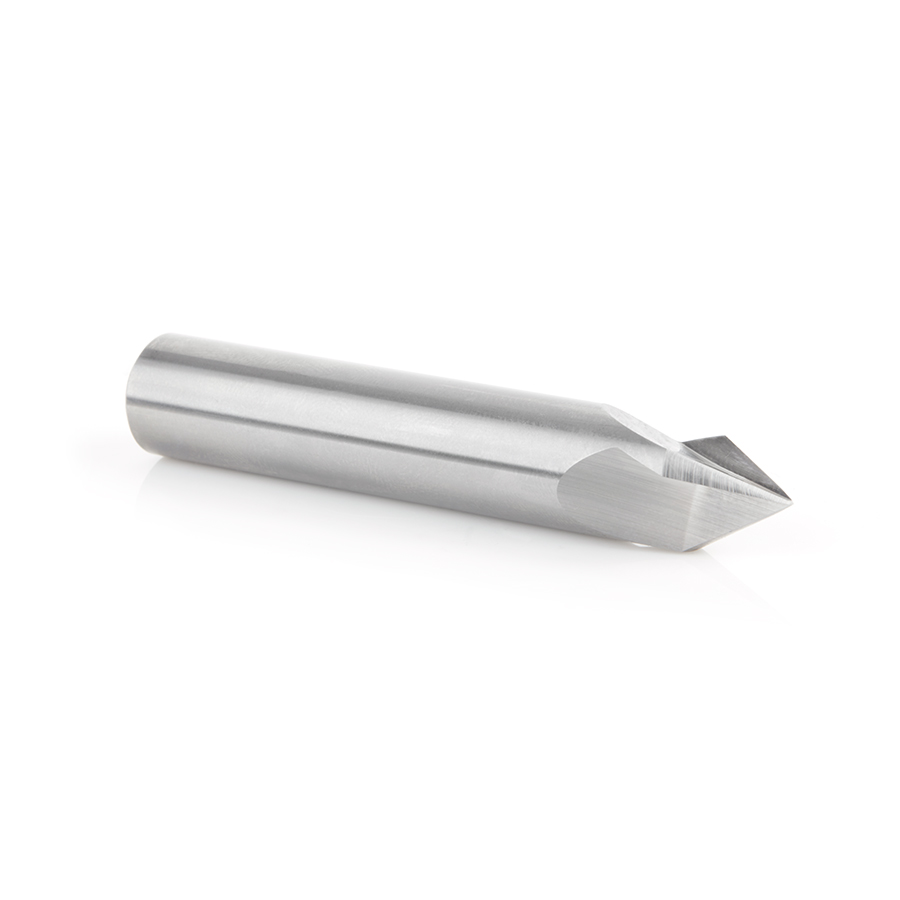

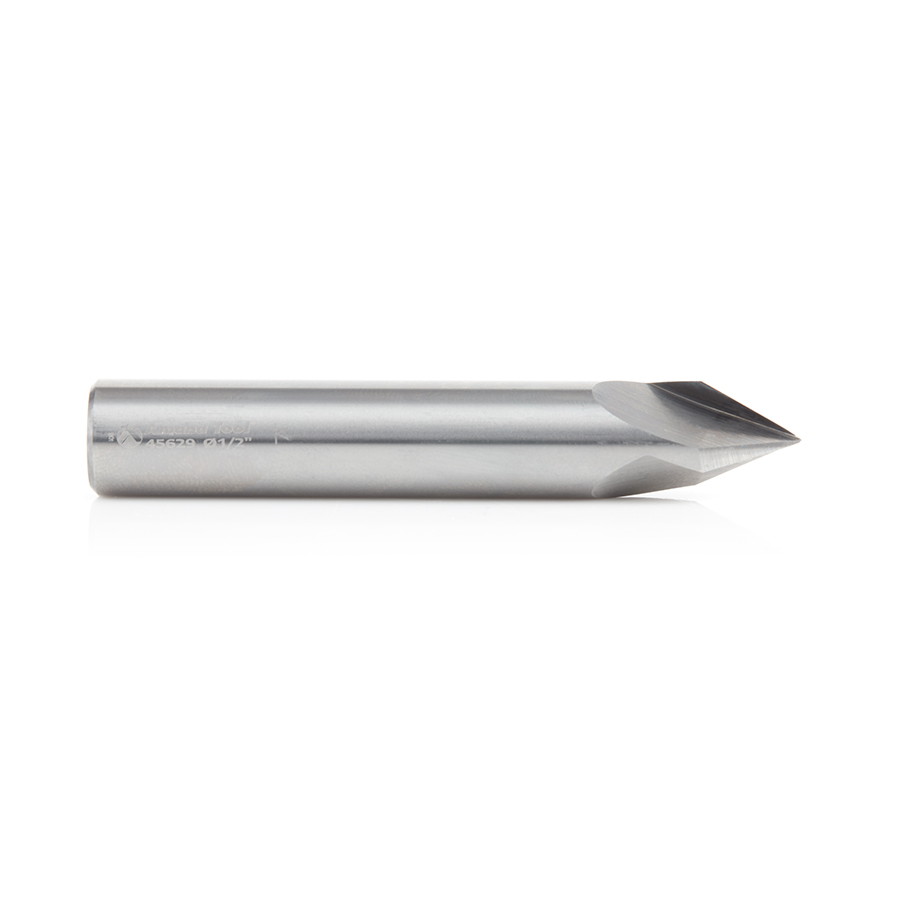

45629 Solid Carbide V-Groove 60 Deg x 1/2 Dia x 7/16 x 1/2 Inch Shank

Amana 45629 Solid Carbide V-Groove 60 Deg x 1/2 Dia x 7/16 x 1/2 Inch Shank

Name: Amana 45629 Solid Carbide V-Groove 60 Deg x 1/2 Dia x 7/16 x 1/2 Inch Shank
SKU: Amana 45629
Availability: InStock

Original price was: $159.45.Current price is: $119.59.

60D V GROOVE 3FL 1/2″Dx1/2″SHK

UPC: 738685456293 SKU: Amana 45629 Categories: Amana Tool, Router Bits, Signmaking Router Bits, V Groove Router Bits

Item Description

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

20lbs High Density Urethane
Acrylic
Composites
Composite Decking
Foam
Laminate
MDF/HDF
Melamine

Plywood
PVC Plastic
Sign Board
Solid Surface
Veneered Plywood
Wood
Xanita® Board

Specifications

Angle (a°)	60°
Diameter (D)	1/2
Cutting Height (B)	7/16
B1	5/8
Shank (d)	1/2
Overall Length (L)	3
Flutes	3

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Flutes	Tool No.
45°	1/2 (12.70mm)	5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	2	45711
60°	1/4 (6.35mm)	7/32 (5.56mm)	31/64 (12.30mm)	1/4 (6.35mm)	2 (50.80mm)	3	45624
60°	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	2	45705
60°	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	2	45705-5
60°	12.7mm	10.5mm	16mm	6mm	44mm	2	45705-M
60°	1/2 (12.70mm)	27/64 (10.72mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/4	2	45706
60°	1/2 (12.70mm)	7/16 (11.11mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	2	45709
90°	1/4 (6.35mm)	1/8 (3.18mm)	9/16 (14.29mm)	1/4 (6.35mm)	1-1/2	2	45625
90°	3/8 (9.53mm)	3/16 (4.76mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-5/8	2	45700
90°	3/8 (9.53mm)	3/16 (4.76mm)	7/16 (11.11mm)	1/2 (12.70mm)	2 (50.80mm)	2	45702
90°	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-5/8	2	45704
90°	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-5/8	2	45704-5
90°	12.7mm	6mm	12.7mm	6mm	41mm	2	45704M
90°	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/8	2	45708
90°	5/8 (15.88mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/4 (6.35mm)	1-5/8	2	45710
90°	5/8 (15.88mm)	5/16 (7.94mm)	1/2 (12.70mm)	1/2 (12.70mm)	2 (50.80mm)	2	45712
90°	3/4 (19.05mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	2	45714
90°	3/4 (19.05mm)	3/8 (9.53mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-1/8	2	45716
90°	7/8 (22.23mm)	7/16 (11.11mm)	3/4 (19.05mm)	1/4 (6.35mm)	1-7/8	2	45718
90°	7/8 (22.23mm)	7/16 (11.11mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	45720
90°	1 (25.40mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	1-7/8	2	45722
90°	1/2 (12.70mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	45723
90°	1 (25.40mm)	1/2 (12.70mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-1/4	2	45724
90°	1-1/4	9/16 (14.29mm)	1 (25.40mm)	1/2 (12.70mm)	2-1/2	2	45726
90°	1-1/2	3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	45728
90°	2 (50.80mm)	1 (25.40mm)	1-3/4	1/2 (12.70mm)	3-1/4	2	45732
90°	1-1/4	5/8 (15.88mm)	15/16 (23.81mm)	1/4 (6.35mm)	2-13/64	2	45751
–	–	–	–	–	–	—-	45728-CNC
–	–	–	–	–	–	—-	45732-CNC
100°	1-1/4	17/32 (13.49mm)	53/64 (21.03mm)	1/4 (6.35mm)	2-3/32	2	45752
110°	1-1/4	7/16 (11.11mm)	47/64 (18.65mm)	1/4 (6.35mm)	2 (50.80mm)	2	45754
120°	19.5mm	5mm	19.05mm	12.7mm	64.294mm	2	45753
120°	1-1/4	23/64 (9.13mm)	21/32 (16.67mm)	1/4 (6.35mm)	1-59/64	2	45756
130°	1-1/4	9/32 (7.14mm)	31/64 (12.30mm)	1/4 (6.35mm)	1-3/4	2	45758
150°	1-1/4	11/64 (4.37mm)	7/16 (11.11mm)	1/4 (6.35mm)	1-11/16	2	45770

Weight	0.28 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
