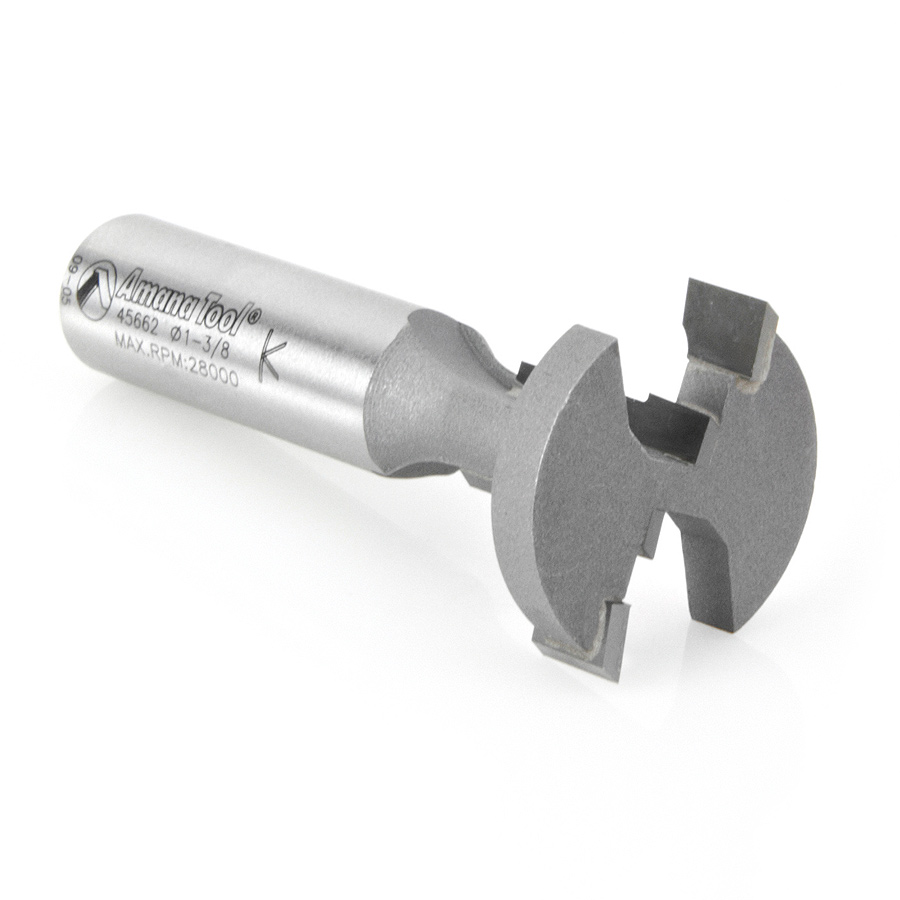

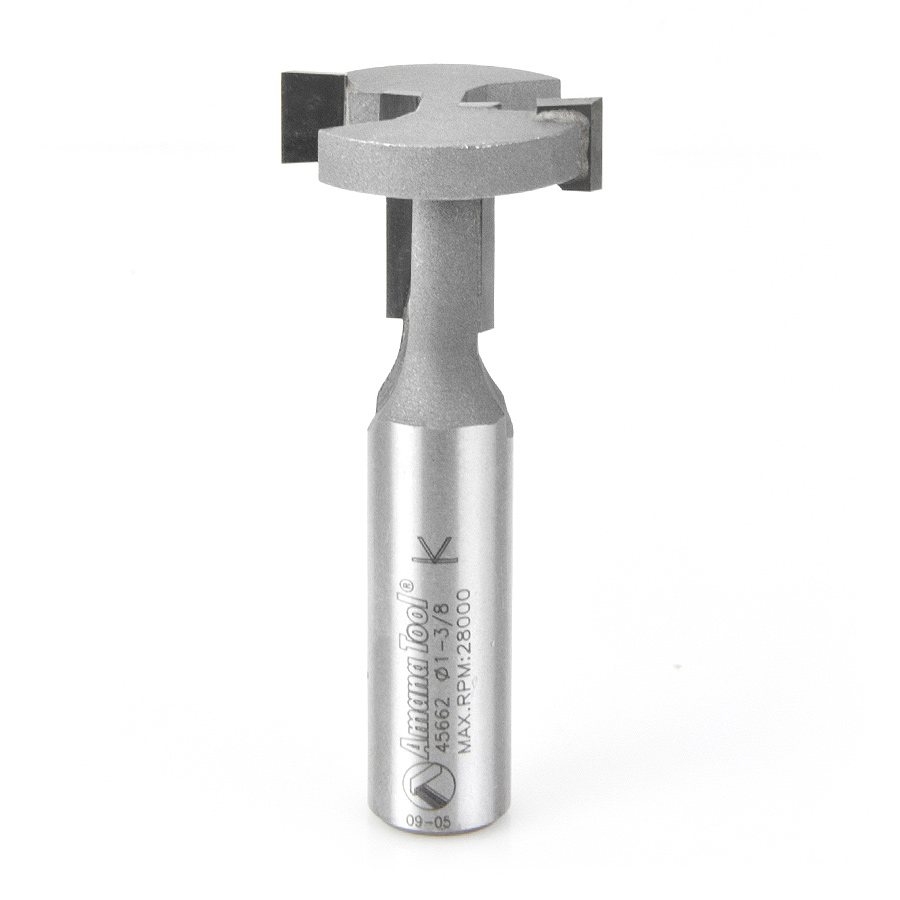

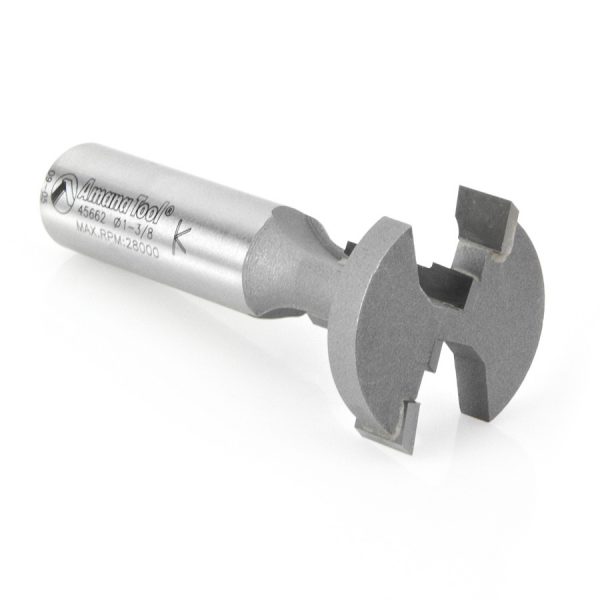

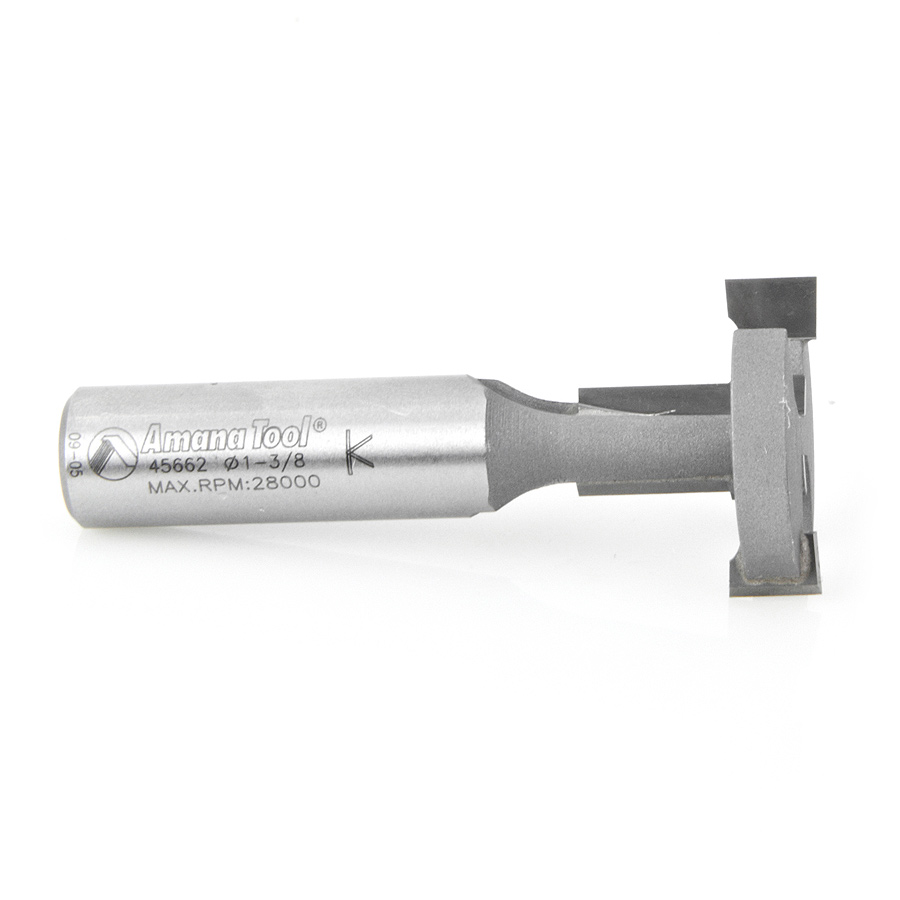

Amana 45662 T-Slot Square Edge 1-3/8 Dia x 7/8 x 1/2 Inch Shank
Original price was: $106.30.$79.73Current price is: $79.73.
T SLOT 1-3/8 DIA. 3/8 KERF.
Item Description
Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.
Note:** These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.

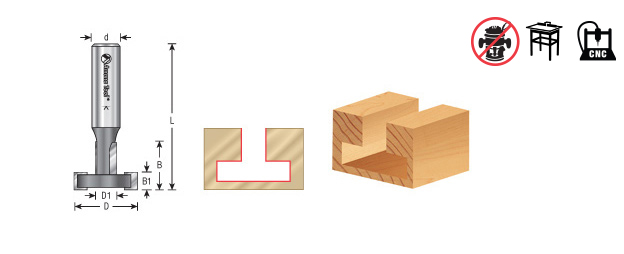

Specifications
| Diameter (D) | 1-3/8 |
|---|---|
| D1 | 1/2 |
| Cutting Height (B) | 7/8 |
| B1 | 3/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-1/2 |
| Type | Straight |
| Flutes | 2 |
Other Sizes Available
| Angle (a°) | Type | Diameter (D) | D1 | Radius (R) | a1° | Cutting Height (B) | B1 | Shank (d) | Overall Length (L) | Tool No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 29° | Radius | 1-3/16 | 3/8 (9.53mm) | 1/8 (3.18mm) | – | 3/4 (19.05mm) | 9/32 (7.14mm) | 1/2 (12.70mm) | 2-3/8 | 45666 |
| 30° | Bevel | 1-3/8 | 3/8 (9.53mm) | – | 15° | 35/64 (13.89mm) | 1/4 (6.35mm) | 1/2 (12.70mm) | 2-3/64 | 45671 |
| – | Straight | 1-1/8 | 3/8 (9.53mm) | – | – | 13/16 (20.64mm) | 5/16 (7.94mm) | 1/2 (12.70mm) | 2-1/2 | 45660 |
| – | Radius | 1-13/64 | 13/32 (10.32mm) | 1/16 (1.59mm) | – | 43/64 (17.07mm) | 23/64 (9.13mm) | 1/2 (12.70mm) | 2-13/32 | 45661 |
| – | Radius | 1-3/8 | 1/2 (12.70mm) | 1/8 (3.18mm) | – | 7/8 (22.23mm) | 3/8 (9.53mm) | 1/2 (12.70mm) | 2-1/2 | 45667 |
| Weight | 0.22 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
