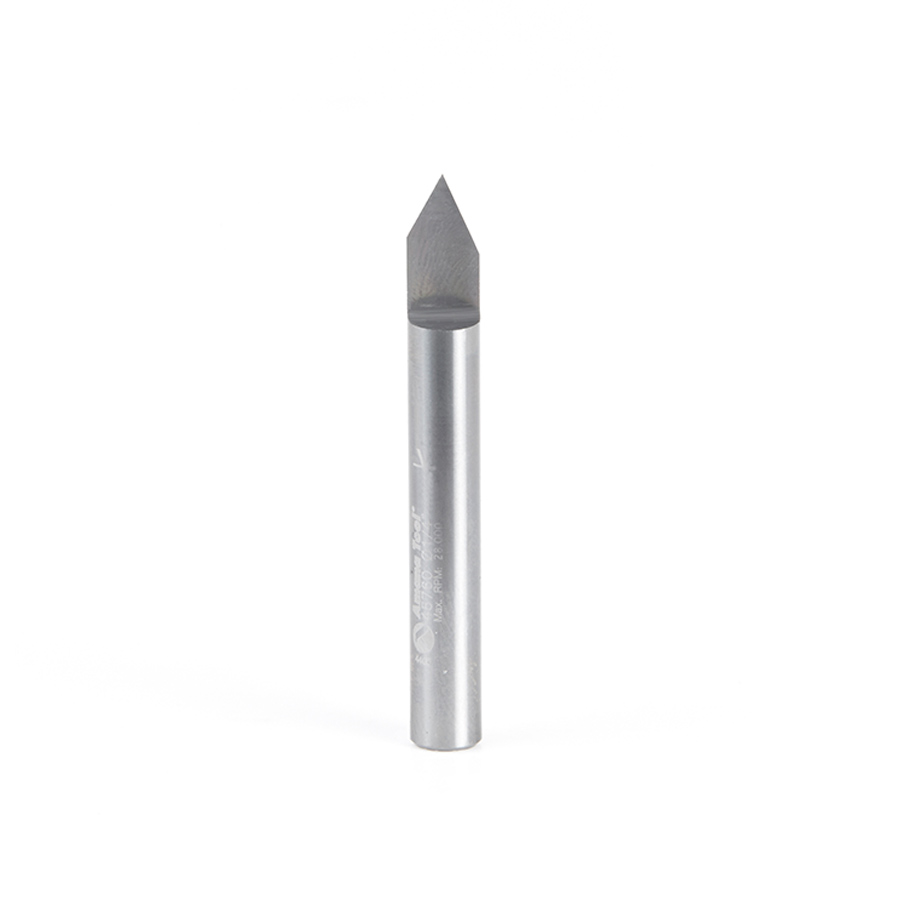

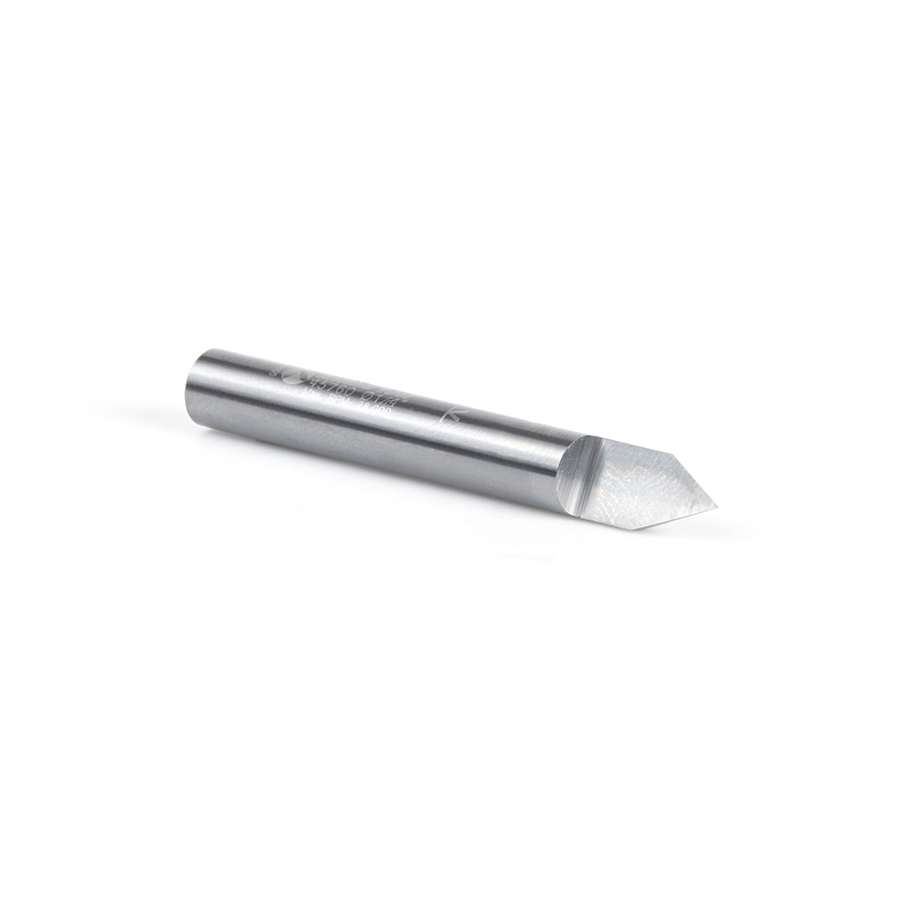

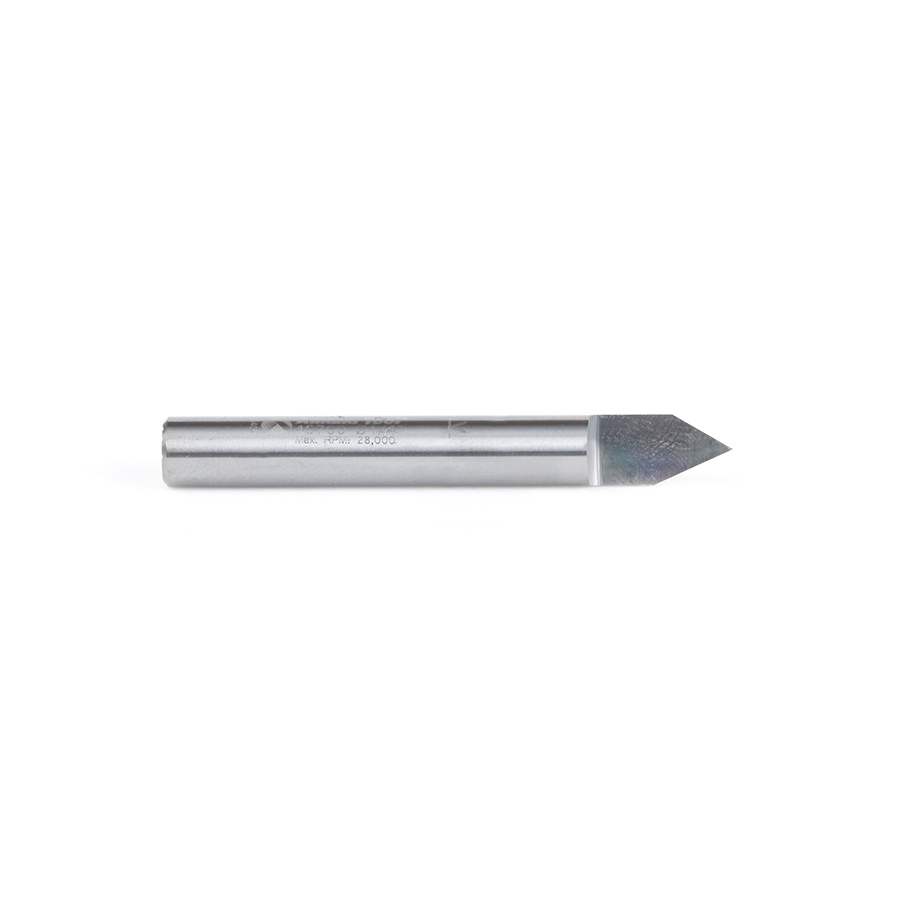

45760 Solid Carbide 60 Degree Engraving 0.005 Tip Width x 1/4 Shank x 2 Inch Long Signmaking Router Bit

Amana 45760 Solid Carbide 60 Degree Engraving 0.005 Tip Width x 1/4 Shank x 2 Inch Long Signmaking Router Bit

Name: Amana 45760 Solid Carbide 60 Degree Engraving 0.005 Tip Width x 1/4 Shank x 2 Inch Long Signmaking Router Bit
SKU: Amana 45760
Availability: InStock

Original price was: $56.75.Current price is: $42.57.

0.005″ TIP 60D ENGRAVING BIT

UPC: 738685000458 SKU: Amana 45760 Categories: Amana Tool, Router Bits, Signmaking Router Bits, Solid Carbide Engraving Router Bits for Signmaking

Item Description

For extra-fine carving and lettering details. These tools are used for wood, plastic, aluminum and solid surface materials.

Vectric compatible tool file for 45760 available for download,click here.

Specifications

Angle (a°)	60°
Cutting Height (B)	0.212"
Shank (d)	1/4
Overall Length (L)	2
Tip Width (t)	0.005"

Other Sizes Available

Angle (a°)	Tip Width (t)	Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
30°	0.0108"0.01	–	0.413"0.41	1/4 (6.35mm)	2 (50.80mm)	45620
30°	0.035"0.04	–	0.349"0.35	1/4 (6.35mm)	2 (50.80mm)	45621
30°	0.005"0.01	–	0.240"0.24	1/8 (3.18mm)	2-1/4	45630
30°	0.005"0.01	–	0.440"0.44	1/4 (6.35mm)	2-1/4	45771
30°	0.010"0.01	–	0.440"0.44	1/4 (6.35mm)	2-1/4	45772
30°	0.020"0.02	–	0.420"0.42	1/4 (6.35mm)	2-1/4	45773
30°	0.030"0.03	–	0.400"0.40	1/4 (6.35mm)	2-1/4	45774
30°	0.040"0.04	–	0.380"0.38	1/4 (6.35mm)	2-1/4	45775
30°	0.060"0.06	–	0.340"0.34	1/4 (6.35mm)	2-1/4	45776
30°	0.090"0.09	–	0.290"0.29	1/4 (6.35mm)	2-1/4	45777
45°	0.005"0.01	1/4 (6.35mm)	0.296"0.30	1/4 (6.35mm)	2-1/4	45601
45°	0.020"0.02	1/4 (6.35mm)	0.276"0.28	1/4 (6.35mm)	2-1/4	45602
45°	0.025"0.03	1/4 (6.35mm)	0.272"0.27	1/4 (6.35mm)	2 (50.80mm)	45622
45°	0.042"0.04	1/4 (6.35mm)	0.242"0.24	1/4 (6.35mm)	2 (50.80mm)	45623
60°	0.010"0.01	–	0.208"0.21	1/4 (6.35mm)	2 (50.80mm)	45761
60°	0.020"0.02	–	0.199"0.20	1/4 (6.35mm)	2 (50.80mm)	45763
60°	0.030"0.03	–	0.191"0.19	1/4 (6.35mm)	2 (50.80mm)	45765
60°	0.060"0.06	–	0.165"0.17	1/4 (6.35mm)	2 (50.80mm)	45767
60°	0.090"0.09	–	0.139"0.14	1/4 (6.35mm)	2 (50.80mm)	45768
60°	0.005"	–	–	1/4 (6.35mm)	2 (50.80mm)	45769
–	–	–	–	–	–	AMS-129

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
