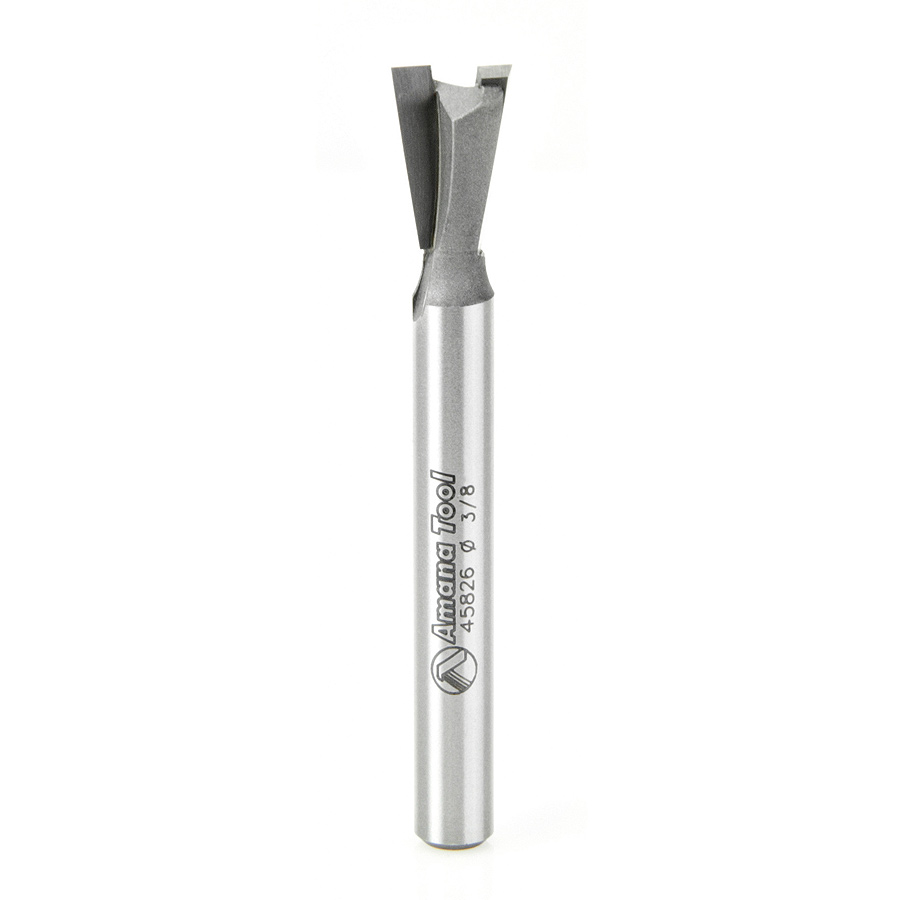

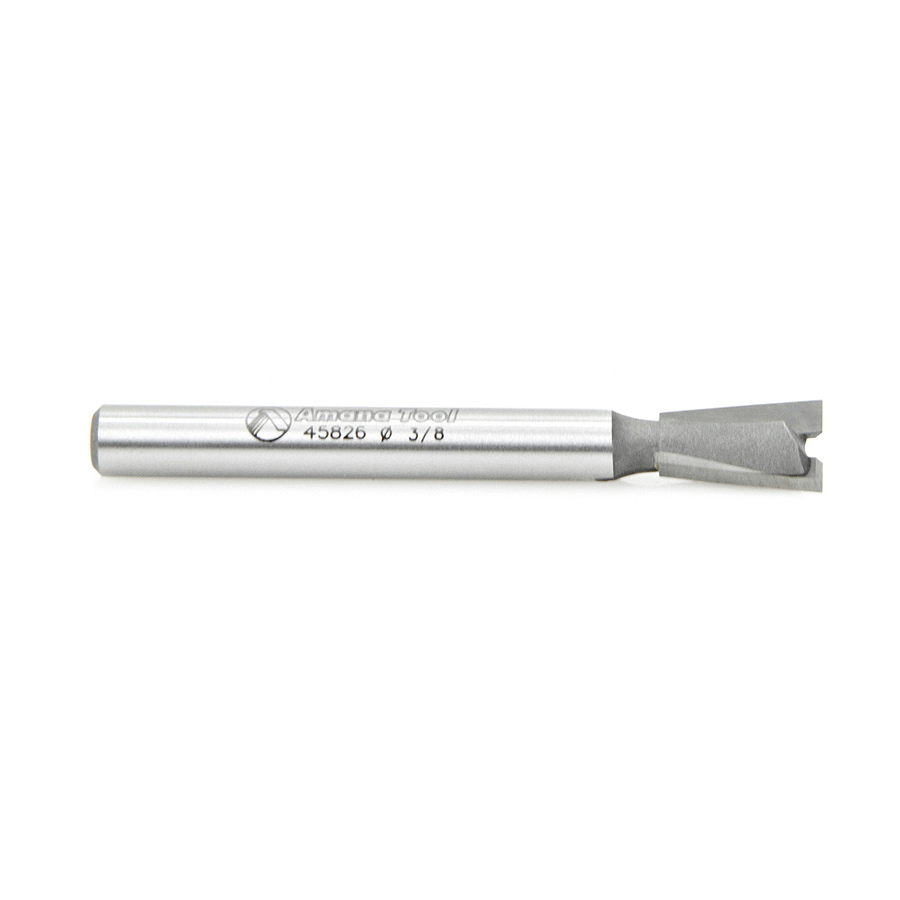

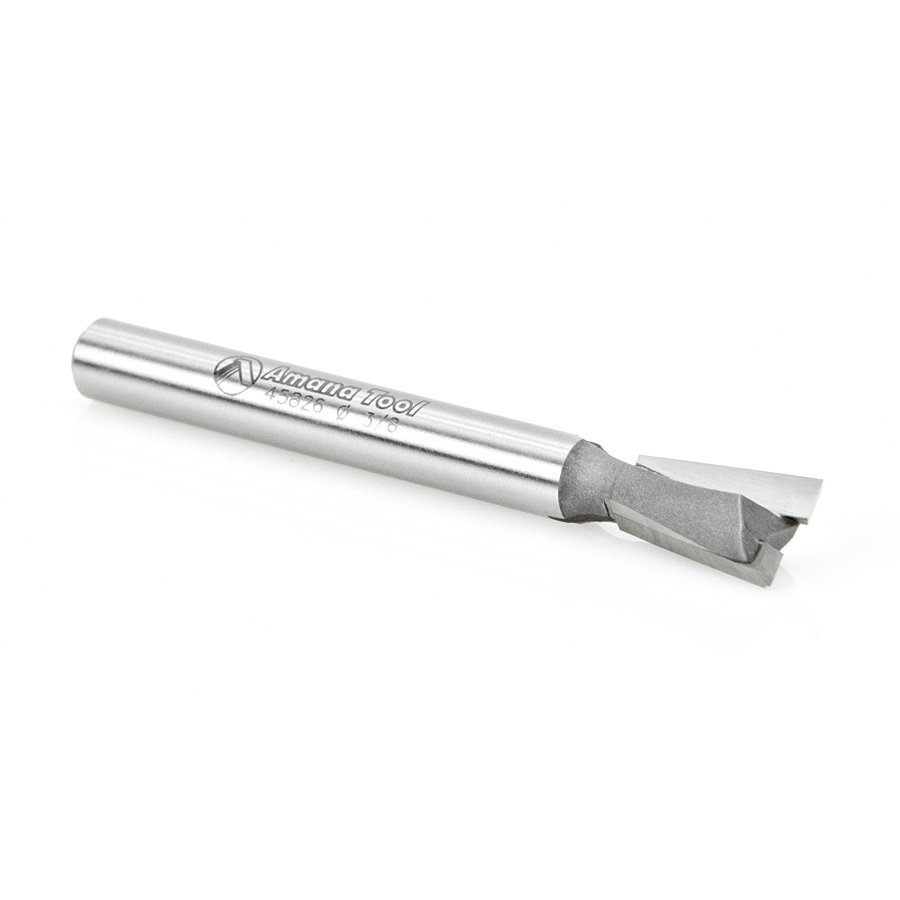

45826 Carbide Tipped Dovetail 8 Deg x 3/8 Dia x .532 x 1/4 Inch Shank

Amana 45826 Carbide Tipped Dovetail 8 Deg x 3/8 Dia x .532 x 1/4 Inch Shank

Name: Amana 45826 Carbide Tipped Dovetail 8 Deg x 3/8 Dia x .532 x 1/4 Inch Shank
SKU: Amana 45826
Availability: InStock

Original price was: $27.25.Current price is: $20.44.

DOVETAIL 3/8 DIA 1/4 SHANK

UPC: 738685458266 SKU: Amana 45826 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

These 8° dovetail bits are designed especially for use with the Leigh® Dovetail Jig.

Specifications

Angle (a°)	8°
Diameter (D)	3/8
Cutting Height (B)	0.532
Shank (d)	1/4
Overall Length (L)	2-3/8
Flutes	2
Application	Leigh® #70

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Application	Tool No.
8°	0.260 (6.60mm)	.270 (6.86mm)	1/4 (6.35mm)	2-11/64	2	Leigh®	45824
8°	7/16 (11.11mm)	0.650 (16.51mm)	1/4 (6.35mm)	2-9/16	2	Leigh®	45827
8°	1/2 (12.70mm)	0.825 (21.08mm)	1/4 (6.35mm)	2-3/4	2	Leigh®	45828
8°	11/16 (17.46mm)	1.025 (26.16mm)	1/2 (12.70mm)	3 (76.20mm)	2	Leigh®	45829
8°	0.8 (20.32mm)	1.275 (32.51mm)	1/2 (12.70mm)	3.222 (81.79mm)	2	Leigh®	45830

Weight	0.04 lbs
