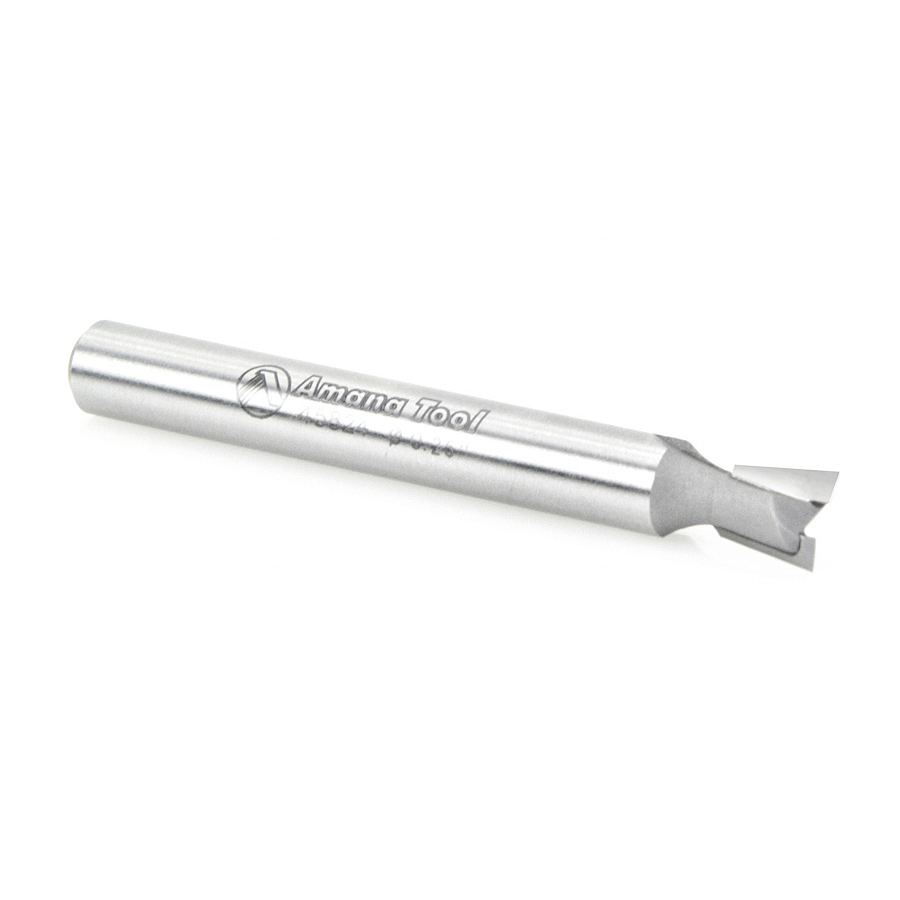

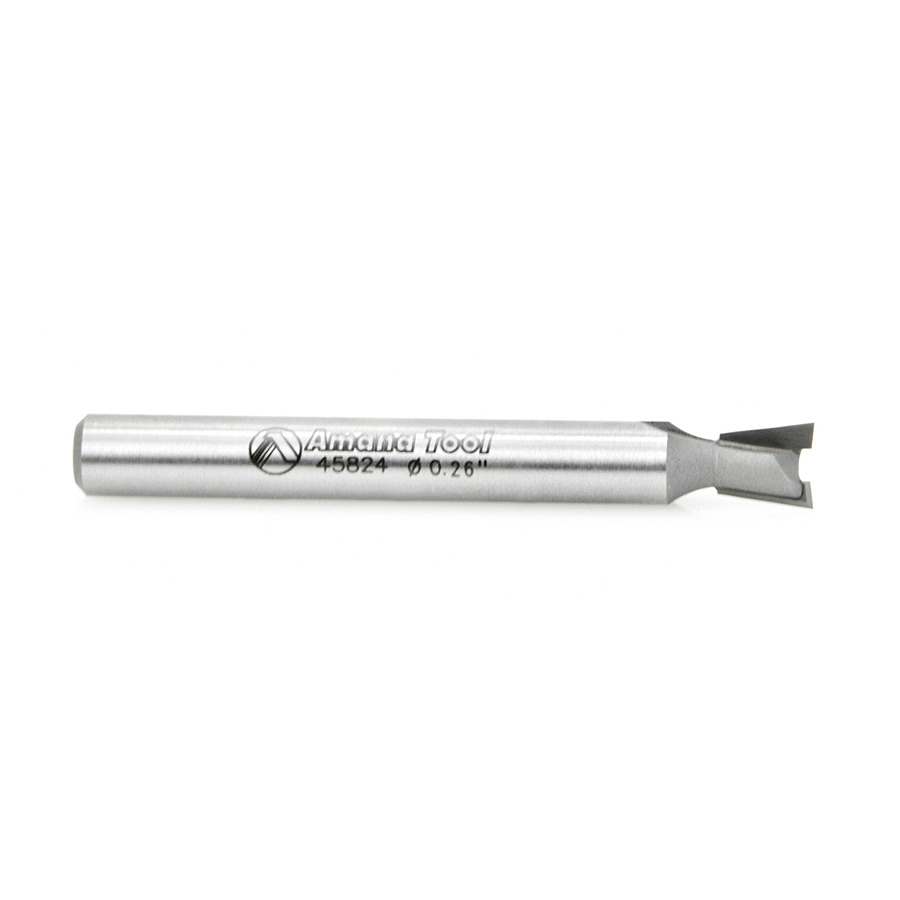

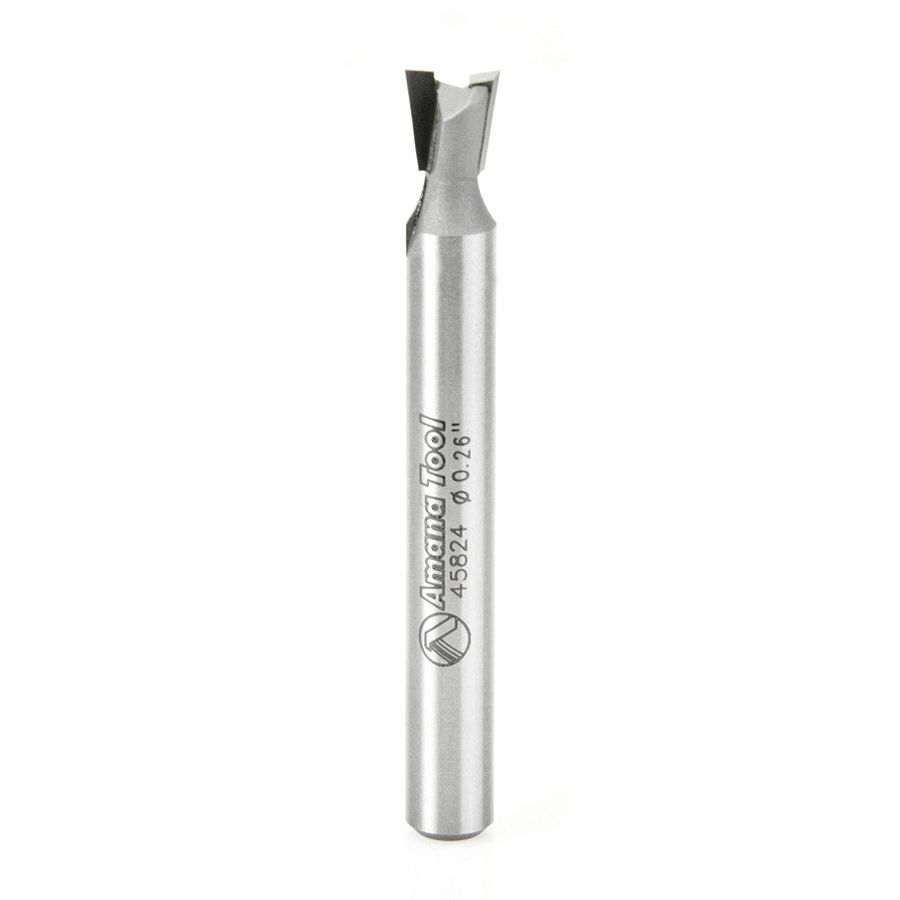

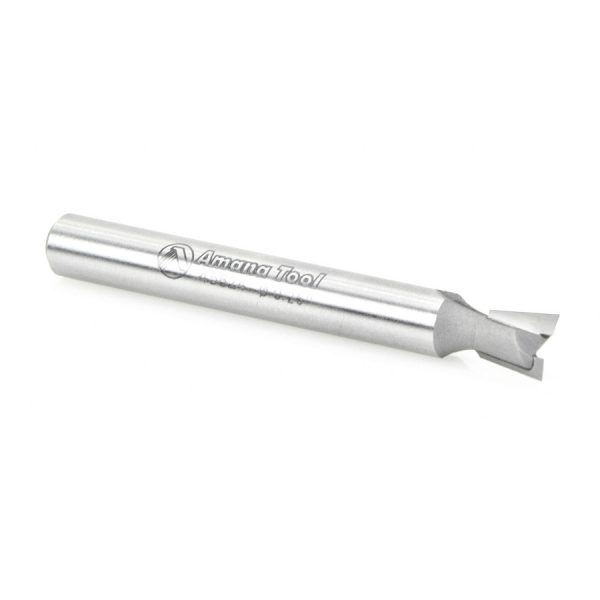

45824 Carbide Tipped Dovetail 8 Deg x .260 Dia x .270 x 1/4 Inch Shank

Amana 45824 Carbide Tipped Dovetail 8 Deg x .260 Dia x .270 x 1/4 Inch Shank

Name: Amana 45824 Carbide Tipped Dovetail 8 Deg x .260 Dia x .270 x 1/4 Inch Shank
SKU: Amana 45824
Availability: InStock

Original price was: $31.30.Current price is: $23.48.

DOVETAIL .260 DIA 1/4 SHANK

UPC: 738685458242 SKU: Amana 45824 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

These 8° dovetail bits are designed especially for use with the Leigh® Dovetail Jig.

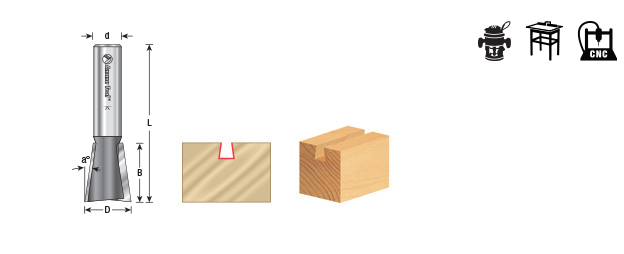

Specifications

Angle (a°)	8°
Diameter (D)	0.260
Cutting Height (B)	.270
Shank (d)	1/4
Overall Length (L)	2-11/64
Flutes	2
Application	Leigh® #50

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Application	Tool No.
8°	3/8 (9.53mm)	0.532 (13.46mm)	1/4 (6.35mm)	2-3/8	2	Leigh®	45826
8°	7/16 (11.11mm)	0.650 (16.51mm)	1/4 (6.35mm)	2-9/16	2	Leigh®	45827
8°	1/2 (12.70mm)	0.825 (21.08mm)	1/4 (6.35mm)	2-3/4	2	Leigh®	45828
8°	11/16 (17.46mm)	1.025 (26.16mm)	1/2 (12.70mm)	3 (76.20mm)	2	Leigh®	45829
8°	0.8 (20.32mm)	1.275 (32.51mm)	1/2 (12.70mm)	3.222 (81.79mm)	2	Leigh®	45830

Weight	0.04 lbs
