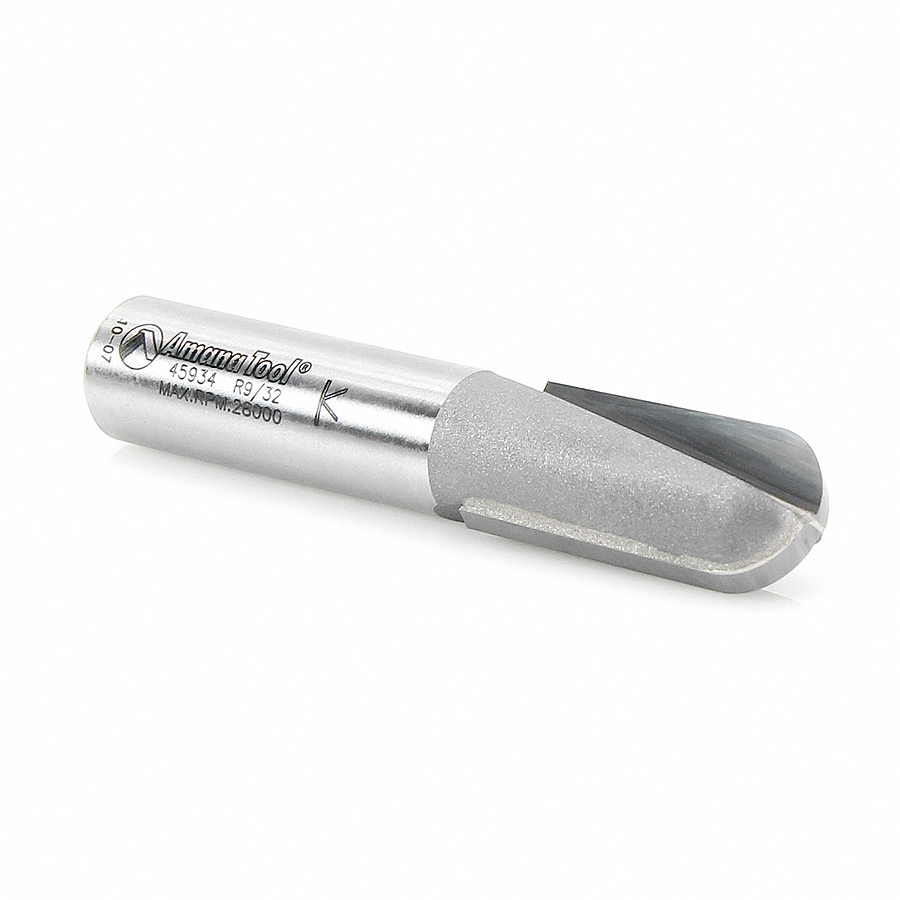

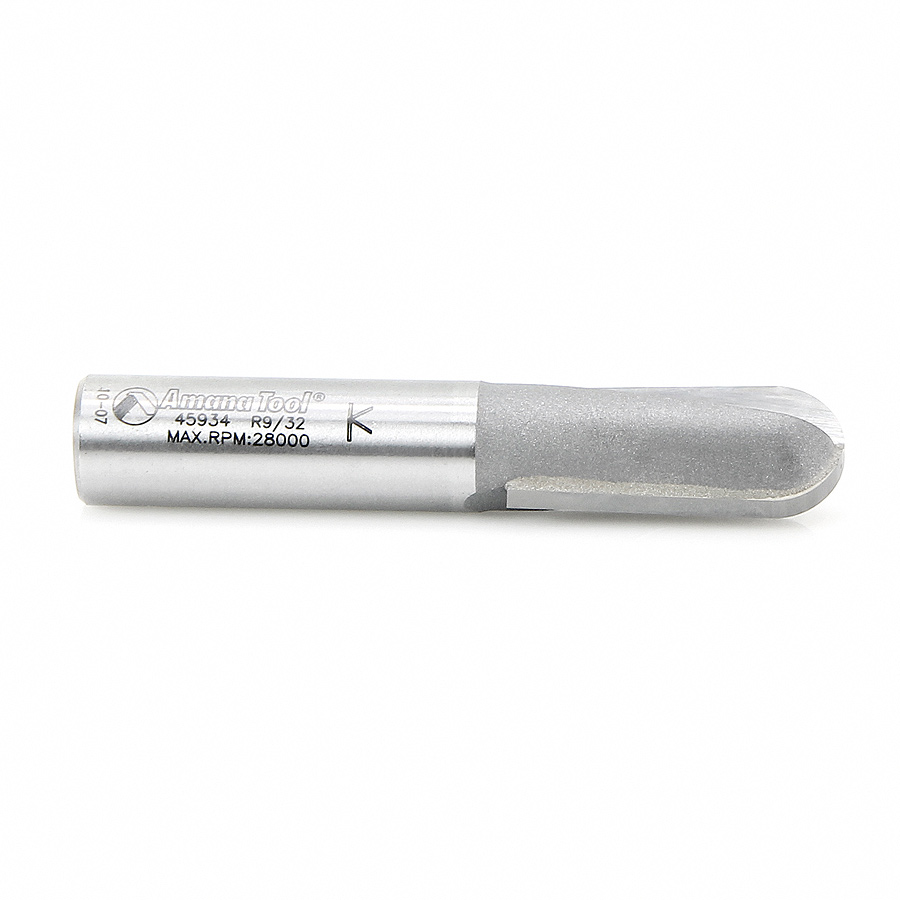

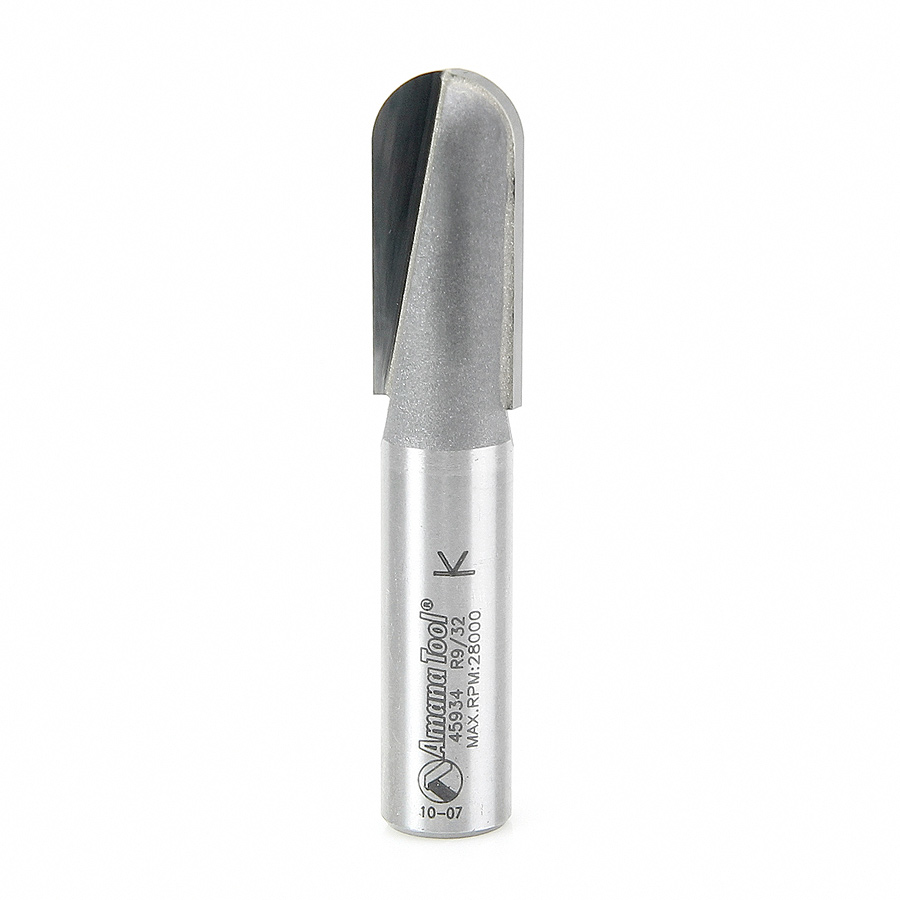

45934 Carbide Tipped Core Box 9/32 Radius x 9/16 Dia x 1-1/4 x 1/2 Inch Shank Extra Deep

Amana 45934 Carbide Tipped Core Box 9/32 Radius x 9/16 Dia x 1-1/4 x 1/2 Inch Shank Extra Deep

Name: Amana 45934 Carbide Tipped Core Box 9/32 Radius x 9/16 Dia x 1-1/4 x 1/2 Inch Shank Extra Deep
SKU: Amana 45934
Availability: InStock

Original price was: $99.30.Current price is: $74.48.

CORE BOX 9/32 RAD. EXTRA LONG

UPC: 738685859346 SKU: Amana 45934 Categories: Amana Tool, Core Box Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut much deeper flutes than possible with a regular core box bit. Perfect for making flutes on CNC machines.

Excellent for cutting:

H igh Density Urethane (HDU Board)
Laminate
MDF
Softwood/Hardwood
Veneered Plywood

Specifications

Diameter (D)	9/16
Radius (R)	9/32
Cutting Height (B)	1-1/4
Shank (d)	1/2
Overall Length (L)	2-7/8
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Max RPM	Tool No.
3/8 (9.53mm)	3/16 (4.76mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	—-	45930
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	—-	45932
5/8 (15.88mm)	5/16 (7.94mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	—-	45936
3/4 (19.05mm)	3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	—-	45938
1 (25.40mm)	1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	—-	45942
2 (50.80mm)	1 (25.40mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	14,000	45948
1-1/4	5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	20,000	45944
2-1/4	1-1/8	1-1/4	1/2 (12.70mm)	2-3/4	2	14,000	45949
1-1/2	3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	18,000	45946

Weight	0.14 lbs
