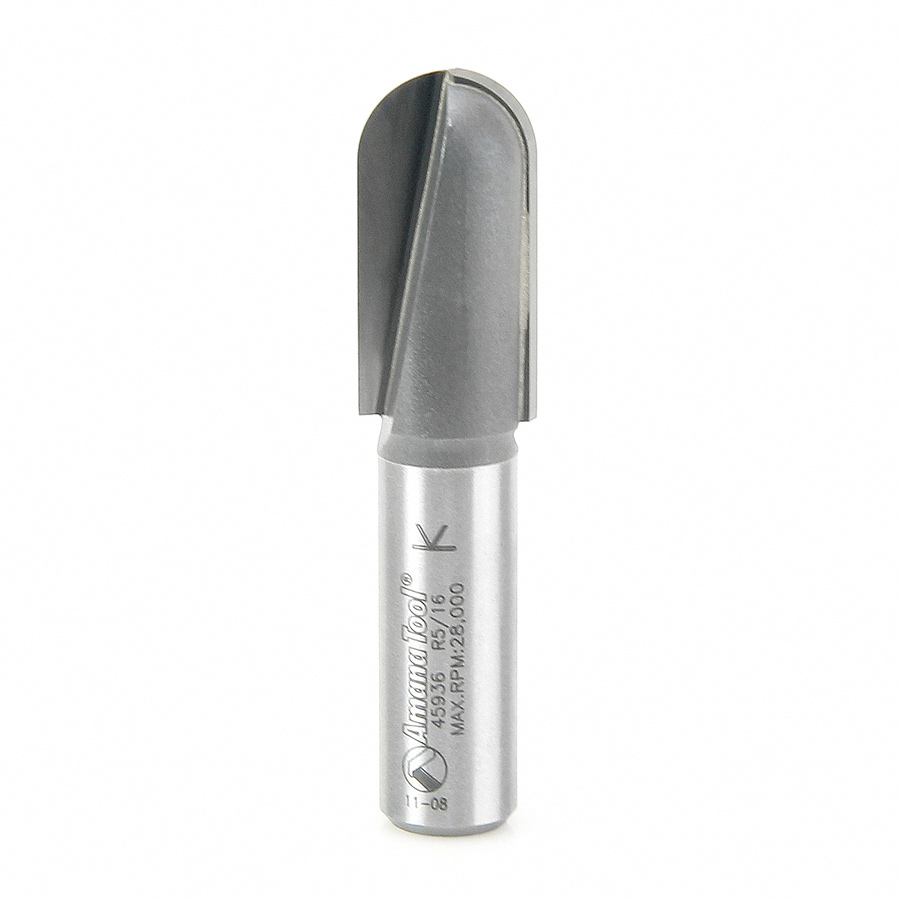

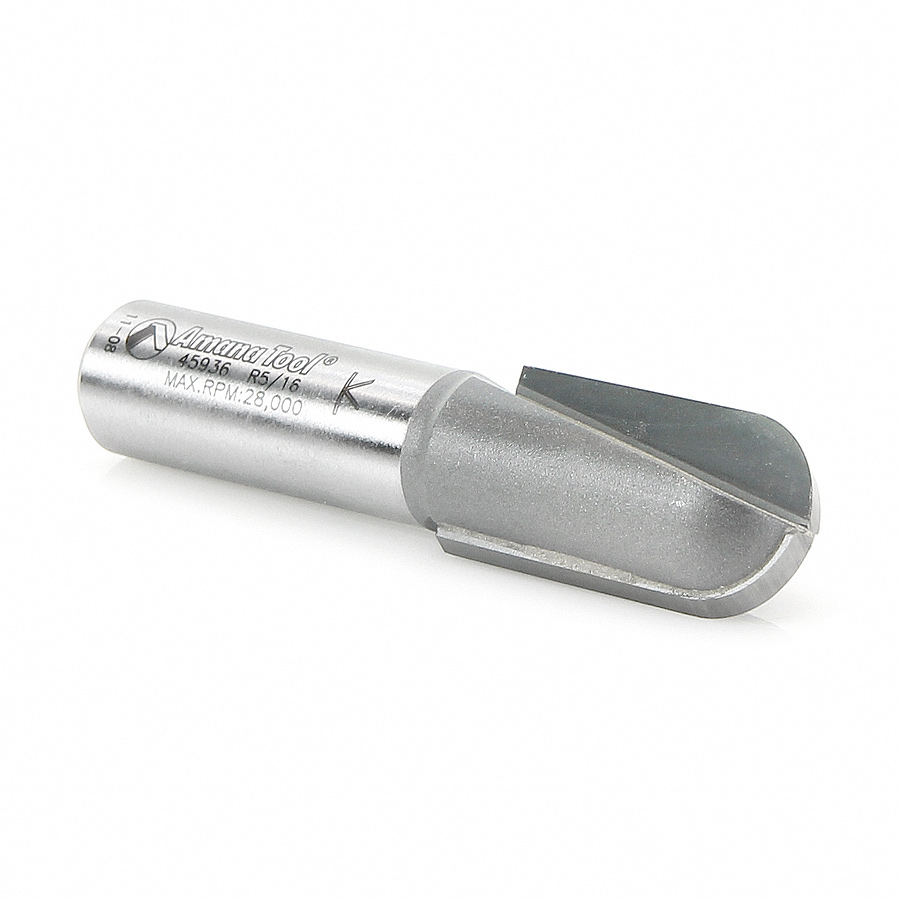

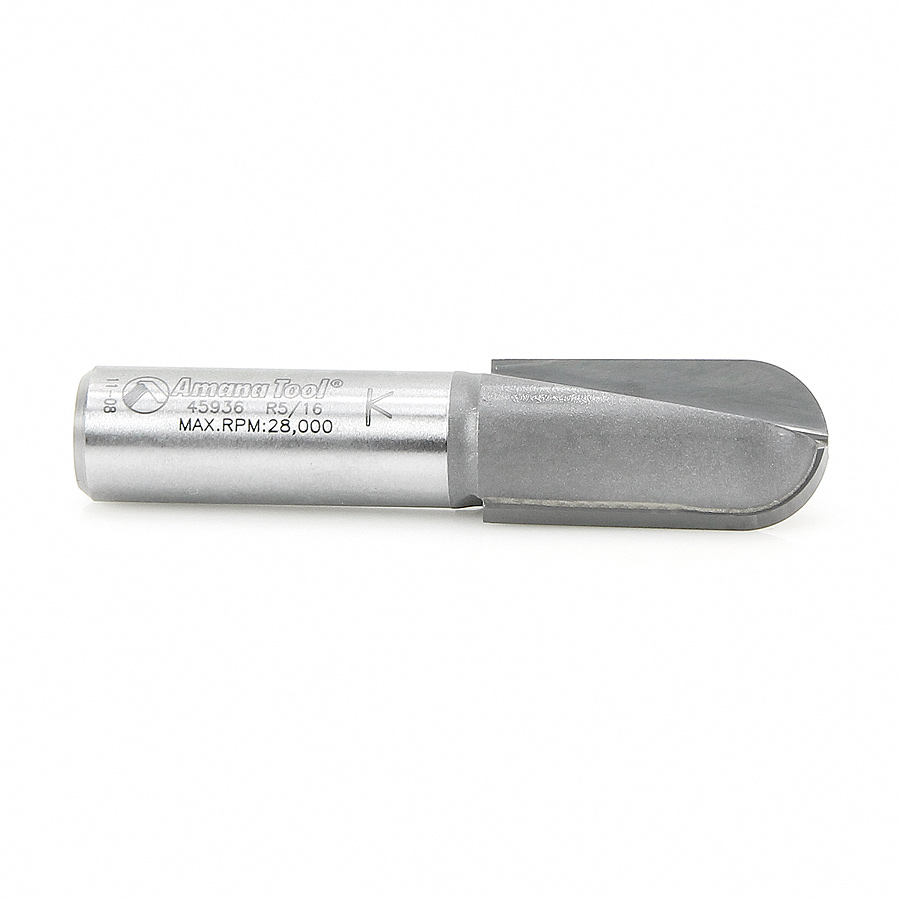

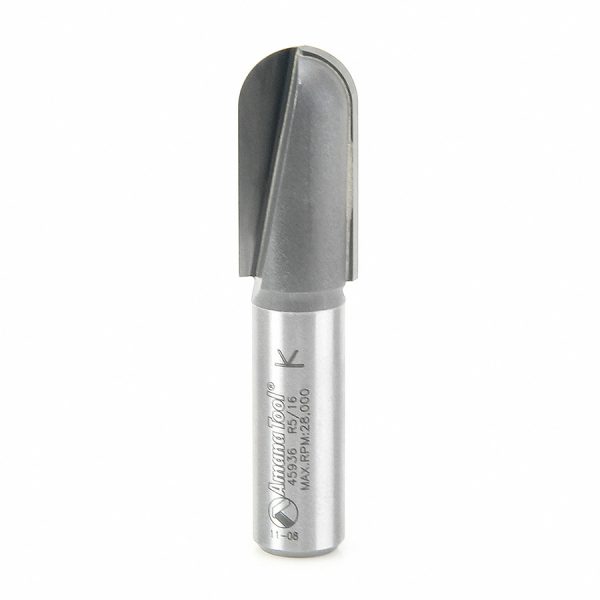

45936 Carbide Tipped Core Box 5/16 Radius x 5/8 Dia x 1-1/4 x 1/2 Inch Shank Extra Deep

Amana 45936 Carbide Tipped Core Box 5/16 Radius x 5/8 Dia x 1-1/4 x 1/2 Inch Shank Extra Deep

Name: Amana 45936 Carbide Tipped Core Box 5/16 Radius x 5/8 Dia x 1-1/4 x 1/2 Inch Shank Extra Deep
SKU: Amana 45936
Availability: InStock

Original price was: $102.45.Current price is: $76.84.

CORE BOX 5/16 RAD. EXTRA LONG

UPC: 738685859360 SKU: Amana 45936 Categories: Amana Tool, Core Box Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut much deeper flutes than possible with a regular core box bit. Perfect for making flutes on CNC machines.

Excellent for cutting:

H igh Density Urethane (HDU Board)
Laminate
MDF
Softwood/Hardwood
Veneered Plywood

Specifications

Diameter (D)	5/8
Radius (R)	5/16
Cutting Height (B)	1-1/4
Shank (d)	1/2
Overall Length (L)	2-3/4
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Max RPM	Tool No.
3/8 (9.53mm)	3/16 (4.76mm)	1 (25.40mm)	1/2 (12.70mm)	2-3/4	2	—-	45930
1/2 (12.70mm)	1/4 (6.35mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	—-	45932
9/16 (14.29mm)	9/32 (7.14mm)	1-1/4	1/2 (12.70mm)	2-7/8	2	—-	45934
3/4 (19.05mm)	3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	—-	45938
1 (25.40mm)	1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	—-	45942
2 (50.80mm)	1 (25.40mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	14,000	45948
1-1/4	5/8 (15.88mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	20,000	45944
2-1/4	1-1/8	1-1/4	1/2 (12.70mm)	2-3/4	2	14,000	45949
1-1/2	3/4 (19.05mm)	1-1/4	1/2 (12.70mm)	2-3/4	2	18,000	45946

Weight	0.16 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
