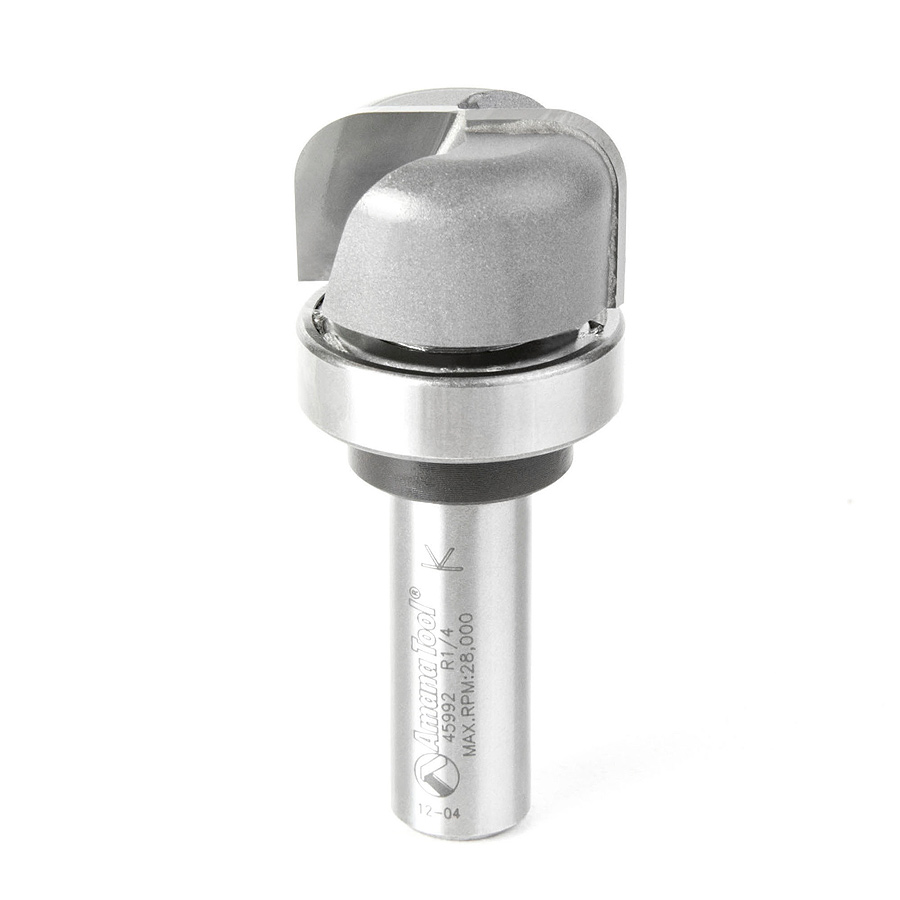

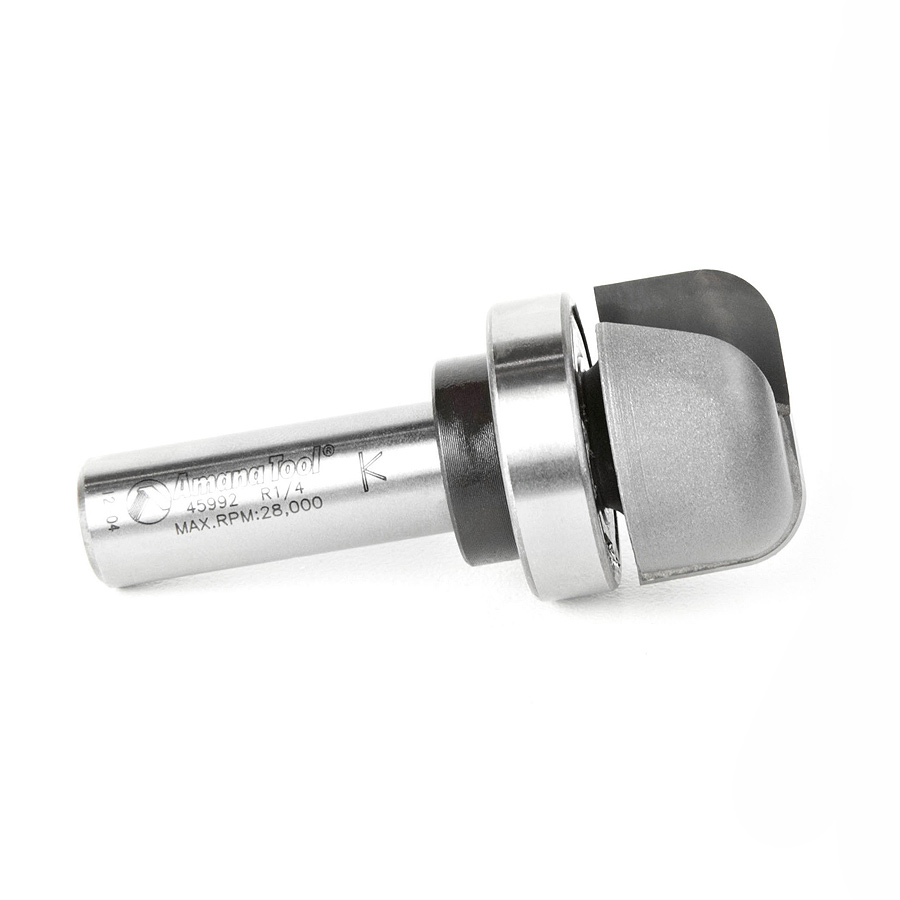

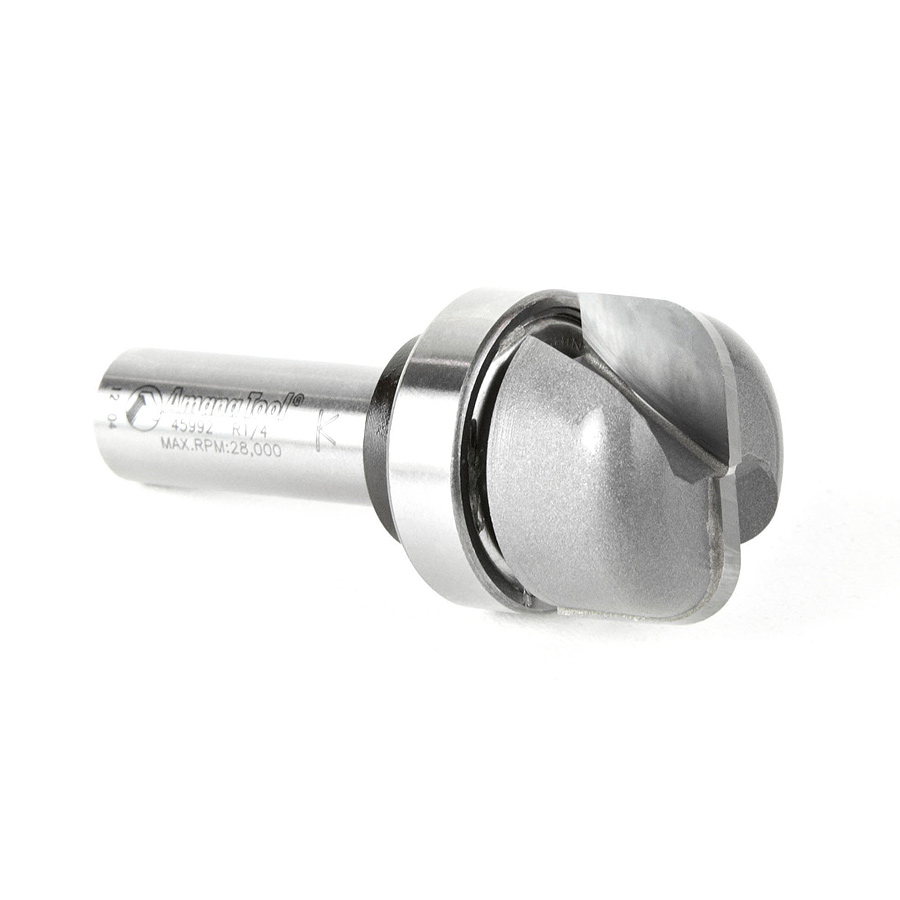

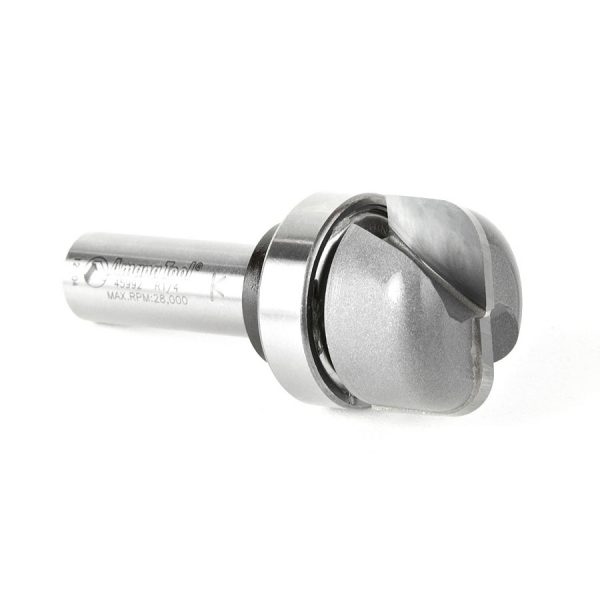

45992 Carbide Tipped Bowl & Tray 1/4 Radius x 1-1/8 Dia x 5/8 x 1/2 Inch Shank with Upper BB

Amana 45992 Carbide Tipped Bowl & Tray 1/4 Radius x 1-1/8 Dia x 5/8 x 1/2 Inch Shank with Upper BB

Name: Amana 45992 Carbide Tipped Bowl &amp; Tray 1/4 Radius x 1-1/8 Dia x 5/8 x 1/2 Inch Shank with Upper BB
SKU: Amana 45992
Availability: InStock

Original price was: $91.95.Current price is: $68.97.

BOWL,TRAY,DISH 3 IN 1 UPPER BB

UPC: 738685859926 SKU: Amana 45992 Categories: Amana Tool, Bowl & Tray Router Bits, Profiling Router Bits, Router Bits

Item Description

For routing solid wood serving trays, flat dishes, shallow bowls, and similar objects, use this 3-in-1 specialty plunging bit. It cuts flat, smooth bottom surfaces, vertical walls, and a transition radius between them, all in one pass. Has a shank-mounted bearing so the bit can be used with a template or pattern.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw	Collar Set Screw Only
45992	47738	47740	67091

Specifications

Diameter (D)	1-1/8
Radius (R)	1/4
Cutting Height (B)	5/8
Shank (d)	1/2
Overall Length (L)	2-5/8
Replacement Collar	47740
Replacement Bearing	47738
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Replacement Collar	Tool No.
1/2 (12.70mm)	1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/8	47701	47724	45983
3/4 (19.05mm)	1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	47714	47724	45988
3/4 (19.05mm)	1/4 (6.35mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-5/8	47721	47739	45990
1-1/4	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/2	47756	47740	45994

Weight	0.38 lbs
