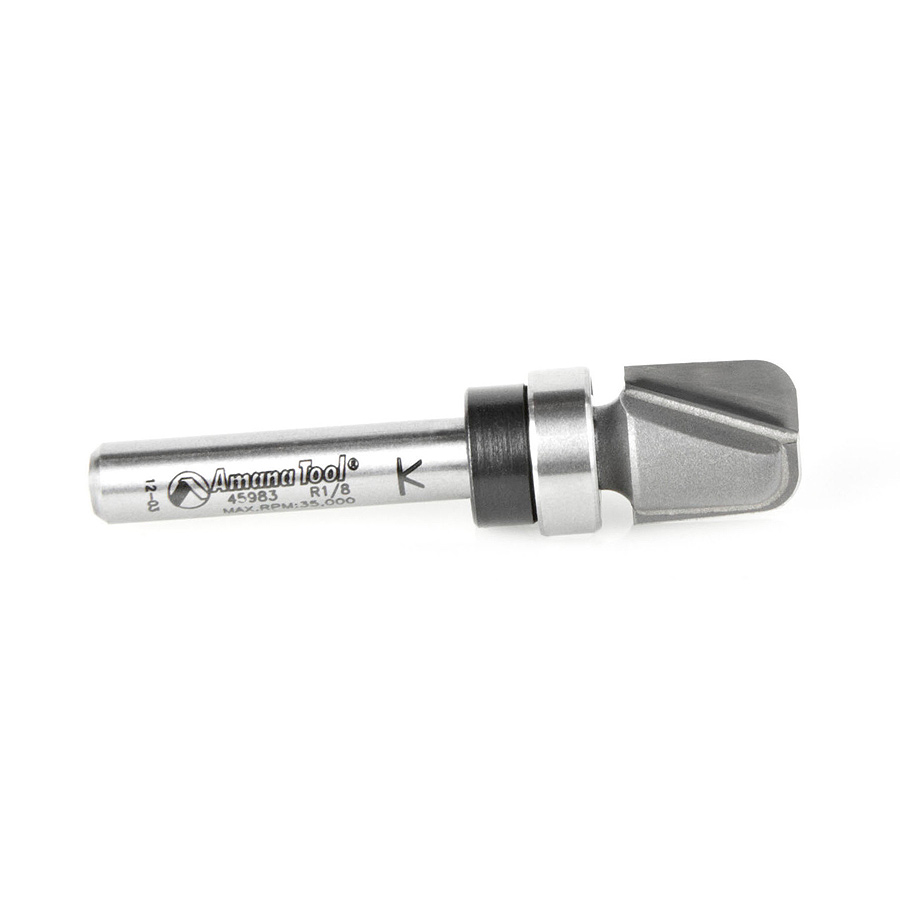

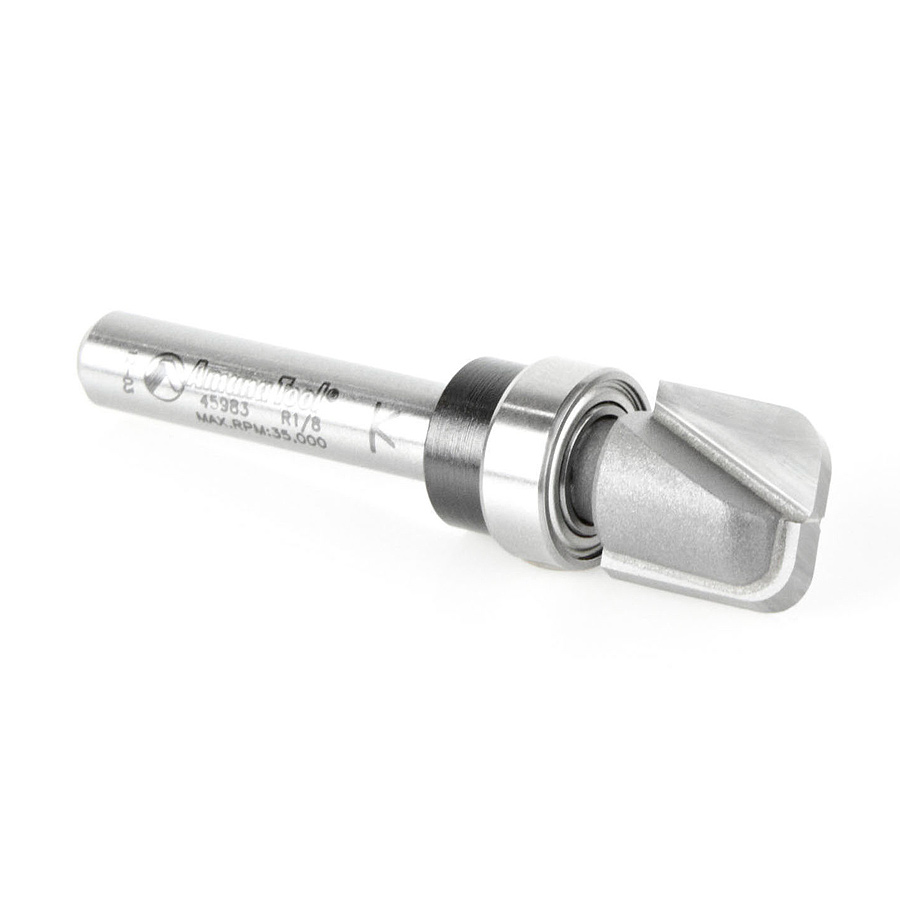

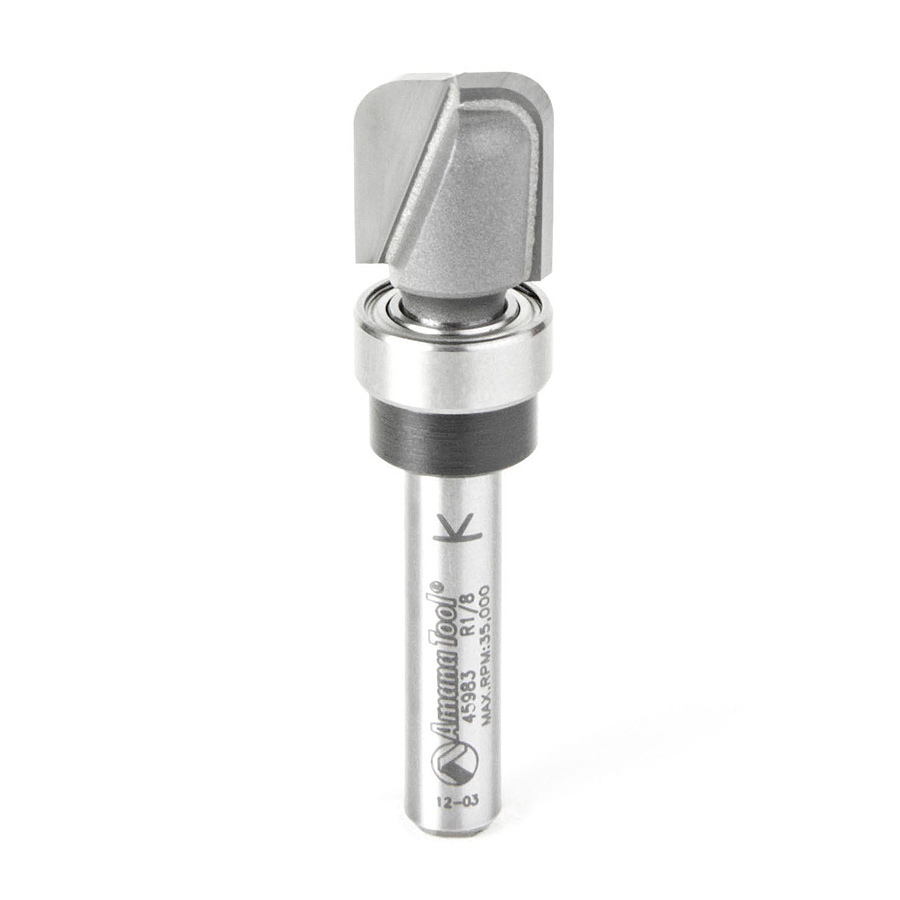

45983 Carbide Tipped Bowl & Tray 1/8 Radius x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB

Amana 45983 Carbide Tipped Bowl & Tray 1/8 Radius x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB

Name: Amana 45983 Carbide Tipped Bowl &amp; Tray 1/8 Radius x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB
SKU: Amana 45983
Availability: InStock

Original price was: $63.70.Current price is: $47.78.

BOWL,TRAY,DISH 3 IN 1 UPPER BB

UPC: 738685859834 SKU: Amana 45983 Categories: Amana Tool, Bowl & Tray Router Bits, Profiling Router Bits, Router Bits

Item Description

For routing solid wood serving trays, flat dishes, shallow bowls, and similar objects, use this 3-in-1 specialty plunging bit. It cuts flat, smooth bottom surfaces, vertical walls, and a transition radius between them, all in one pass. Has a shank-mounted bearing so the bit can be used with a template or pattern.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw	Collar Set Screw Only
45983	47701	47724	67091

Specifications

Diameter (D)	1/2
Radius (R)	1/8
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2-1/8
Replacement Collar	47724
Replacement Bearing	47701
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Replacement Collar	Tool No.
3/4 (19.05mm)	1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2 (50.80mm)	47714	47724	45988
3/4 (19.05mm)	1/4 (6.35mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-5/8	47721	47739	45990
1-1/8	1/4 (6.35mm)	5/8 (15.88mm)	1/2 (12.70mm)	2-5/8	47738	47740	45992
1-1/4	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/2	47756	47740	45994

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
